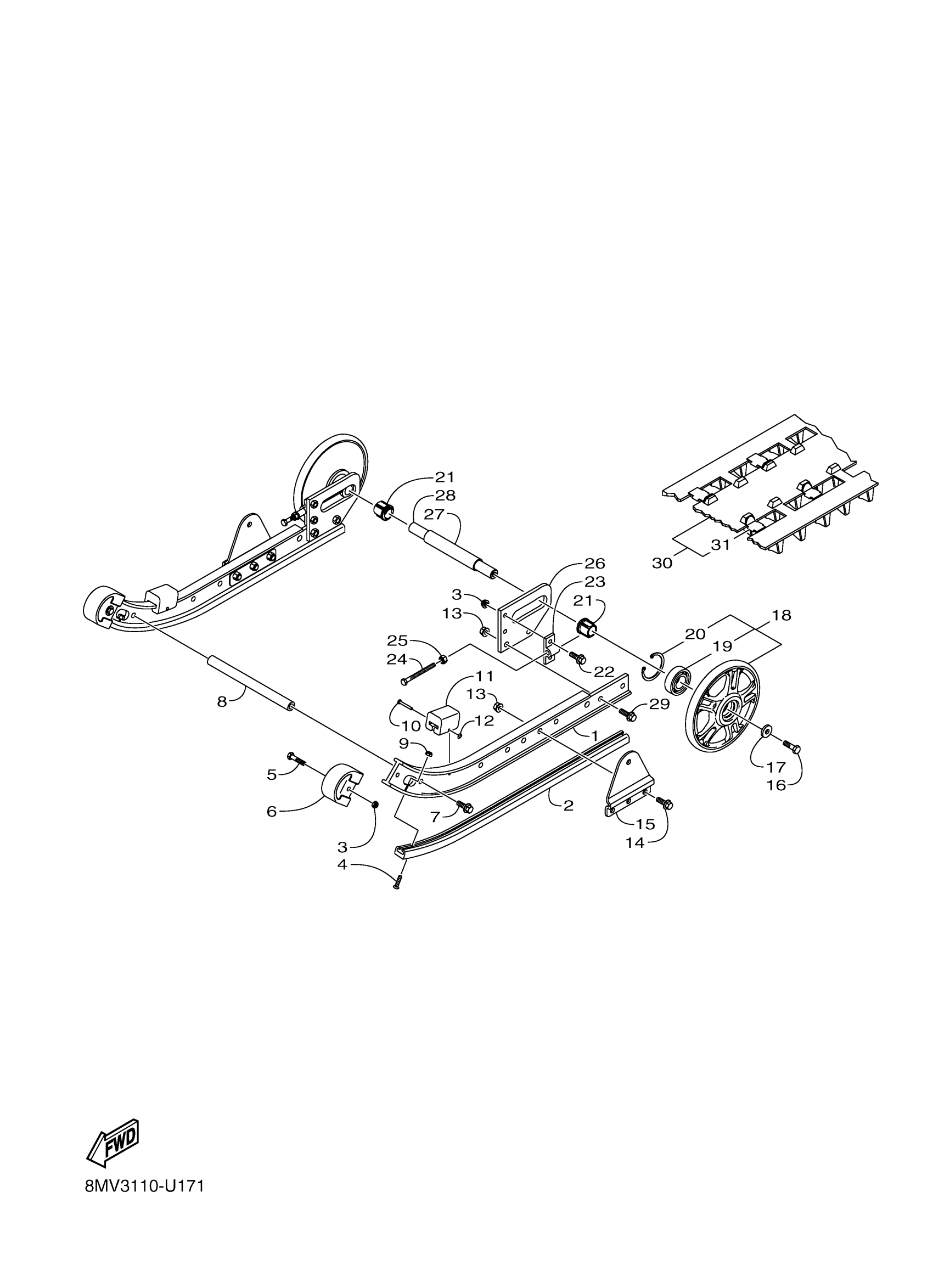

Yamaha SRX1NLL (SRX120R) 8MV5 2020 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

RAIL, SLIDE-FORMED

8JM-G741A-00-00

Unavailable

2

WEARSTRIP,SLIDE RAIL-BLK-Z 120

8JM-G7421-00-00

$29.99

3

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

4

SCREW,MACH-PHFH 1/4-20 X 1 1/8

8JM-RA206-00-00

$1.43

5

BOLT, HEXAGON

8JM-RA115-10-00

Unavailable

6

RUNNER, SLIDING 2

8JM-G7422-00-00

Unavailable

7

SCREW,CAP-HFH 5/16-18X0.875 G5

8JM-RA116-00-00

$3.35

8

SHAFT 3

8JM-G7485-00-00

Unavailable

9

NUT, SELF-LOCKING 1/4-20

8JM-RA311-00-00

Unavailable

10

RIVET, SOLID - 1/8 X 1.50

8JM-RAY02-00-00

$1.06

11

PAD, SHOCK - RUBBER

8JM-G7456-00-00

$7.49

12

NUT, SPRING 1/8

8JM-RA313-00-00

Unavailable

13

NUT,HEX FLG-NY LOCK 5/16-18 GR

8JM-RA303-00-00

Unavailable

14

SCREW-CAP-HFH 5/16-18 X0.875 G

8JM-RA117-00-00

$2.34

15

BRACKET 1

8JM-G7415-00-00

Unavailable

16

BOLT, FLANGE 3/8-16X1

8JM-RA118-00-00

Unavailable

17

WASHER, PLAIN 0.39

8JM-RA409-00-00

Unavailable

18

GUIDE WHEEL ASSY

8JM-G7550-10-00

Unavailable

19

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

Unavailable

20

CIRCLIP, 2

8JM-RAH01-00-00

Unavailable

21

SPACER

8JM-G7341-00-00

Unavailable

22

BOLT, FLANGE 1/4-2

8MV-RA106-00-00

Unavailable

23

PLATE, ADJUSTING

8JM-G8177-00-00

Unavailable

24

HHCS 3/8-16X4.0 THREADED GR5

8JM-RA119-00-00

Unavailable

25

NUT, HEXAGON 3/8-1

8JM-RA314-10-00

Unavailable

26

FRAME, SLIDING C

8JM-G741C-00-00

Unavailable

27

COLLAR, 20

8JM-RA706-00-00

Unavailable

28

AXLE, REAR

8JM-G7521-00-00

Unavailable

29

BOLT, FLANGE 5/16-

8MV-RA117-00-00

Unavailable

30

TRACK ASSY

8MV-G7110-00-00

Unavailable

31

PLATE,RNFCMNT

8JR-G7113-00-00

Unavailable
