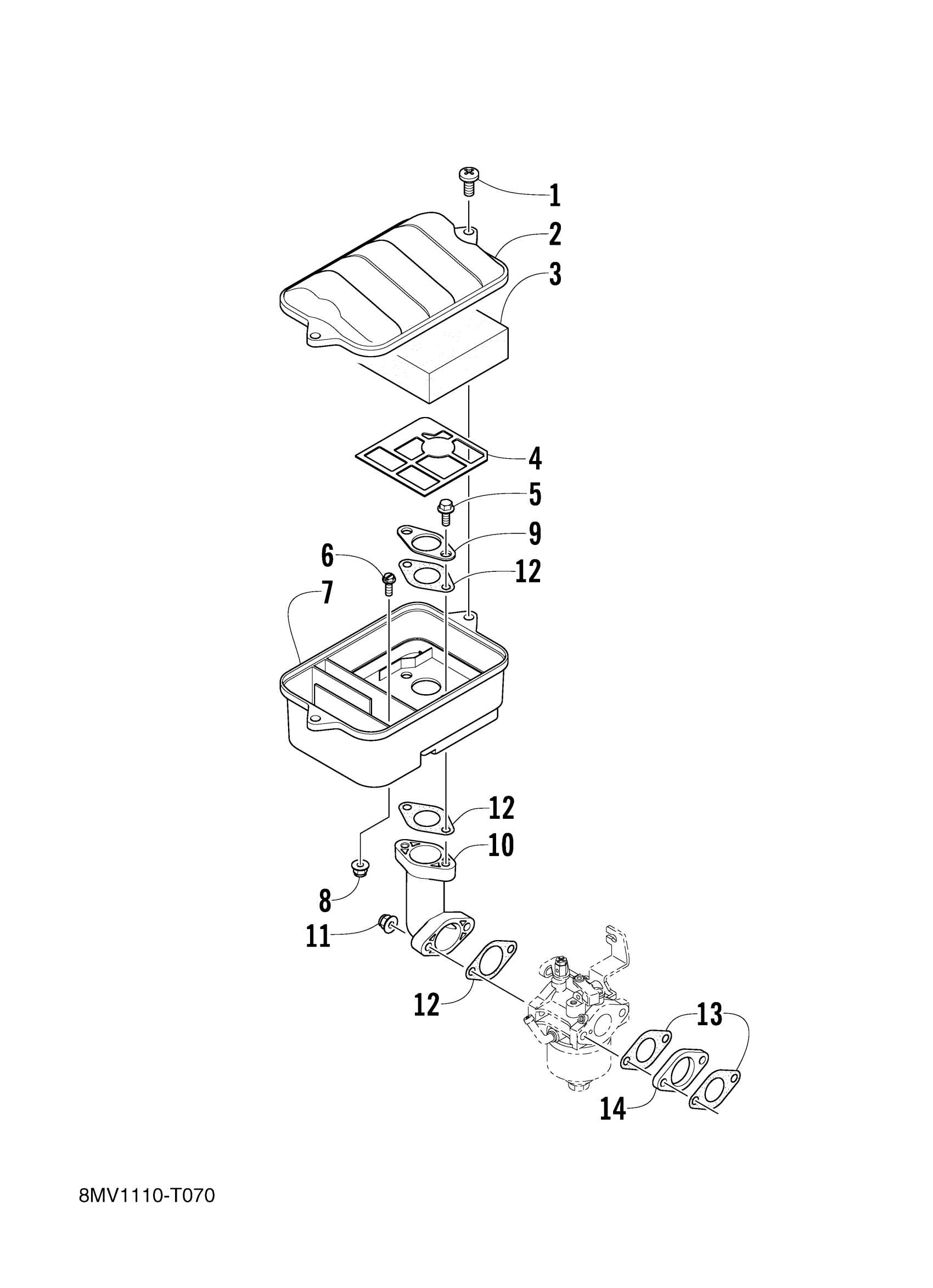

Yamaha SRX1NLL (SRX120R) 8MV5 2020 INTAKE Diagram

SCREW, BINDING (31K)

90154-06014-00

$8.49

CAP, CLEANER CASE 1

7CN-E4412-00-00

$15.49

ELEMENT, AIR CLEANE

7CN-E4451-00-00

$7.99

PLATE,ELEMENT FITTING

7CN-E4468-01-00

$2.60

SCREW,PT THD-TSTRH K60-2.69X16

8JM-RA200-00-00

Unavailable

BOLT, FLANGE M8-1.25X25

8JM-RA102-00-00

Unavailable

CASE, AIR CLEANER 1

7CN-E4411-00-00

$44.99

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

PLATE

7CN-E4477-00-00

Unavailable

INTAKE, TUBE

8JM-E3536-00-00

Unavailable

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

GASKET

7CN-E3567-01-00

$2.70

GASKET

7CL-E3557-01-00

$4.47

JOINT, CARBURETOR 2

7CL-E3596-00-00

Unavailable
