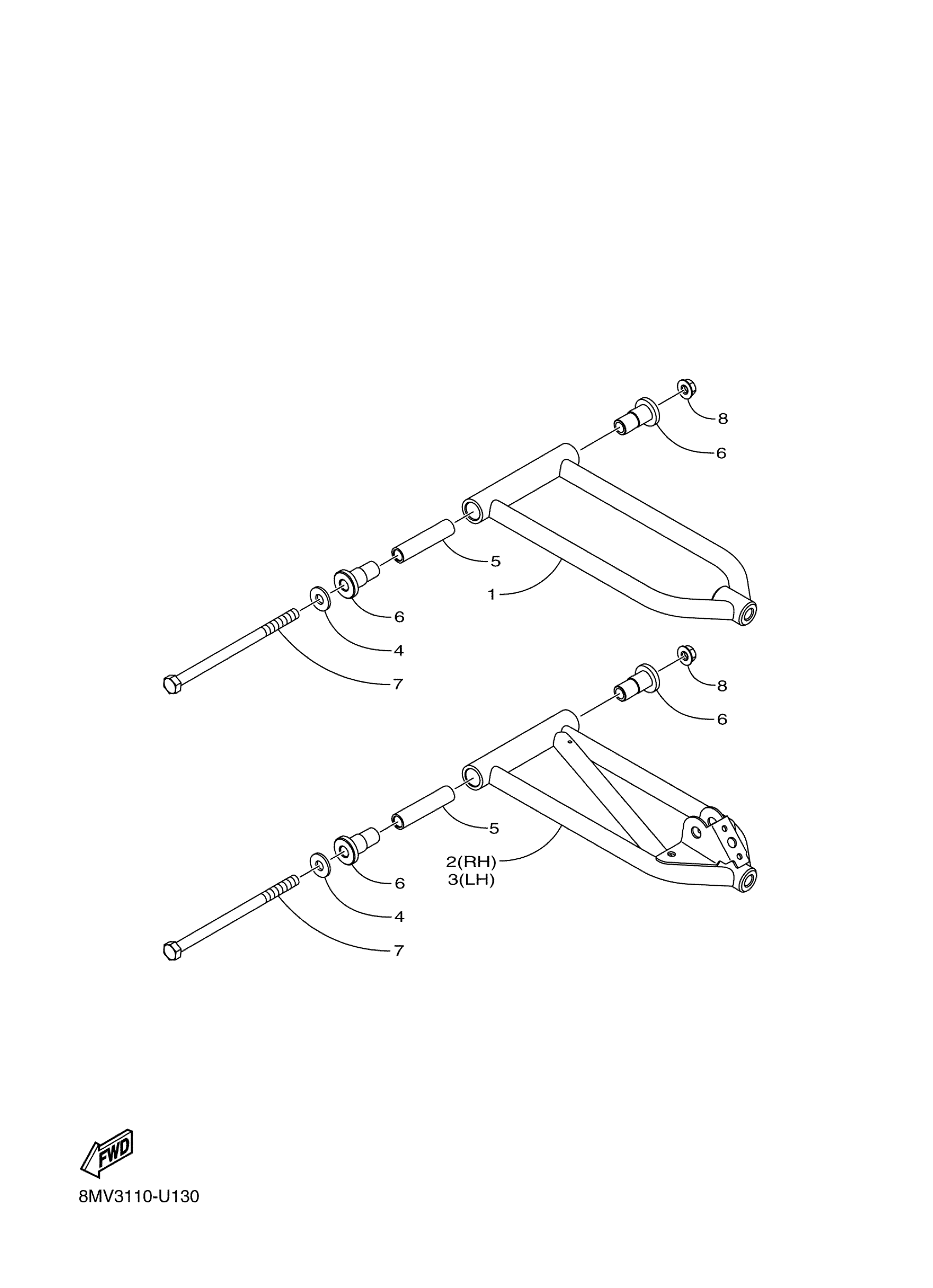

Yamaha SRX1NLL (SRX120R) 8MV5 2020 FRONT SUSPENSION Diagram

#

Description

Price

1

ARM, FRONT UPPER

8MV-F354A-00-00

$87.06

2

ARM,FR. LWR. RH.

8MV-F358A-00-00

$109.17

3

ARM,FR. LWR. LH.

8MV-F357A-00-00

$107.58

4

WASHER,FLAT-3/8X1.000X.063 Z&Y

8JM-RA405-00-00

$0.42

5

COLLAR, 10

8MV-RA703-00-00

$15.56

6

AXLE,PWD CRANK (NO BEARING)

8JM-F3583-00-00

Unavailable

7

BOLT, HEXAGON 3/8-

8JM-RA107-10-00

Unavailable

8

NUT, FLG. LOCKING

8JP-RA358-00-00

$1.02
