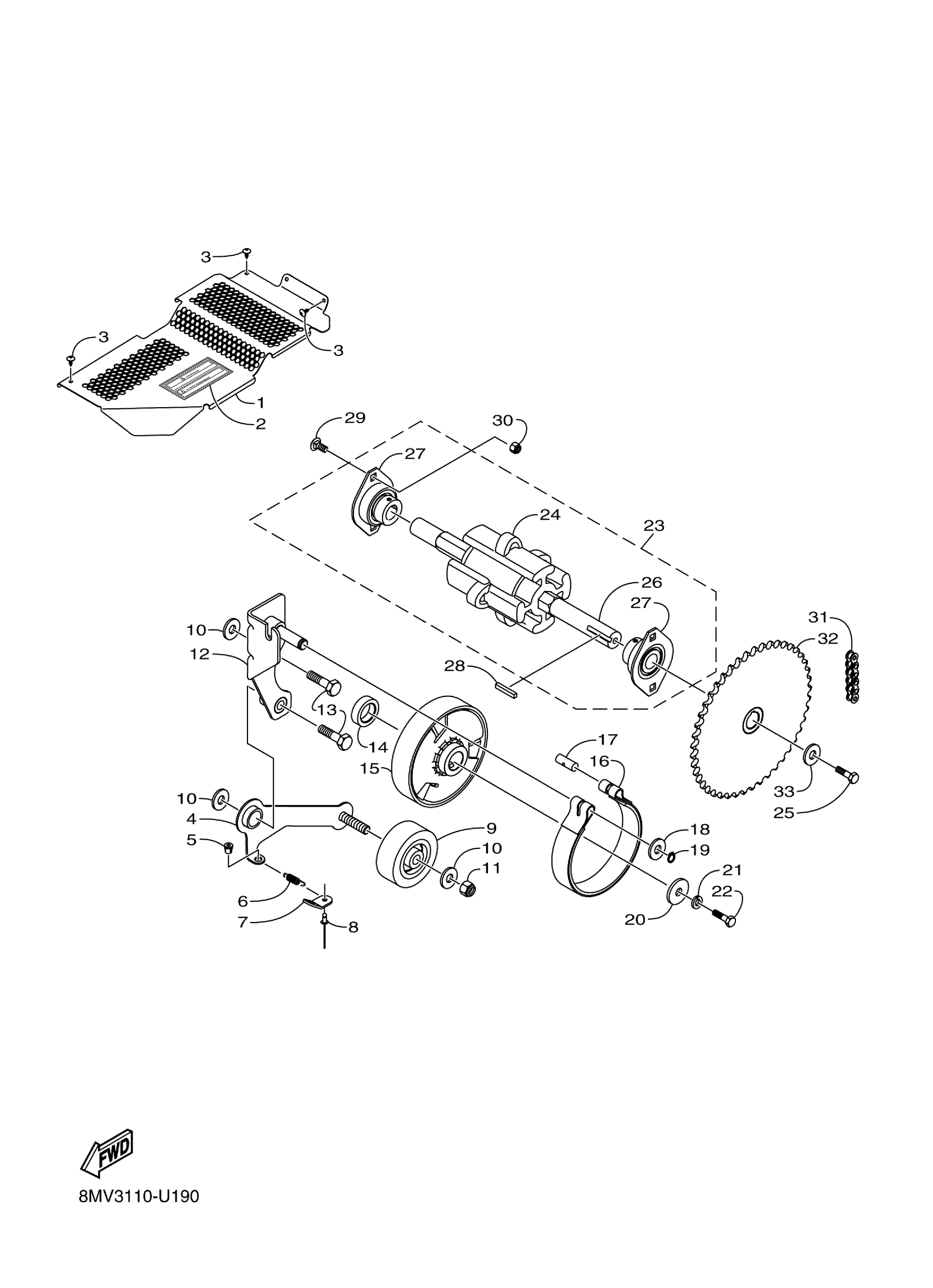

Yamaha SRX1NKL (SRX120R) 8MV3 2019 TRACK DRIVE 1 Diagram

#

Description
Price

1

SHIELD,CLUTCH/BRAKE/MUFFLER-BK

8JM-K7311-01-00

Unavailable

2

LABEL, WARNING 2

8JM-K7762-00-00

Unavailable

3

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

4

HOLDER

8JM-G7613-10-00

$52.99

5

BUSHING, SNAP

8JM-G7538-00-00

Unavailable

6

SPRING, EXHAUST STRAP

8JM-RAD05-00-00

$4.56

7

TAB, SPRING, RETAINER

8JM-G2148-00-00

$5.60

8

RIVET, 5

8JP-RA514-00-00

Unavailable

9

ROLLER, CHAIN, TIGHTENER

8JM-G7429-00-00

$111.99

10

WASHER,FLAT-5/16X.688X.065 Z&Y

8JM-RA403-00-00

Unavailable

11

NUT,HEX THIN LOCK-NYL 5/16-18

8JM-RA302-00-00

Unavailable

12

BRACKET, BRAKE PTD BLK

8JM-F5676-00-00

Unavailable

13

BOLT, HEXAGON 5/16-24X1.5

8JM-RA114-00-00

Unavailable

14

SPACER, CLUTCH - INNER

8JM-RA700-00-00

Unavailable

15

PRIMARY CLUTCH ASS

8JM-E760P-20-00

$146.99

16

BAND,BRAKE

8JM-F5719-00-00

Unavailable

17

. PIN, 1

8JM-RAY00-00-00

Unavailable

18

WASHER,FLAT-3/8X1.000X.063 Z&Y

8JM-RA405-00-00

Unavailable

19

CIRCLIP, 1

8JM-RAH00-00-00

Unavailable

20

WASHER, PLAIN

8JM-RA405-10-00

Unavailable

21

WSHR,SP LK-5/16 .314X.583X.078

8JM-RA402-00-00

Unavailable

22

SCREW,CAP-HH 5/16-24X1.00 G5

8JM-RA103-00-00

Unavailable

23

FRONT AXLE SUB-ASS

8MV-G7501-00-00

Unavailable

24

WHEEL, SPROCKET 1

8MV-G7531-00-00

Unavailable

25

BOLT, FLANGE 5/16-

8MV-RA112-00-00

Unavailable

26

SHAFT, DRIVE SPROCKET-F 120

8JM-G7511-00-00

Unavailable

27

. BEARING, 1

8JM-RAY01-00-00

Unavailable

28

KEY,DRIVE

8JM-G7733-10-00

Unavailable

29

BOLT, 5/16-18X0.75

8JM-RA123-00-00

Unavailable

30

NUT,HEX FLG-NY LOCK 5/16-18 GR

8JM-RA303-00-00

Unavailable

31

CHAIN, ROLLER - DRIVE

8JM-E6139-00-00

Unavailable

32

SPROCKET, CHAIN DR

8JM-G7587-20-00

Unavailable

33

WASHER,FLAT 21/64 X 1-1/2X

8JM-RA404-00-00

Unavailable
