Description

Price

1

.. SHROUD, WITH LABELS (DEEP PURPLISH BLUE SOLID E)

8ML-RAS30-70-00

Unavailable

2

.. SHROUD, WITH LABELS (DEEP PURPLISH BLUE SOLID E)

8ML-RAS30-70-00

Unavailable

3

LABEL, WARNING 1

8MV-K7761-00-00

Unavailable

4

WIRE HARNESS ASSY

8MV-H2590-10-00

Unavailable

5

HEADLIGHT UNIT ASS

8MV-H4310-00-00

Unavailable

6

COVER, SOCKET

8MV-H4397-00-00

Unavailable

7

HOLDER BULB

8JP-H4393-00-00

$26.99

8

BULB, HEADLIGHT

8ML-H4314-00-00

Unavailable

9

CLIP

8MV-H4374-00-00

$0.74

10

SCREW,10-24X2

8MV-RA210-00-00

Unavailable

11

SPRING, COMPRESSIO

8MV-RAD07-00-00

Unavailable

12

STOPPER, SHROUD

8MV-K7118-00-00

$33.99

13

NUT, CLIP M6

8JP-RA354-00-00

$0.96

14

SCREW

8JM-RA209-10-00

$1.96

15

NUT, SELF-LOCKING

8JM-RA319-00-00

Unavailable

16

SCREW, M6-1.0X18

8JP-RA253-00-00

Unavailable

17

NUT, FLG. LOCKING

8MV-RA357-00-00

Unavailable

18

WINDSHIELD COMP.

8ML-K7210-00-00

Unavailable

19

RIVET 2

8ML-RA511-01-00

Unavailable

20

CAP, PLUG

8MV-H2371-00-00

Unavailable

21

NUT, 1

8JM-RA345-00-00

Unavailable

22

LABEL

8MV-K7229-00-00

Unavailable

23

SWITCH ASSY

8JM-H1860-00-00

Unavailable

24

STRAP, HOLD DOWN-HOOD

8JM-K7171-00-00

Unavailable

25

CAP 1

8MV-H245B-00-00

Unavailable

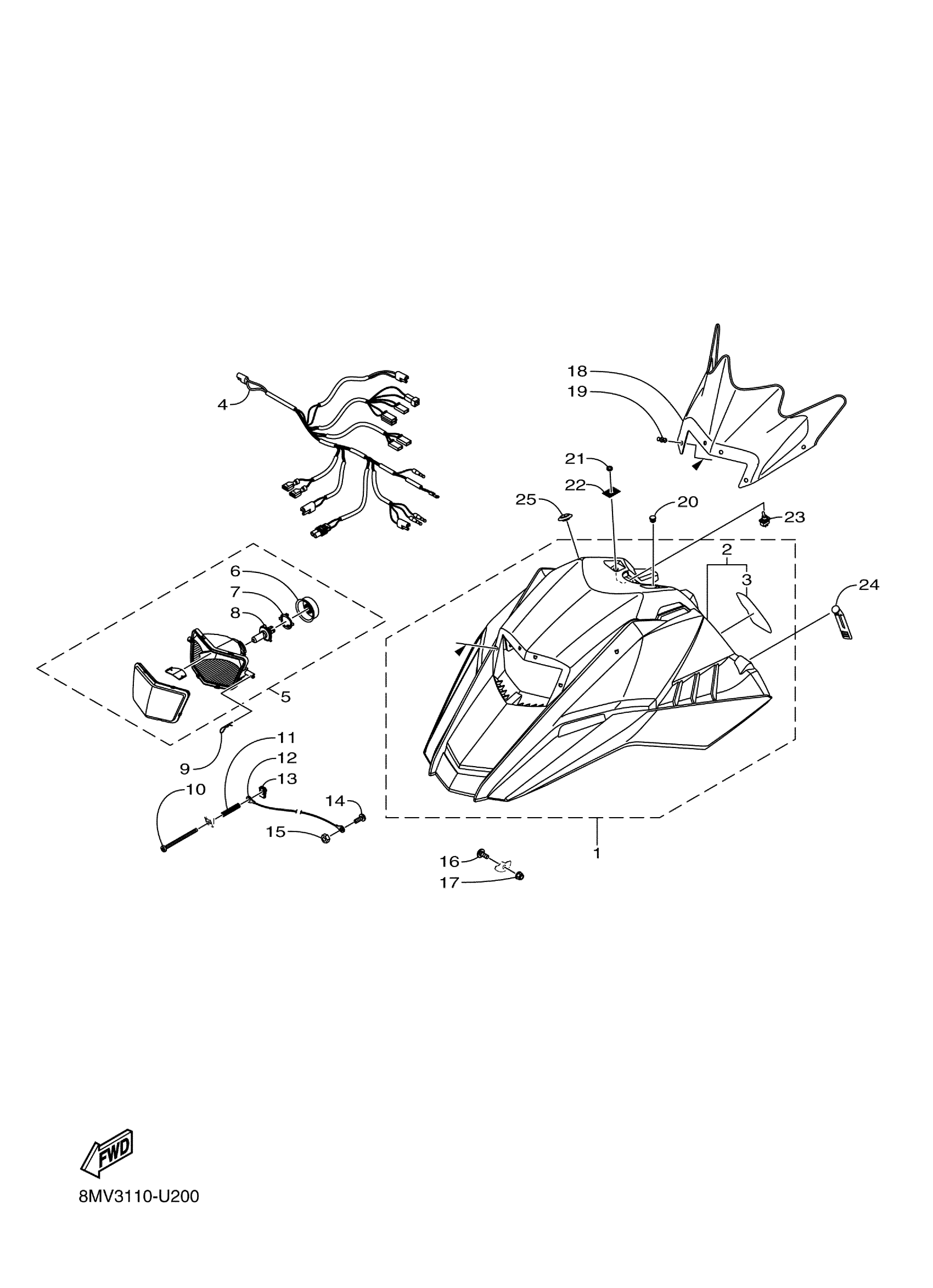

Yamaha SRX1NKL (SRX120R) 8MV3 2019 SHROUD WINDSHIELD Diagram

.. SHROUD, WITH LABELS (DEEP PURPLISH BLUE SOLID E)

.. SHROUD, WITH LABELS (DEEP PURPLISH BLUE SOLID E)

LABEL, WARNING 1

WIRE HARNESS ASSY

HEADLIGHT UNIT ASS

COVER, SOCKET

HOLDER BULB

BULB, HEADLIGHT

CLIP

SCREW,10-24X2

SPRING, COMPRESSIO

STOPPER, SHROUD

NUT, CLIP M6

SCREW

NUT, SELF-LOCKING

SCREW, M6-1.0X18

NUT, FLG. LOCKING

WINDSHIELD COMP.

RIVET 2

CAP, PLUG

NUT, 1

LABEL

SWITCH ASSY

STRAP, HOLD DOWN-HOOD

CAP 1
