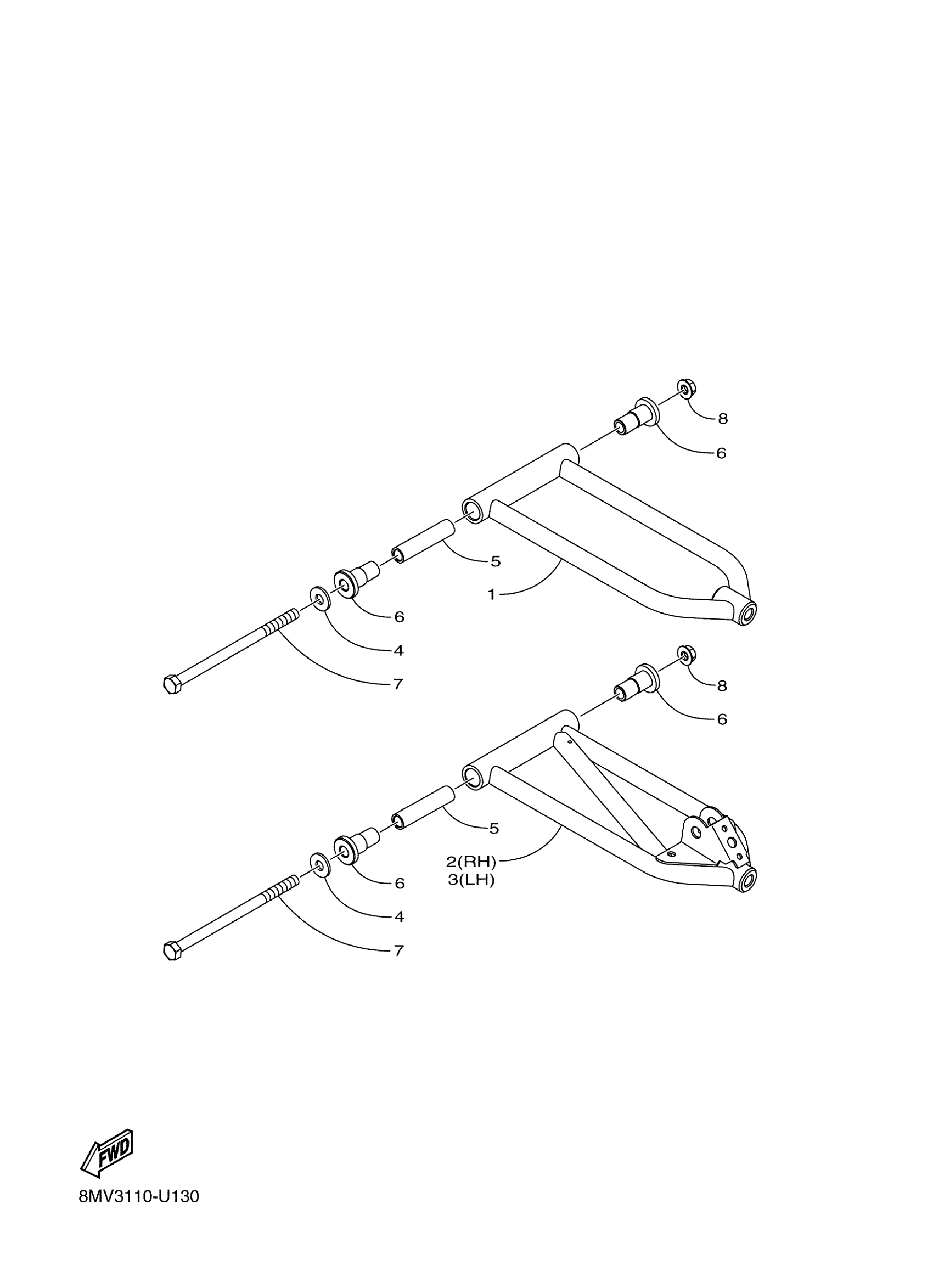

Yamaha SRX1NKL (SRX120R) 8MV3 2019 FRONT SUSPENSION Diagram

ARM, FRONT UPPER

8MV-F354A-00-00

$97.99

ARM,FR. LWR. RH.

8MV-F358A-00-00

$124.99

ARM,FR. LWR. LH.

8MV-F357A-00-00

$127.99

WASHER,FLAT-3/8X1.000X.063 Z&Y

8JM-RA405-00-00

$0.48

COLLAR, 10

8MV-RA703-00-00

$14.99

AXLE,PWD CRANK (NO BEARING)

8JM-F3583-00-00

Unavailable

BOLT, HEXAGON 3/8-

8JM-RA107-10-00

Unavailable

NUT, FLG. LOCKING

8JP-RA358-00-00

$0.80
