Description

Price

1

CRANKCASE 1

7CL-E5111-20-00

Unavailable

2

OIL SEAL

93104-06800-00

$2.87

3

OIL SEAL (25X40X5-256)

93102-25090-00

$14.99

4

BEARING

93306-205XE-00

$60.99

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

GASKET

90430-10801-00

$1.96

7

BOLT, FLANGE

95022-10016-00

$8.49

8

COVER, CRANKCASE 1

7CN-E5411-50-00

Unavailable

9

SHAFT, FLYWHEEL

7CN-E1971-00-00

Unavailable

10

OIL SEAL

93102-25805-00

$10.49

11

PLUG

90338-06800-00

Unavailable

12

GASKET, CRANKCASE COVER 1

7CN-E5451-10-00

$16.49

13

BOLT, FLANGE

95822-08035-00

$4.14

14

PLUG, OIL LEVEL

7BX-E536A-00-00

$10.99

15

GASKET

90430-17801-00

$2.75

16

PLUG, OIL LEVEL

7CN-E5362-00-00

Unavailable

17

O-RING

93210-13801-00

Unavailable

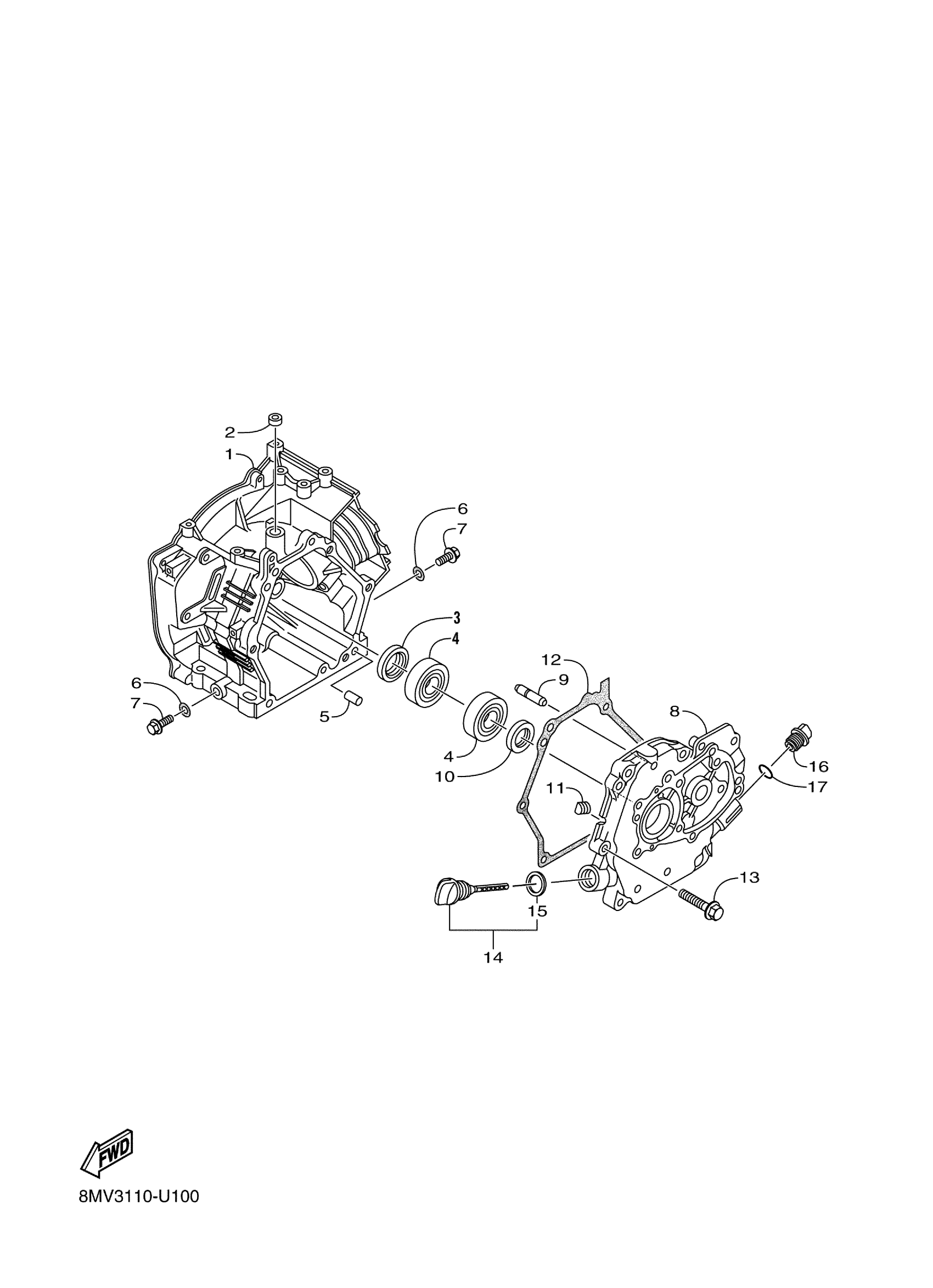

Yamaha SRX1NKL (SRX120R) 8MV3 2019 CRANKCASE Diagram

CRANKCASE 1

OIL SEAL

OIL SEAL (25X40X5-256)

BEARING

PIN, DOWEL(3XW)

GASKET

BOLT, FLANGE

COVER, CRANKCASE 1

SHAFT, FLYWHEEL

OIL SEAL

PLUG

GASKET, CRANKCASE COVER 1

BOLT, FLANGE

PLUG, OIL LEVEL

GASKET

PLUG, OIL LEVEL

O-RING
