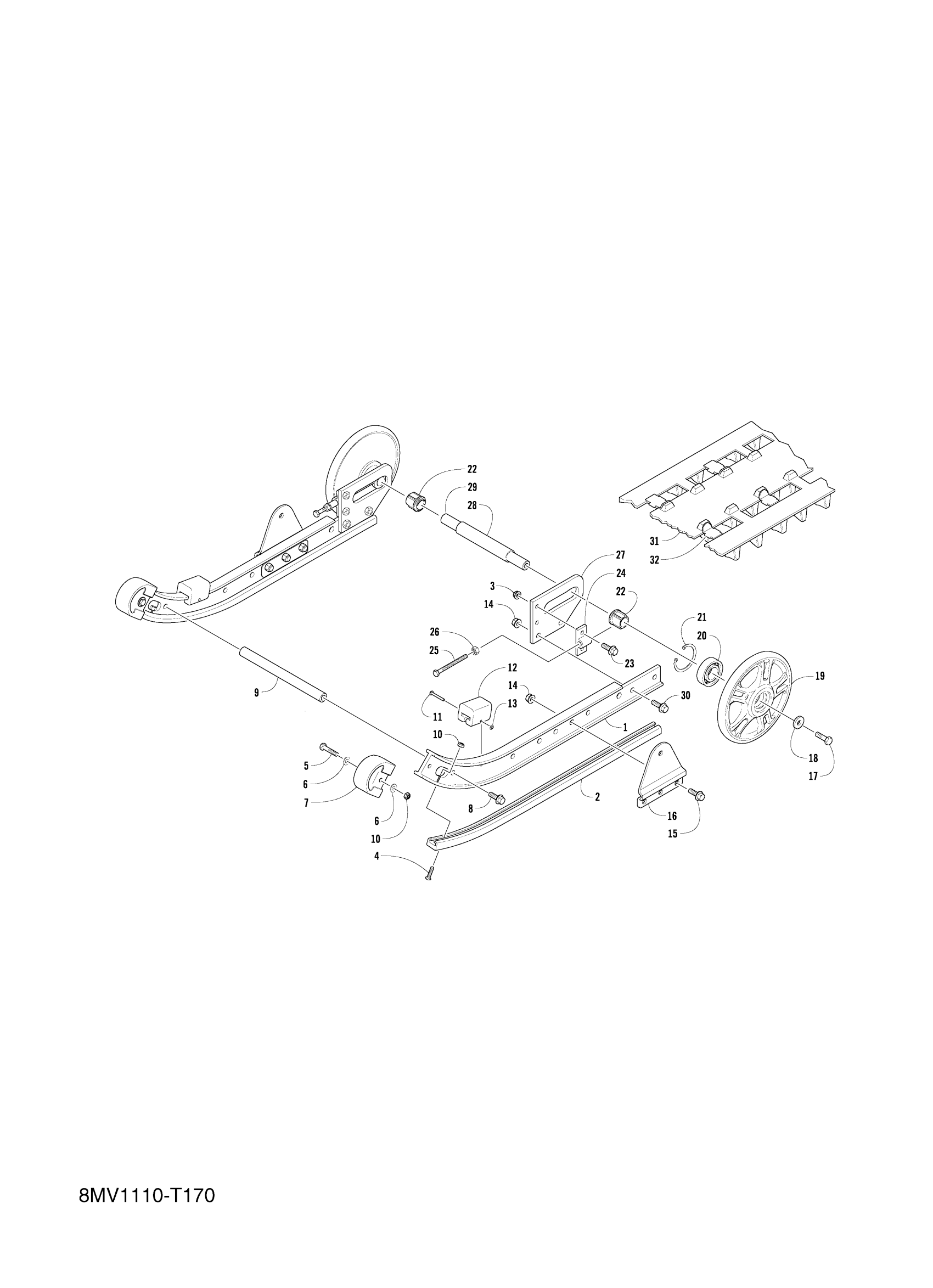

Yamaha SRX1NJW (SRX120) 8MV10 2018 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

RAIL, SLIDE-FORMED

8JM-G741A-00-00

Unavailable

2

WEARSTRIP,SLIDE RAIL-BLK-Z 120

8JM-G7421-00-00

$22.29

3

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.48

4

SCREW,MACH-PHFH 1/4-20 X 1 1/8

8JM-RA206-00-00

$1.15

5

BOLT, HEXAGON 1/4-20X1.125

8JM-RA115-00-00

$0.85

6

WASHER, 1/4X0.625X

8JP-RA441-00-00

$0.24

7

RUNNER, SLIDING 2

8JM-G7422-00-00

$13.97

8

SCREW,CAP-HFH 5/16-18X0.875 G5

8JM-RA116-00-00

$2.74

9

SHAFT 3

8JM-G7485-00-00

$20.00

10

NUT, SELF-LOCKING 1/4-20

8JM-RA311-00-00

$0.42

11

RIVET, SOLID - 1/8 X 1.50

8JM-RAY02-00-00

$1.02

12

PAD, SHOCK - RUBBER

8JM-G7456-00-00

$6.54

13

NUT, SPRING 1/8

8JM-RA313-00-00

$0.56

14

NUT,HEX FLG-NY LOCK 5/16-18 GR

8JM-RA303-00-00

Unavailable

15

SCREW-CAP-HFH 5/16-18 X0.875 G

8JM-RA117-00-00

$1.40

16

BRACKET 1

8JM-G7415-00-00

Unavailable

17

BOLT, FLANGE 3/8-16X1

8JM-RA118-00-00

$2.59

18

WASHER, PLAIN 0.39

8JM-RA409-00-00

$1.55

19

WHEEL,IDL-5.63 W.787"ID WHITE

8JM-G7550-00-00

Unavailable

20

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

Unavailable

21

CIRCLIP, 2

8JM-RAH01-00-00

Unavailable

22

SPACER

8JM-G7341-00-00

Unavailable

23

BOLT, FLANGE 1/4-2

8MV-RA106-00-00

Unavailable

24

PLATE, ADJUSTING

8JM-G8177-00-00

Unavailable

25

HHCS 3/8-16X4.0 THREADED GR5

8JM-RA119-00-00

Unavailable

26

NUT, HEXAGON 3/8-1

8JM-RA314-10-00

Unavailable

27

FRAME, SLIDING C

8JM-G741C-00-00

Unavailable

28

COLLAR, 20

8JM-RA706-00-00

Unavailable

29

AXLE, REAR

8JM-G7521-00-00

$45.85

30

BOLT, FLANGE 5/16-

8MV-RA117-00-00

Unavailable

31

TRACK ASSY

8MV-G7110-00-00

Unavailable

32

. METAL, GUIDE

8JM-G7119-00-00

$17.94
