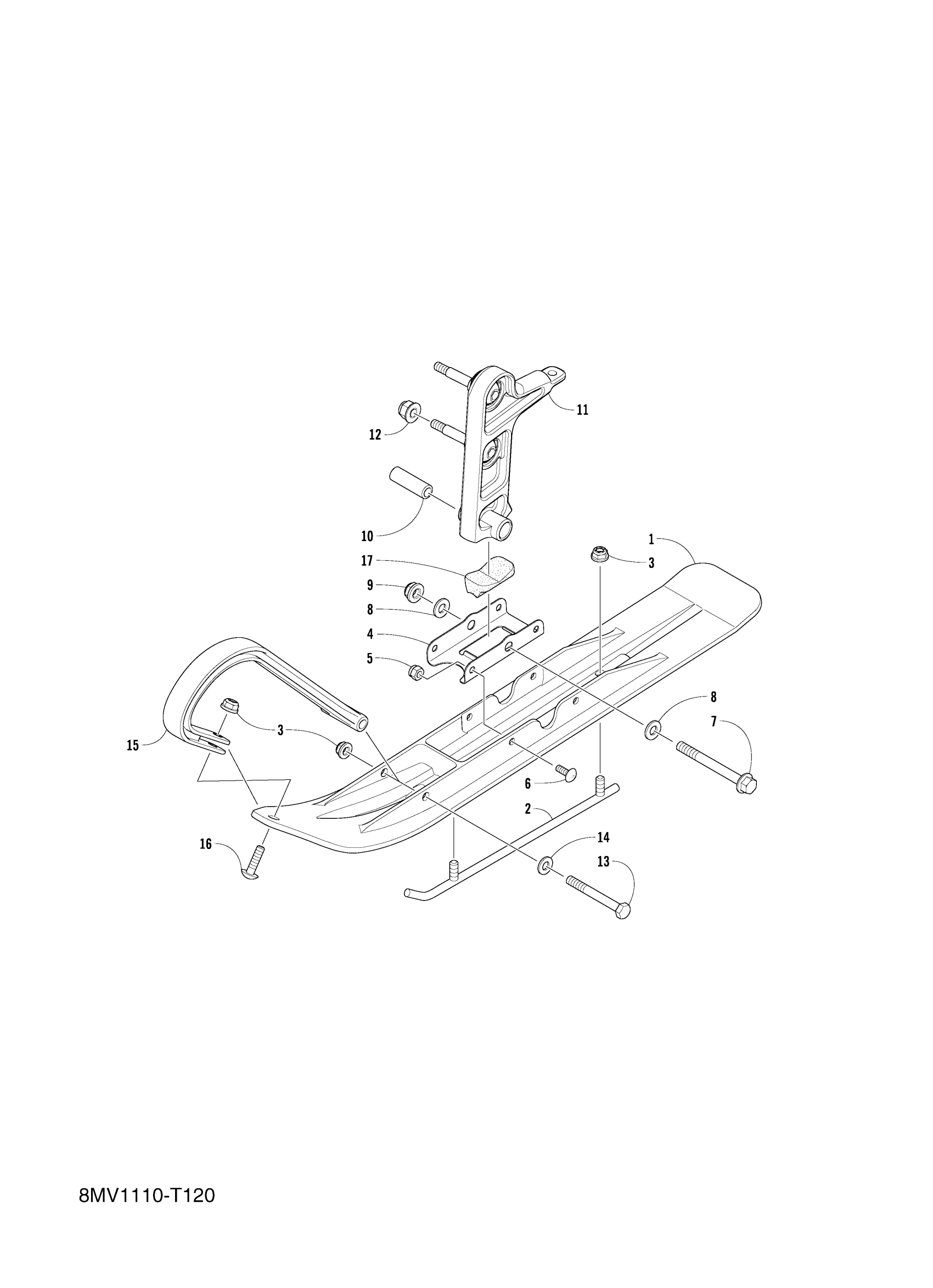

Yamaha SRX1NJW (SRX120) 8MV10 2018 SKI Diagram

SKI 1

8MV-F3711-00-00

Unavailable

SKAG-PTD BLK

8JM-F3731-00-00

$26.99

NUT,HEX FLG-NY LOCK 5/16-18 GR

8JM-RA303-00-00

Unavailable

SADDLE 1

8MV-F3766-00-00

$23.99

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

SCREW,MACH-TSTRH 1/4-20X3/4 GR

8JM-RA204-00-00

$3.66

BOLT, FLANGE 3/8-1

8MV-RA108-00-00

$4.56

WASHER,FLAT-3/8X1.000X.063 Z&Y

8JM-RA405-00-00

$0.48

NUT, FLG. LOCKING

8JP-RA358-00-00

$0.80

COLLAR, 9

8ML-RA702-00-00

$7.49

KNUCKLE, STEERING

8MV-F3511-00-00

Unavailable

KNUCKLE, STEERING

8MV-F3521-00-00

$197.99

NUT, FLG. LOCKING

8MV-RA358-00-00

Unavailable

SCREW,CAP-HH5/16-18X3.00-G5 ZY

8JM-RA111-00-00

$1.22

WASHER,FLAT-5/16X.688X.065 Z&Y

8JM-RA403-00-00

Unavailable

HANDLE, SKI-MOLDED BLACK

8JM-F3712-00-00

Unavailable

SCREW, 5/16-18X1

8JM-RA205-00-00

Unavailable

STOPPER 1

8MV-F3743-00-00

Unavailable
