Description

Price

1

.. SHROUD, WITH LABELS (DEEP PURPLISH BLUE SOLID E)

8ML-RAS30-70-00

Unavailable

2

.. SHROUD, WITH LABELS (DEEP PURPLISH BLUE SOLID E)

8ML-RAS30-70-00

Unavailable

3

WIRE HARNESS ASSY

8MV-H2590-10-00

Unavailable

4

HEADLIGHT UNIT ASS

8MV-H4310-00-00

Unavailable

5

COVER, SOCKET

8MV-H4397-00-00

Unavailable

6

HOLDER BULB

8JP-H4393-00-00

$26.99

7

BULB, HEADLIGHT

8ML-H4314-00-00

Unavailable

8

CLIP

8MV-H4374-00-00

$0.74

9

SCREW,10-24X2

8MV-RA210-00-00

Unavailable

10

SPRING, COMPRESSIO

8MV-RAD07-00-00

Unavailable

11

STOPPER, SHROUD

8MV-K7118-00-00

$33.99

12

NUT, CLIP M6

8JP-RA354-00-00

$0.96

13

SCREW, 10-24X1/2

8JM-RA209-00-00

Unavailable

14

NUT, SELF-LOCKING

8JM-RA319-00-00

Unavailable

15

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.86

16

NUT, FLG. LOCKING

8MV-RA357-00-00

Unavailable

17

WINDSHIELD COMP.

8ML-K7210-00-00

Unavailable

18

RIVET 2

8ML-RA511-01-00

Unavailable

19

CAP, PLUG

8MV-H2371-00-00

Unavailable

20

NUT, 1

8JM-RA345-00-00

Unavailable

21

LABEL

8MV-K7229-00-00

Unavailable

22

SWITCH ASSY

8JM-H1860-00-00

Unavailable

23

LABEL, WARNING 1

8MV-K7761-00-00

Unavailable

24

STRAP, HOLD DOWN-HOOD

8JM-K7171-00-00

Unavailable

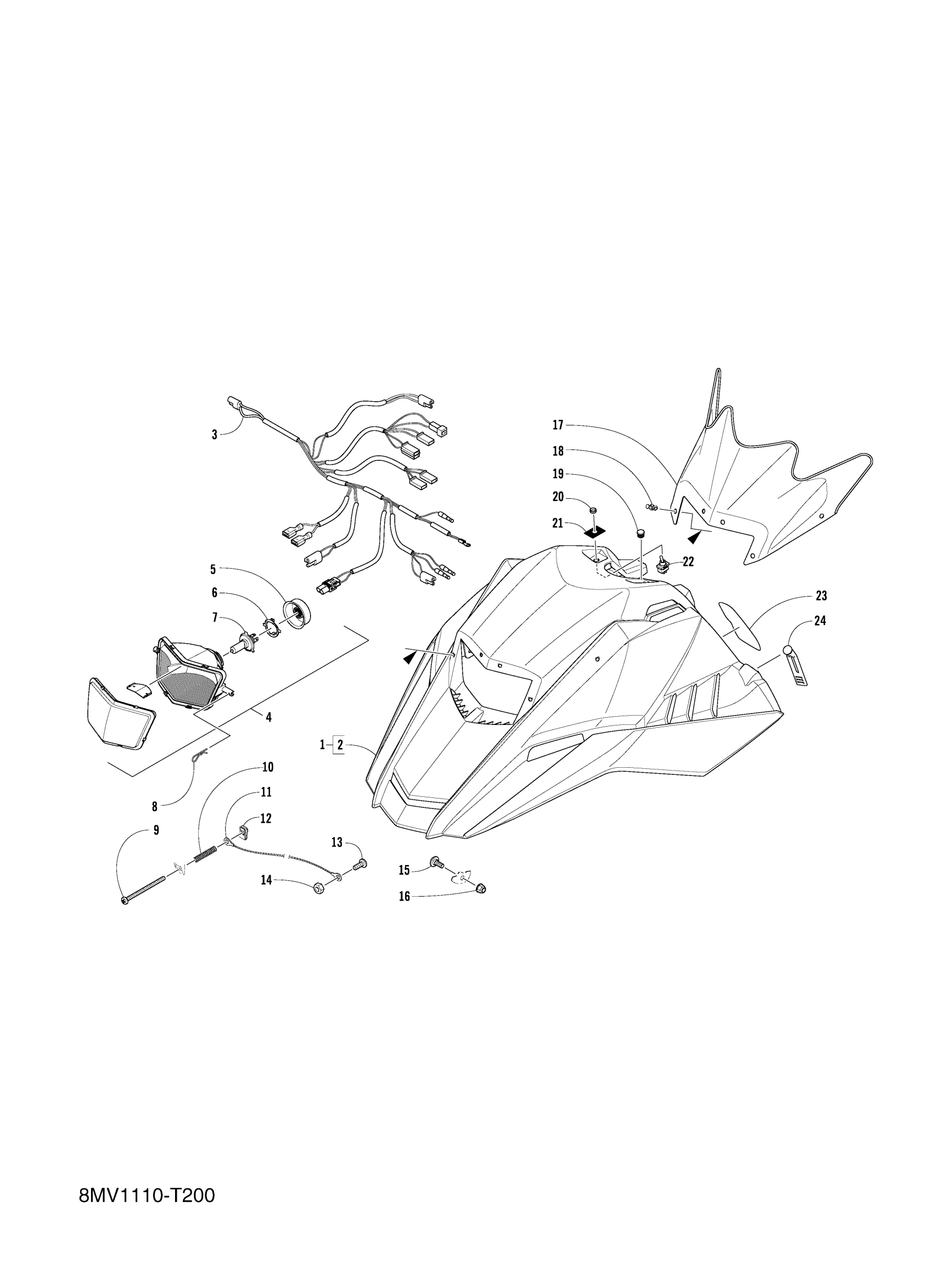

Yamaha SRX1NJW (SRX120) 8MV10 2018 SHROUD WINDSHIELD Diagram

.. SHROUD, WITH LABELS (DEEP PURPLISH BLUE SOLID E)

.. SHROUD, WITH LABELS (DEEP PURPLISH BLUE SOLID E)

WIRE HARNESS ASSY

HEADLIGHT UNIT ASS

COVER, SOCKET

HOLDER BULB

BULB, HEADLIGHT

CLIP

SCREW,10-24X2

SPRING, COMPRESSIO

STOPPER, SHROUD

NUT, CLIP M6

SCREW, 10-24X1/2

NUT, SELF-LOCKING

SCREW, M6-1.0X18

NUT, FLG. LOCKING

WINDSHIELD COMP.

RIVET 2

CAP, PLUG

NUT, 1

LABEL

SWITCH ASSY

LABEL, WARNING 1

STRAP, HOLD DOWN-HOOD
