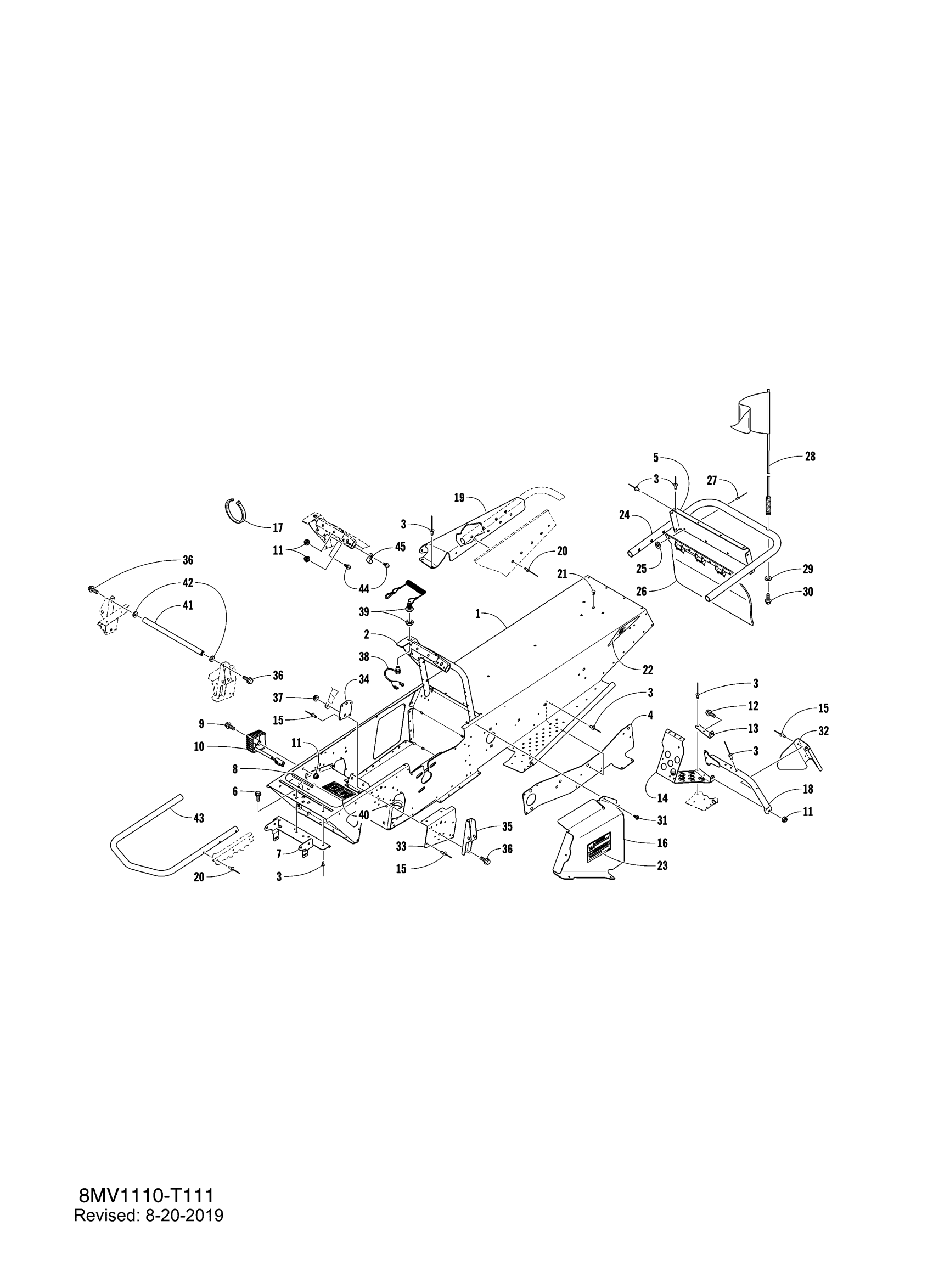

Yamaha SRX1NJW (SRX120) 8MV10 2018 FRAME Diagram
#
1
FRAME COMP.
8MV-F1910-00-00
Unavailable
2
. BULKHEAD
8MV-F191A-00-00
Unavailable
3
RIVET, 5
8JP-RA514-00-00
Unavailable
4
. BRACKET, MAIN TRACK 1
8JM-F1943-00-00
Unavailable
4
. BRACKET, MAIN TRACK 2
8JM-F1953-00-00
Unavailable
5
REINEFORCEMENT, FRAME REAR 1
8MV-F1923-10-00
Unavailable
6
SCREW, TAPPING 1/4-20X0.5
8JM-RA202-00-00
Unavailable
7
FRAME, FRONT END
8ML-F191D-00-00
Unavailable
8
TRIM (3 FEET)
8JP-F15B3-00-00
Unavailable
9
BOLT, FLANGE 1/4-2
8JM-RA138-00-00
Unavailable
10
VOLTAGE REGULATOR ASSY
8JM-H1910-00-00
Unavailable
11
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
12
SCREW,CAP-HFH 1/4-20X0.750 Z&Y
8JM-RA106-00-00
Unavailable
13
BRKT,SUPPORT-FOOTREST-L/H-PTD
8JM-F1921-00-00
Unavailable
13
BRKT,SUPPORT-FOOTREST-R/H-PTD
8JM-F1931-00-00
Unavailable
14
FOOTREST 1
8JM-F7411-00-00
Unavailable
14
FOOTREST - RH
8JM-F7421-00-00
Unavailable
15
RIVET, 6
8JP-RA515-00-00
Unavailable
16
COVER,SPROCKET-DRIVEN-PTD BLK
8JM-E3327-00-00
Unavailable
17
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
18
SUPPORT, FOOTREST-PTD BLK-LH
8JM-F1929-00-00
Unavailable
18
SUPPORT,FOOTREST-PTD BLK-RH
8JM-F192E-00-00
Unavailable
19
BUMPER, REAR 3
8JM-K7543-00-00
Unavailable
19
BUMPER, REAR 4
8JM-K7544-00-00
Unavailable
20
RIVET, 9
8JP-RA518-00-00
Unavailable
21
PLUG, HOLE-3/8 DIA-BLK
8JM-RA601-00-00
Unavailable
22
LABEL 1
8JP-F151A-10-00
Unavailable
23
LABEL, WARNING 2
8JM-K7762-00-00
Unavailable
24
BUMPER, REAR 1
8JM-K7541-00-00
Unavailable
25
WASHER,FLAT .194X.50X.048
8JM-RA411-00-00
Unavailable
26
FLAP
8JM-K7595-00-00
Unavailable
27
RIVET, 10
8JP-RA519-00-00
Unavailable
28
FLAG, SAFETY-ASSY
8JM-RAY04-01-00
Unavailable
29
WASHER,FLAT-5/16X.688X.065 Z&Y
8JM-RA403-00-00
Unavailable
30
SCREW,CAP-HFH 5/16-18X1.25 G5
8JM-RA104-00-00
Unavailable
31
SCREW,SELF TAP-HWH10X1/2 AB ZY
8JM-RA203-00-00
Unavailable
32
COVER 1
8MV-F198F-00-00
Unavailable
32
COVER 2
8MV-F198G-00-00
Unavailable
33
BRACKET 3
8MV-F196F-00-00
Unavailable
33
BRACKET 4
8MV-F196G-00-00
Unavailable
34
PLATE 1
8MV-F191B-00-00
Unavailable
35
HOLDER, ABSORBER
8MV-F376J-00-00
Unavailable
36
SCREW-CAP-HFH 5/16-18 X0.875 G
8JM-RA117-00-00
Unavailable
37
NUT,HEX FLG-NY LOCK 5/16-18 GR
8JM-RA303-00-00
Unavailable
38
.. CAP, SWITCH
8JM-H2552-00-00
Unavailable
39
STOP SWITCH ASSY
8JM-H2550-00-00
Unavailable
40
LABEL, CAUTION
8MV-E417F-00-00
Unavailable
41
AXLE, IDLER
8JM-G7465-00-00
Unavailable
42
WASHER, 9
8MV-RA466-00-00
Unavailable
43
BUMPER, FRONT 1
8MV-K7511-00-00
Unavailable
44
BOLT, FLANGE 1/4-2
8MV-RA106-00-00
Unavailable
45
CLAMP, 2
8JM-RAB01-10-00
Unavailable
