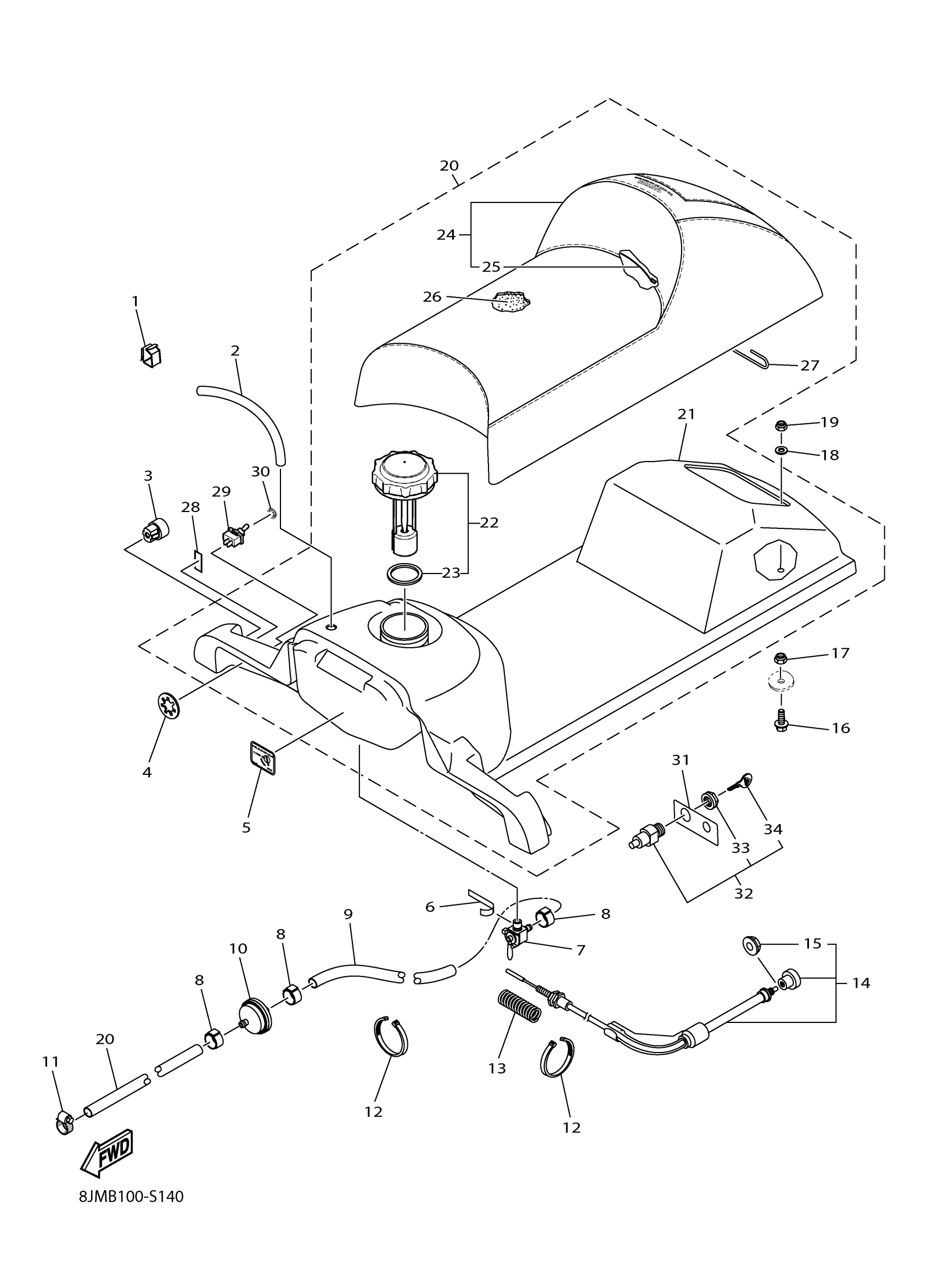

Yamaha SRX120HL (SRX120) 8JMB 2017 SEAT Diagram
#
1
CLIP, 1
8JM-RAC00-00-00
Unavailable
2
HOSE, 13 (25 FEET)
8JM-RA902-10-00
$180.99
3
BUSHING, RECOIL
8JM-F1339-00-00
Unavailable
4
NUT
8JM-RA309-00-00
Unavailable
5
LABEL
8JM-F415C-00-00
Unavailable
6
TAPE, TEFLON-ROLL
8JM-F744H-00-00
Unavailable
7
FUEL COCK COMP.
8JM-F4540-00-00
Unavailable
8
CLAMP, HOSE-10.8 MM TO 13.3 MM
8JM-RAC02-00-00
Unavailable
9
HOSE, 13 (25 FEET)
8JM-RA902-10-00
$180.99
10
FILTER,FUEL
8JM-F4501-01-00
$23.99
11
CLAMP, HOSE #4 (6202)
8JM-RAA00-00-00
$3.50
12
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
13
SPRING, COMPRESSION 2
8JM-RAD06-00-00
Unavailable
14
CABLE, CHOKE-120
8JM-F6330-00-00
Unavailable
15
NUT, PLASTIC-CHOKE
8JM-RA310-00-00
$2.34
16
SCREW,CAP-HFH 1/4-20X0.750 Z&Y
8JM-RA106-00-00
Unavailable
17
NUT, SELF-LOCKING 1/4-20
8JM-RA311-00-00
Unavailable
18
WASHER, PLAIN 1/4
8JM-RA406-00-00
Unavailable
19
NUT, CAP 1/4-20
8JM-RA312-00-00
Unavailable
20
SINGLE SEAT ASSY
8JM-F4710-10-00
Unavailable
21
TANK, FUEL
8JM-F4111-10-00
Unavailable
22
. BODY, CAP
8JM-F4611-00-00
Unavailable
23
SEAL, GAS CAP
8JM-F4641-00-00
Unavailable
24
. SEAT COVER COMP
8JM-F470F-00-00
Unavailable
25
.. WIRE
8JM-F473J-00-00
Unavailable
26
. CUSHION
8JM-F4713-00-00
Unavailable
27
. WIRE
8JM-F473W-00-00
Unavailable
28
LABEL
8JM-F178A-00-00
Unavailable
29
SWITCH ASSY
8JM-H1860-00-00
Unavailable
30
NUT, 1
8JM-RA345-00-00
Unavailable
31
INDICATOR 1
8JM-K7741-00-00
Unavailable
32
SWITCH, IGNITION
8JM-H194E-00-00
Unavailable
33
NUT,RETAINING-5/8-32UN2B BLK
8JM-RA317-00-00
Unavailable
34
KEY, IGNITION
8JM-H2511-00-00
Unavailable
