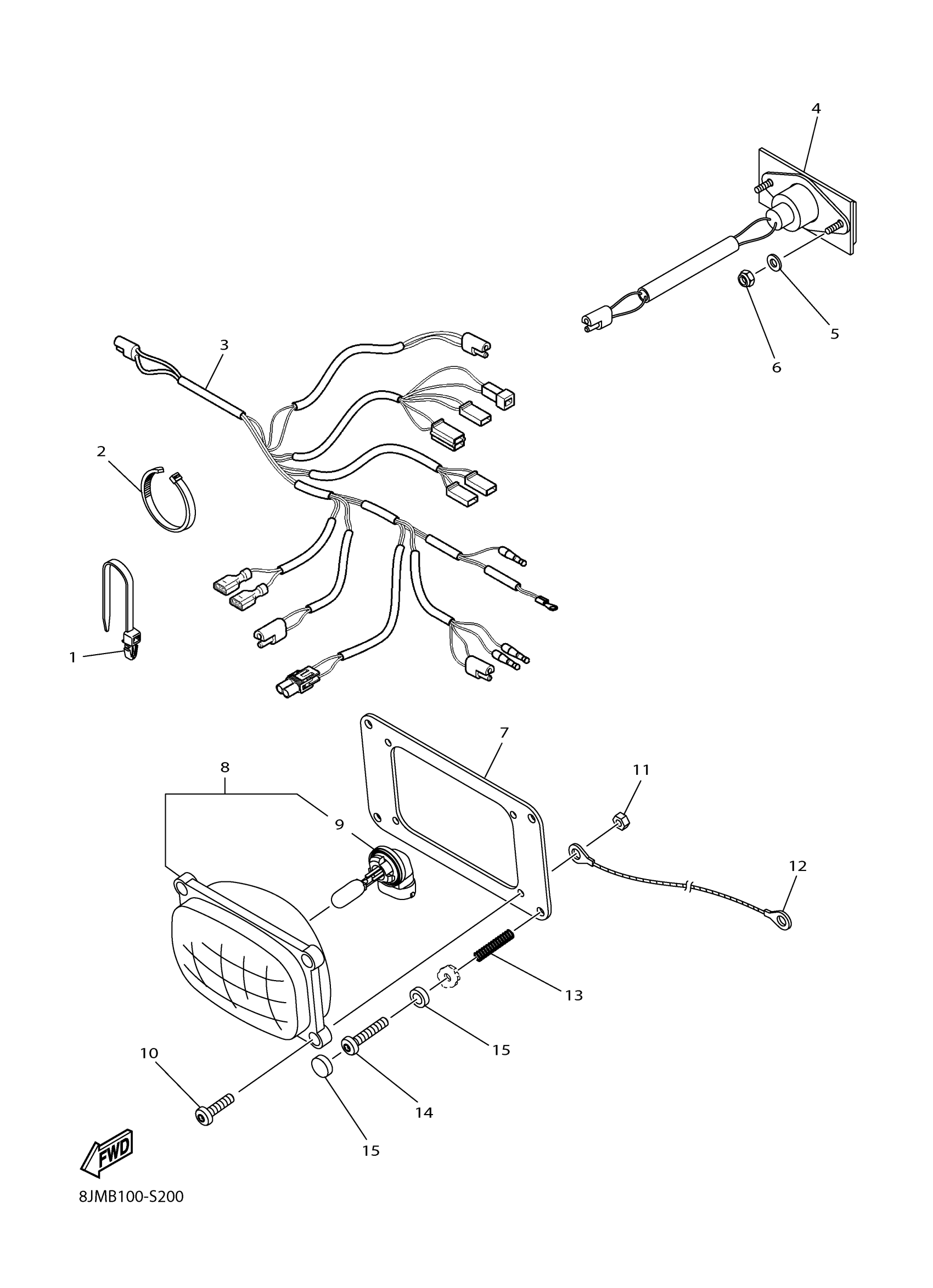

Yamaha SRX120HL (SRX120) 8JMB 2017 HEAD TAIL LIGHT Diagram

#

Description
Price

1

CABLE TIE,PUSH MOUNT-XMAS CLIP

8JM-RAB02-00-00

Unavailable

2

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

3

WIRE HARNESS ASSY

8JM-H2590-10-00

Unavailable

4

TAILLIGHT UNIT ASS

8JM-H4710-10-00

$62.99

5

WASHER, FLAT M5 5.

8JM-RA465-00-00

Unavailable

6

NUT, FLG. LOCKING

8JP-RA363-00-00

$1.16

7

STAY, HEADLIGHT 1

8JM-H4118-00-00

Unavailable

8

HEADLIGHT UNIT ASSY

8JM-H4310-00-00

Unavailable

9

. BULB, HEADLIGHT (12V-375W)

8JM-H4314-00-00

Unavailable

10

SCREW, 10-24X1/2

8JM-RA209-00-00

Unavailable

11

NUT, SELF-LOCKING

8JM-RA319-00-00

Unavailable

12

STOPPER, SHROUD

8JM-K7118-00-00

Unavailable

13

SPRING, COMPRESSION 3

8JM-RAD07-00-00

Unavailable

14

SCREW,10-24X2

8JM-RA210-00-00

Unavailable

15

PLUG, 4

8JM-RA603-00-00

Unavailable
