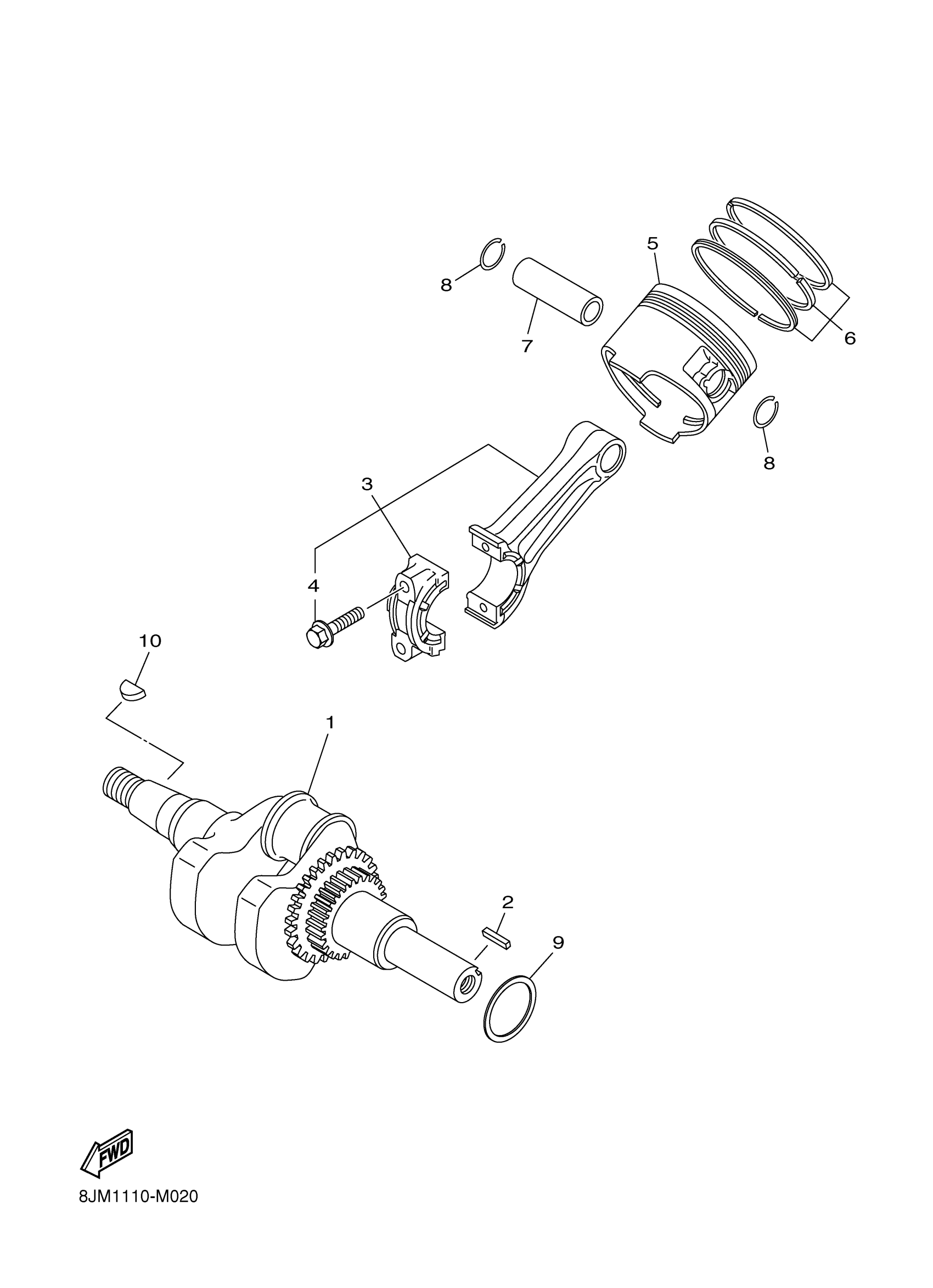

Yamaha SRX120HL (SRX120) 8JMB 2017 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

7CN-E1400-10-00

Unavailable

KEY, STRAIGHT (7H0)

90282-05035-00

$4.82

CONNECTING ROD ASSY

7CN-E1650-11-00

$64.99

BOLT, CONNECTING RO

7CN-E1654-00-00

$3.85

PISTON (STD)

7CL-E1631-10-A0

$33.99

PISTON (0.25MM O-S)

7CL-E1635-00-00

Unavailable

PISTON (0.50MM O/S)

7CL-E1636-00-00

$61.99

PISTON RING SET (STD)

7CL-E1610-00-00

Unavailable

PISTON RING SET

7CL-E1610-10-00

$42.99

PISTON RING SET(0.50 MM O/S)

7CL-E1610-20-00

$40.99

PIN, PISTON

7CL-E1633-00-00

Unavailable

CIRCLIP

93450-17828-00

$1.49

SHIM, CRANK 1

7CN-E1561-00-00

$1.92

KEY,WOODRUFF

90280-04052-00

$7.49
