Description

Price

1

CRANKCASE 1

7CL-E5111-20-00

Unavailable

2

BEARING

93306-205XE-00

$60.99

3

OIL SEAL (25X40X5-256)

93102-25090-00

$14.99

4

OIL SEAL

93104-06800-00

$2.87

5

BOLT, FLANGE

95022-10016-00

$8.49

6

GASKET

90430-10801-00

$1.96

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

COVER, CRANKCASE 1

7CN-E5411-50-00

Unavailable

9

SHAFT, FLYWHEEL

7CN-E1971-00-00

Unavailable

10

BEARING

93306-205XE-00

$60.99

11

OIL SEAL

93102-25805-00

$10.49

12

PLUG

90338-06800-00

Unavailable

13

GASKET, CRANKCASE COVER 1

7CN-E5451-10-00

$16.49

14

BOLT, FLANGE

95822-08035-00

$4.14

15

PLUG, OIL LEVEL

7BX-E536A-00-00

$10.99

16

GASKET

90430-17801-00

Unavailable

17

PLUG, OIL LEVEL

7CN-E5362-00-00

Unavailable

18

O-RING

93210-13801-00

Unavailable

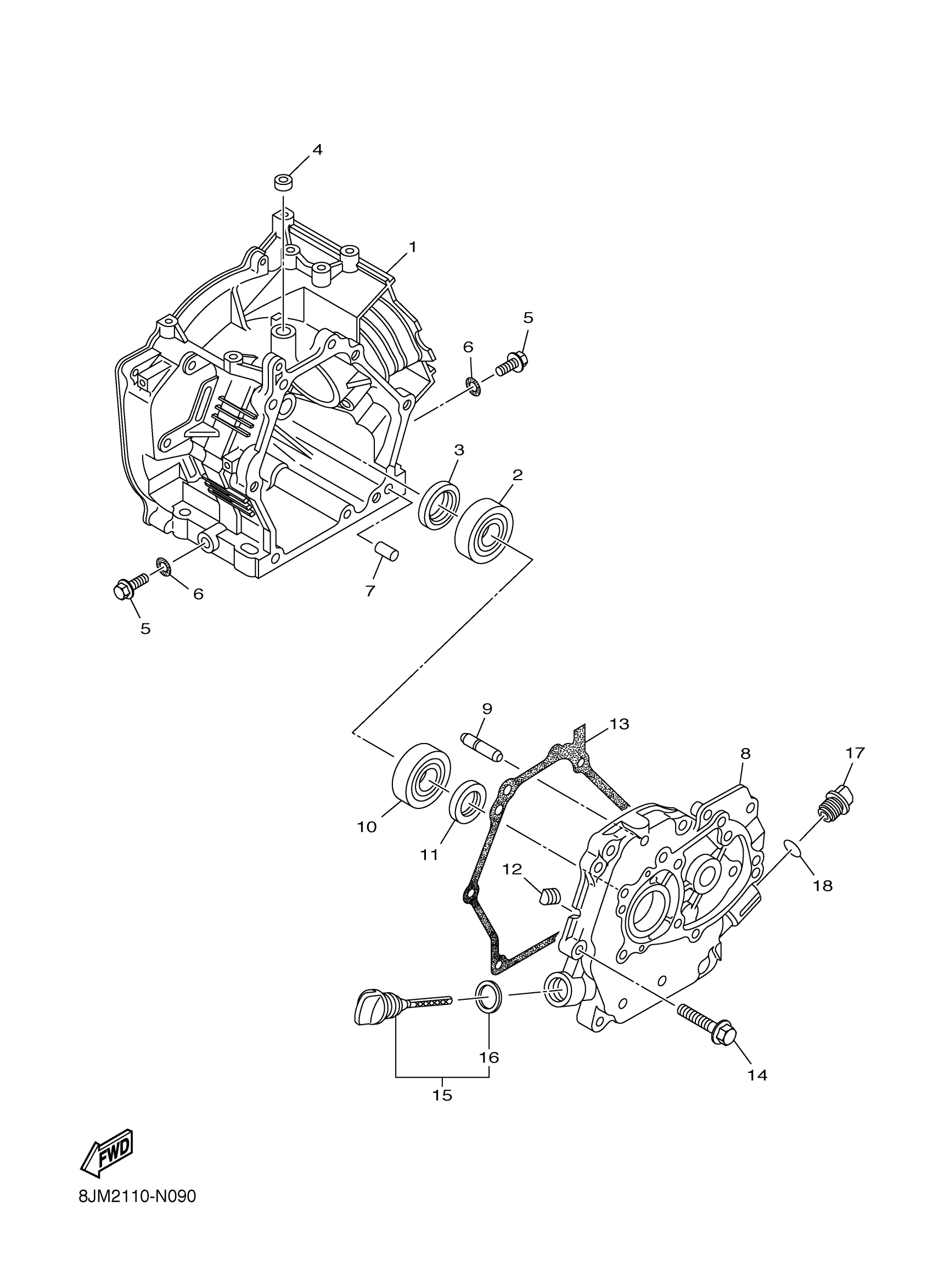

Yamaha SRX120HL (SRX120) 8JMB 2017 CRANKCASE Diagram

CRANKCASE 1

BEARING

OIL SEAL (25X40X5-256)

OIL SEAL

BOLT, FLANGE

GASKET

PIN, DOWEL(3XW)

COVER, CRANKCASE 1

SHAFT, FLYWHEEL

BEARING

OIL SEAL

PLUG

GASKET, CRANKCASE COVER 1

BOLT, FLANGE

PLUG, OIL LEVEL

GASKET

PLUG, OIL LEVEL

O-RING
