- SRX120GL (SRX120) 8JM8 2016
TRACK SUSPENSION 1

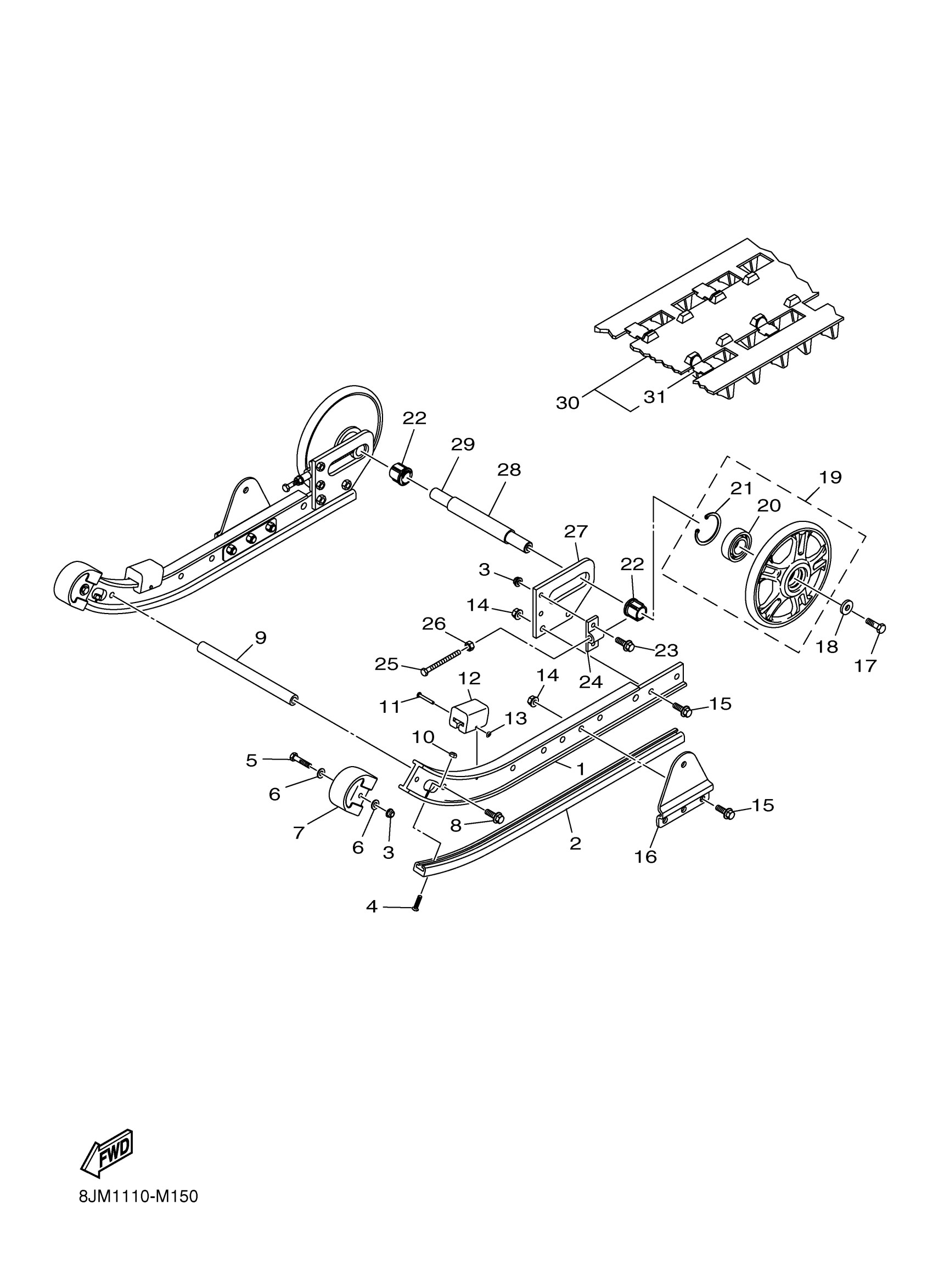

Yamaha SRX120GL (SRX120) 8JM8 2016 TRACK SUSPENSION 1 Diagram
#
1
RAIL, SLIDE-FORMED
8JM-G741A-00-00
Unavailable
2
WEARSTRIP,SLIDE RAIL-BLK-Z 120
8JM-G7421-00-00
$29.99
3
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
4
SCREW,MACH-PHFH 1/4-20 X 1 1/8
8JM-RA206-00-00
$1.43
5
BOLT, HEXAGON 1/4-20X1.125
8JM-RA115-00-00
Unavailable
6
WASHER, PLAIN 1/4
8JM-RA408-00-00
Unavailable
7
RUNNER, SLIDING 2
8JM-G7422-00-00
Unavailable
8
SCREW,CAP-HFH 5/16-18X0.875 G5
8JM-RA116-00-00
$3.35
9
SHAFT 3
8JM-G7485-00-00
Unavailable
10
NUT, SELF-LOCKING 1/4-20
8JM-RA311-00-00
Unavailable
11
RIVET, SOLID - 1/8 X 1.50
8JM-RAY02-00-00
$1.06
12
PAD, SHOCK - RUBBER
8JM-G7456-00-00
$7.49
13
NUT, SPRING 1/8
8JM-RA313-00-00
Unavailable
14
NUT,HEX FLG-NY LOCK 5/16-18 GR
8JM-RA303-00-00
Unavailable
15
SCREW-CAP-HFH 5/16-18 X0.875 G
8JM-RA117-00-00
$2.34
16
BRACKET 1
8JM-G7415-00-00
Unavailable
17
BOLT, FLANGE 3/8-16X1
8JM-RA118-00-00
Unavailable
18
WASHER, PLAIN 0.39
8JM-RA409-00-00
Unavailable
19
WHEEL,IDL-5.63 W.787"ID WHITE
8JM-G7550-00-00
Unavailable
20
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
21
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
22
SPACER
8JM-G7341-00-00
Unavailable
23
SCREW,CAP-HFH 1/4-20X0.750 Z&Y
8JM-RA106-00-00
Unavailable
24
PLATE, ADJUSTING
8JM-G8177-00-00
Unavailable
25
HHCS 3/8-16X4.0 THREADED GR5
8JM-RA119-00-00
Unavailable
26
NUT, HEXAGON 3/8-1
8JM-RA314-10-00
Unavailable
27
FRAME, SLIDING C
8JM-G741C-00-00
Unavailable
28
COLLAR, 20
8JM-RA706-00-00
Unavailable
29
AXLE, REAR
8JM-G7521-00-00
Unavailable
30
TRACK ASSY
8JM-G7110-00-00
Unavailable
31
. METAL, GUIDE
8JM-G7119-00-00
Unavailable
