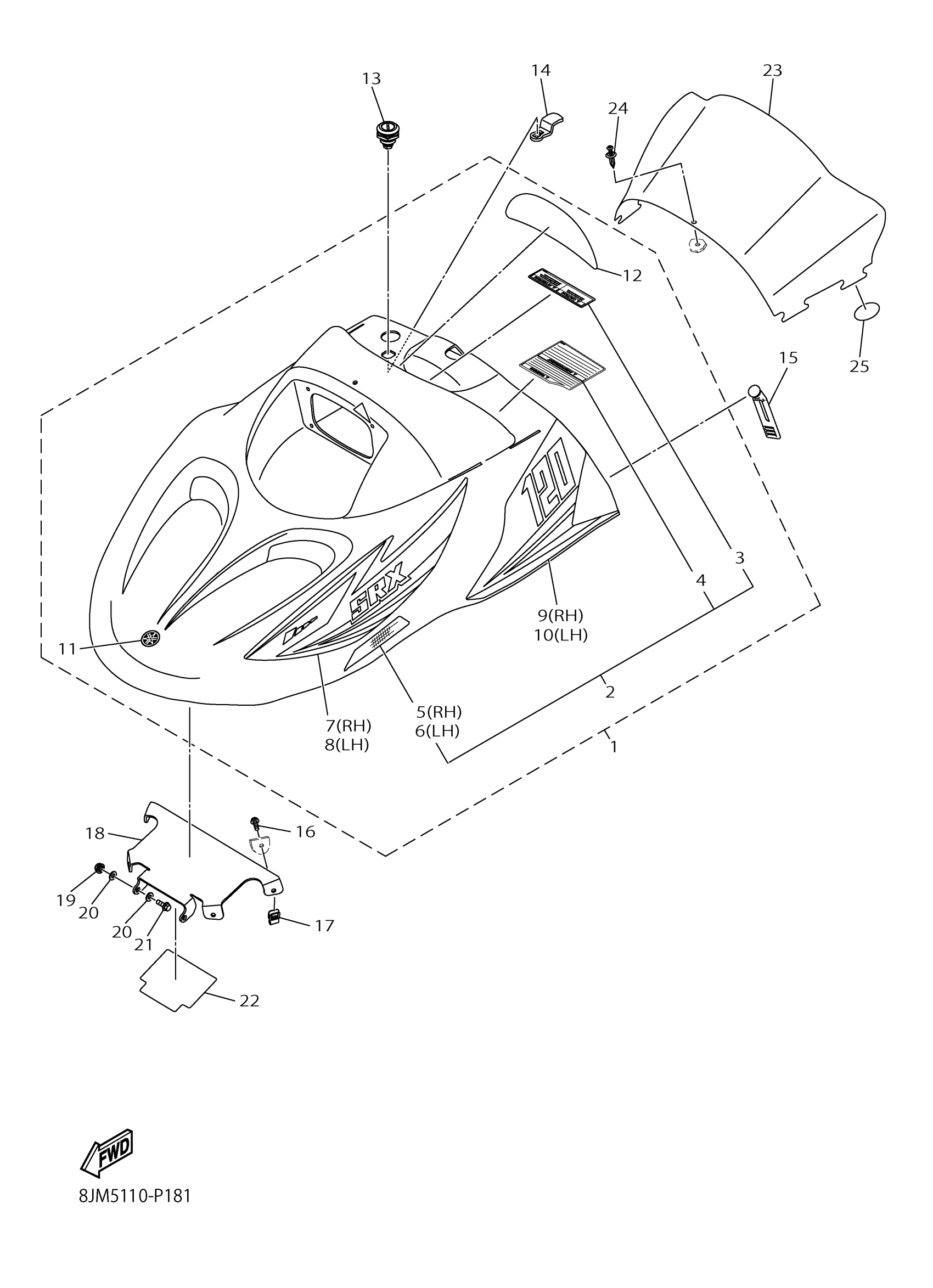

Yamaha SRX120GL (SRX120) 8JM8 2016 SHROUD WINDSHIELD Diagram

#

Description
Price

1

SHROUD ASSY

8JM-K7110-30-00

Unavailable

2

. SHROUD

8JM-K7111-00-00

Unavailable

3

.. LABEL, CAUTION

8JM-F6138-00-00

Unavailable

4

.. LABEL, WARNING 1

8JM-K7761-00-00

Unavailable

5

.. REFLECTOR 2

8JM-K716F-00-00

Unavailable

6

.. REFLECTOR 1

8JM-K716E-00-00

Unavailable

7

.. GRAPHIC 2

8JM-K711B-10-00

Unavailable

8

.. GRAPHIC 1

8JM-K711A-10-00

Unavailable

9

.. GRAPHIC 4

8JM-K711D-10-00

Unavailable

10

.. GRAPHIC 3

8JM-K711C-10-00

Unavailable

11

TUNING FORK MARK

5KM-2175B-00-00

$15.49

12

. PANEL, METER

8JM-H3611-00-00

Unavailable

13

LATCH, HOOD-SLOTTED-1/4 TURN

8JM-K7180-00-00

Unavailable

14

LEVER, LATCH 1

8JM-K7173-00-00

Unavailable

15

STRAP, HOLD DOWN-HOOD

8JM-K7171-00-00

$12.49

16

SCREW, 10-32X5/8

8JM-RA207-00-00

Unavailable

17

NUT, SPRING 10-32

8JM-RA316-00-00

Unavailable

18

BRACKET, WINDSHIELD

8JM-K7221-00-00

Unavailable

19

NUT, FLG. LOCKING

8JP-RA357-00-00

Unavailable

20

WASHER - GREASE FITTING

8JM-RA410-00-00

Unavailable

21

SCREW,CAP-HFH 1/4-20X0.625 Z&Y

8JM-RA121-00-00

Unavailable

22

LABEL, CAUTION

8JM-E417F-00-00

Unavailable

23

WINDSHIELD, '07 120

8JM-K7211-00-00

Unavailable

24

CLIP, HOOD VENT

8JM-RA506-00-00

Unavailable

25

O-RING, 1

8JM-RAF00-00-00

Unavailable
