2016 Yamaha SRX120 (SRX120GL) Generator Diagram

← All diagrams

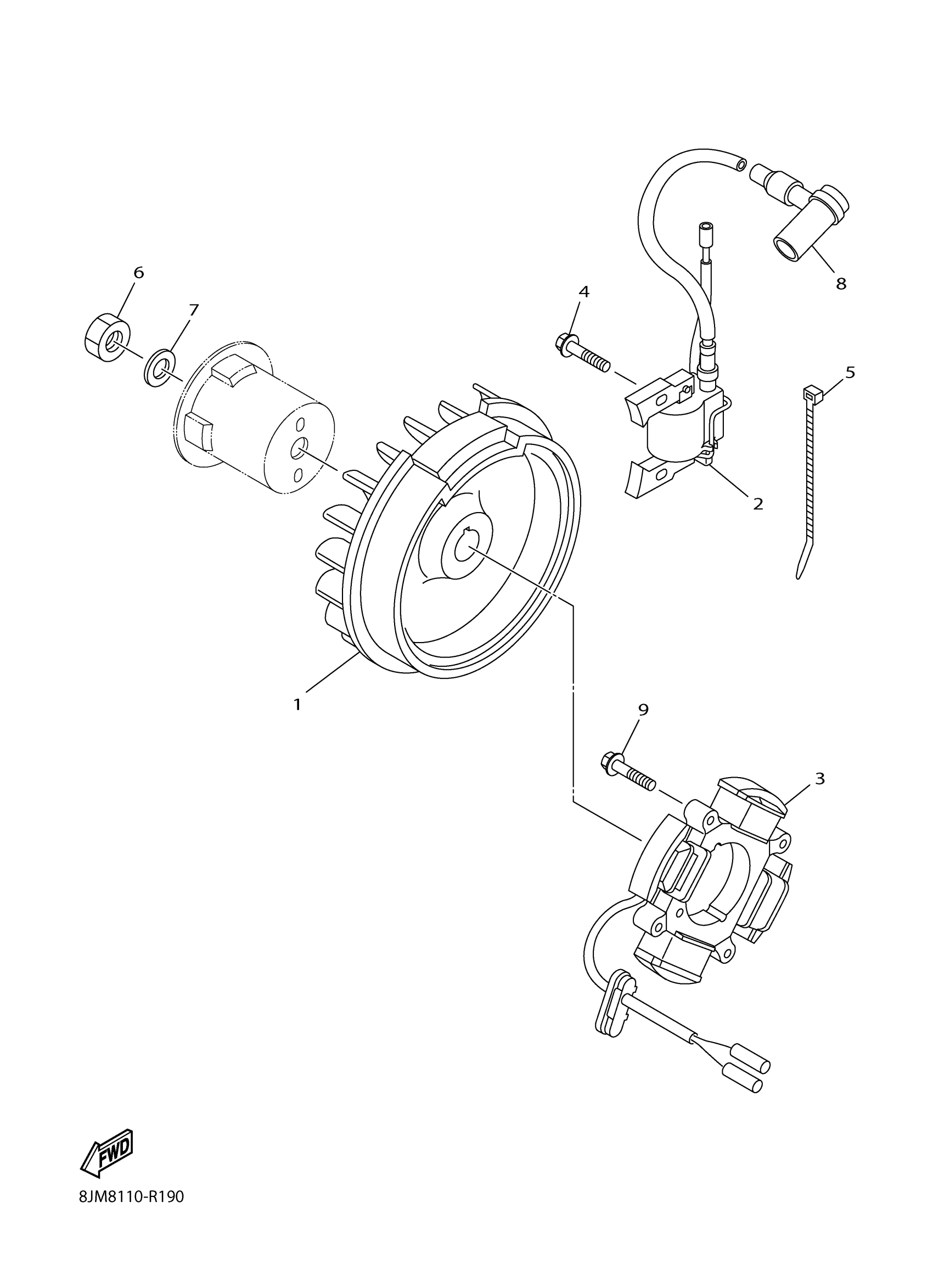

Find the part on the Generator diagram for your 2016 Yamaha SRX120 (SRX120GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SRX120 (SRX120GL) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

7CN-H5650-30-00

—

$223.23

In stock

2

T.C.I. UNIT ASSY

7CN-H5640-02-00

1

$125.54

In stock

3

STATOR ASSY

7BN-H1410-01-00

1

$173.71

In stock

4

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

5

BINDER

7CN-H7188-10-00

1

$1.02

In stock

6

NUT

90170-14800-00

1

$3.03

In stock

7

WASHER, PLAIN

92990-14200-00

1

$1.71

In stock

8

PLUG CAP ASSY

7CN-H2370-00-00

1

$16.91

In stock

9

BOLT

90109-06881-00

—

$5.49

In stock
