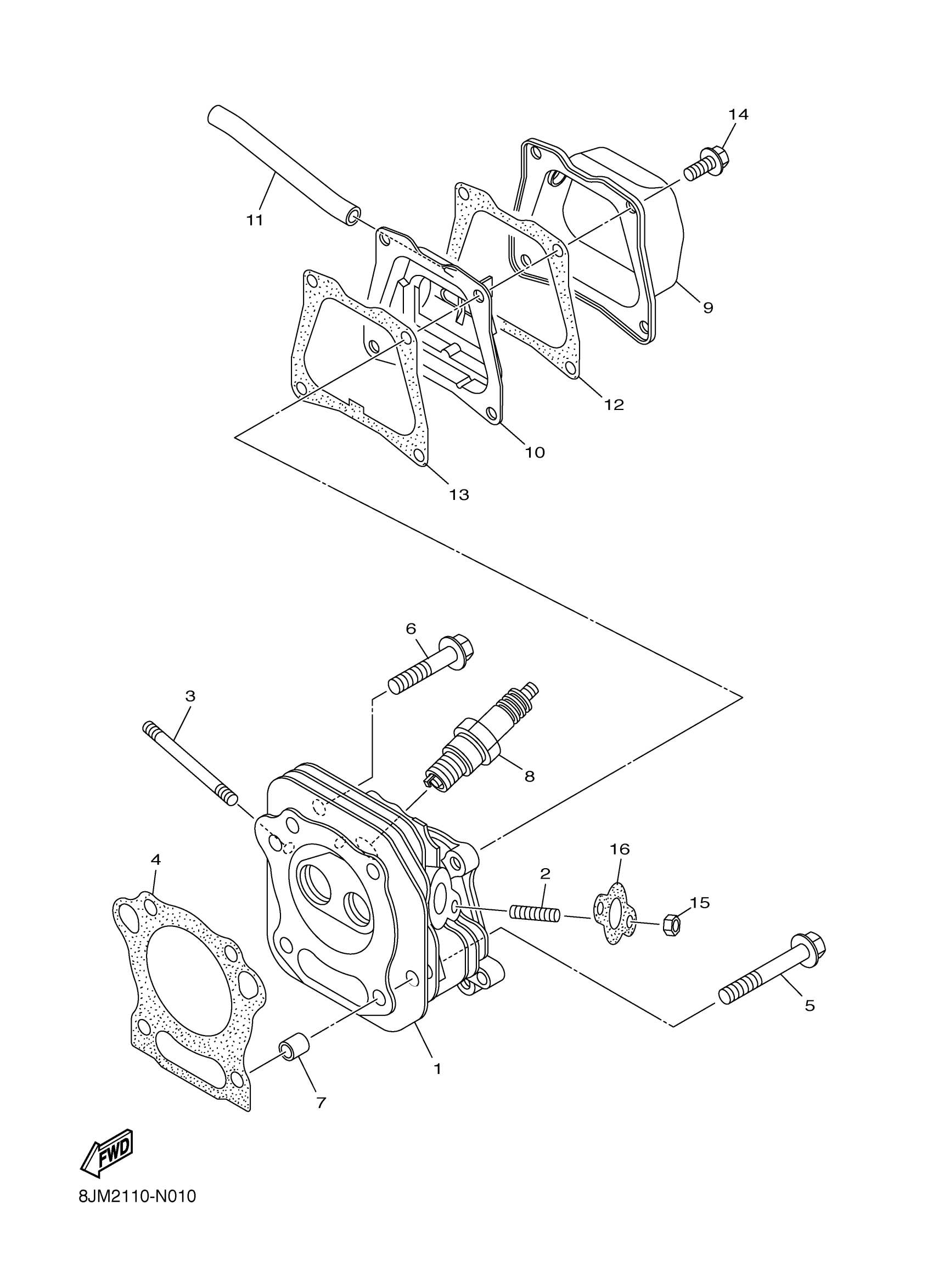

Yamaha SRX120GL (SRX120) 8JM8 2016 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

7CL-E1111-01-00

Unavailable

2

BOLT, STUD

95617-06615-00

$9.49

3

BOLT, STUD

95622-06690-00

Unavailable

4

GASKET, CYLINDER HEAD 1

7CL-E1181-01-00

$21.99

5

BOLT, FLANGE

95814-08065-00

$4.99

6

BOLT, FLANGE

95814-08045-00

$4.29

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

BPR4ES NGK SPLUG 4PK

BPR-4ES00-40-00

Unavailable

9

COVER, CYLINDER HEA

7CN-E1191-00-00

$24.99

10

BREATHER ASSY

7CN-E1160-00-00

$32.99

11

HOSE

90445-13800-00

Unavailable

12

GASKET, BREATHER COVER

7CN-E1169-02-00

$5.49

13

GASKET, HEAD COVER 1

7CN-E1193-00-00

$10.99

14

BOLT, FLANGE

95817-06012-00

$1.43

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

GASKET, EXHAUST PIP

7CN-E4613-00-00

Unavailable
