Description

Price

1

CARBURETOR ASSY 1

7CL-E4101-42-00

$240.99

2

SCREW, THROTTLE

1WG-14922-00-00

$3.74

3

SPRING, PILOT ADJUSTING

73A-14212-00-00

$2.13

4

CAP

7LV-14118-00-00

$6.99

5

SCREW, PILOT ADJUSTING

7NJ-14211-00-00

$6.99

6

SCREW, ROD

7RH-14486-00-00

$2.91

7

JET, PILOT (# 37.5)

620-14142-37-A0

$7.99

8

. WASHER

22F-14953-00-00

Unavailable

9

WASHER

6K8-14597-10-00

Unavailable

10

SCREW

7RH-14216-00-00

$2.91

11

. JET, MAIN (#775)

1HX-1423A-66-A0

Unavailable

12

NEEDLE ASSY

7LG-14150-11-00

$24.99

13

CLIP

7EG-14159-00-00

$4.37

14

. NOZZLE, MAIN

7NM-1495F-2B-00

Unavailable

15

FLOAT

7LG-14185-00-00

$30.99

16

PIN, FLOAT

22F-14186-00-00

Unavailable

17

SEAL

7CN-E4997-00-00

Unavailable

18

BODY, FLOAT CHAMBER 1

7EG-14181-00-00

Unavailable

19

. PLUG, DRAIN

7E1-14191-00-00

Unavailable

20

SPRING, PILOT ADJUSTING

73A-14212-00-00

$2.13

21

GASKET

7G0-14227-00-00

Unavailable

22

BOLT, HOLDING

7NJ-14162-00-00

Unavailable

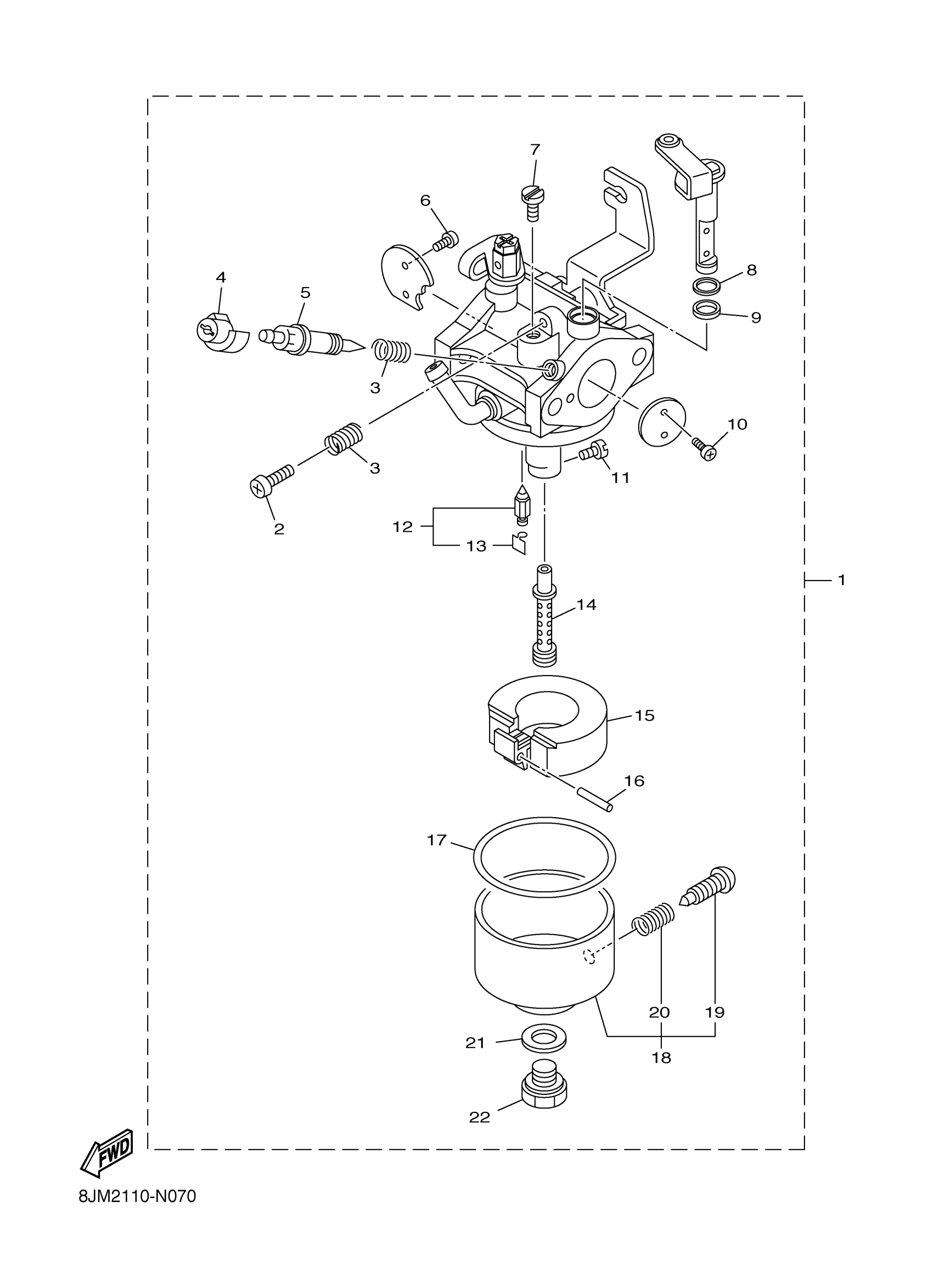

Yamaha SRX120GL (SRX120) 8JM8 2016 CARBURETOR Diagram

CARBURETOR ASSY 1

SCREW, THROTTLE

SPRING, PILOT ADJUSTING

CAP

SCREW, PILOT ADJUSTING

SCREW, ROD

JET, PILOT (# 37.5)

. WASHER

WASHER

SCREW

. JET, MAIN (#775)

NEEDLE ASSY

CLIP

. NOZZLE, MAIN

FLOAT

PIN, FLOAT

SEAL

BODY, FLOAT CHAMBER 1

. PLUG, DRAIN

SPRING, PILOT ADJUSTING

GASKET

BOLT, HOLDING
