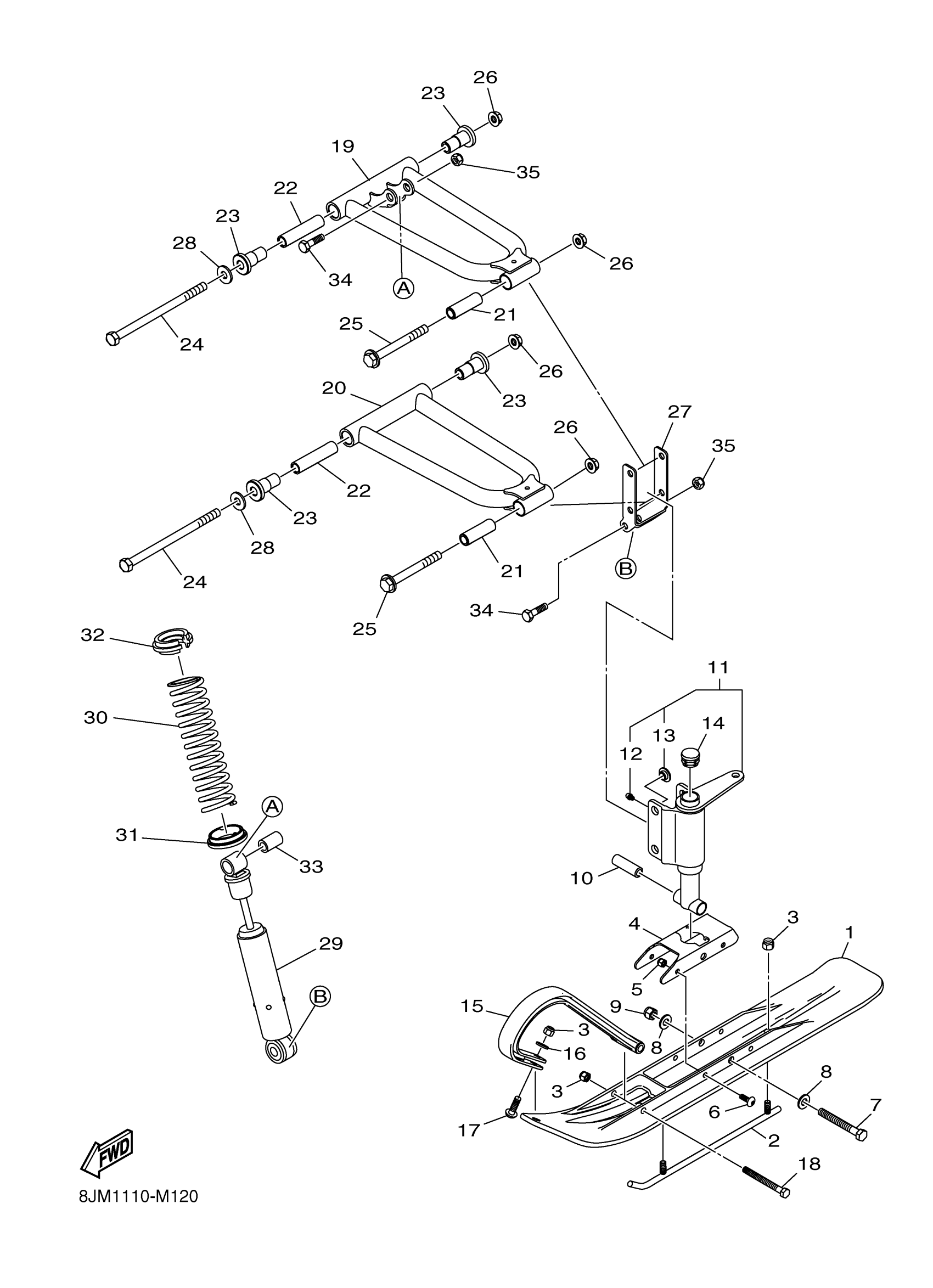

Yamaha SRX120FL (SRX120) 8JM5 2015 SKI Diagram
#
1
SKI, INJECTION MOLDED-BLACK
8JM-F3711-00-00
$86.99
2
SKAG-PTD BLK
8JM-F3731-00-00
$26.99
3
NUT,HEX FLG-NY LOCK 5/16-18 GR
8JM-RA303-00-00
Unavailable
4
SADDLE 1
8JM-F3766-00-00
Unavailable
5
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
6
SCREW,MACH-TSTRH 1/4-20X3/4 GR
8JM-RA204-00-00
$3.66
7
BOLT, HEXAGON 3/8-16X3
8JM-RA110-00-00
Unavailable
8
WASHER,FLAT-3/8X1.000X.063 Z&Y
8JM-RA405-00-00
$0.48
9
NUT, FLG. LOCKING
8JP-RA358-00-00
$0.80
10
COLLAR, 9
8JM-RA702-00-00
Unavailable
11
STEERING KNUCKLE ASSY
8JM-F3501-00-00
Unavailable
12
. NIPPLE, GREASE
8JM-R169A-00-00
Unavailable
13
INSERT, ALUM.-SPINDLE
8JM-RA800-00-00
Unavailable
14
CAP 1
8JM-F3741-00-00
Unavailable
15
HANDLE, SKI-MOLDED BLACK
8JM-F3712-00-00
$29.99
16
WASHER,FLAT-5/16X.688X.065 Z&Y
8JM-RA403-00-00
Unavailable
17
SCREW, 5/16-18X1
8JM-RA205-00-00
Unavailable
18
SCREW,CAP-HH5/16-18X3.00-G5 ZY
8JM-RA111-00-00
Unavailable
19
ARM, FRONT UPPER
8JM-F354A-00-00
Unavailable
20
ARM, FRONT LOWER
8JM-F357A-00-00
Unavailable
21
COLLAR, 9
8JM-RA702-00-00
Unavailable
22
COLLAR, 10
8JM-RA703-00-00
Unavailable
23
AXLE,PWD CRANK (NO BEARING)
8JM-F3583-00-00
Unavailable
24
BOLT, HEXAGON 3/8-16X6
8JM-RA107-00-00
Unavailable
25
BOLT, FLANGE 3/8-16X3.25
8JM-RA108-00-00
Unavailable
26
NUT, FLG. LOCKING
8JP-RA358-00-00
$0.80
27
BRKT,MTG-LOWER SHOCK-PTD BLK
8JM-F3574-00-00
Unavailable
28
WASHER,FLAT-3/8X1.000X.063 Z&Y
8JM-RA405-00-00
$0.48
29
SHOCK ABSORBER - SKI - F 120
8JM-F376A-00-00
Unavailable
30
SPRING, COMPRESSION-PTD WHITE
8JM-F3760-00-00
Unavailable
31
RETAINER, SPRING-LWR
8JM-F3777-00-00
Unavailable
32
RETAINER - UPPER SPRING
8JM-F3768-00-00
Unavailable
33
COLLAR,9
8JM-RA704-00-00
Unavailable
34
SCREW,CAP-HH3/8-16X1.50 G5 Z&Y
8JM-RA109-00-00
Unavailable
35
NUT,HEX THIN LOCK-NYL 3/8-16
8JM-RA305-00-00
Unavailable
