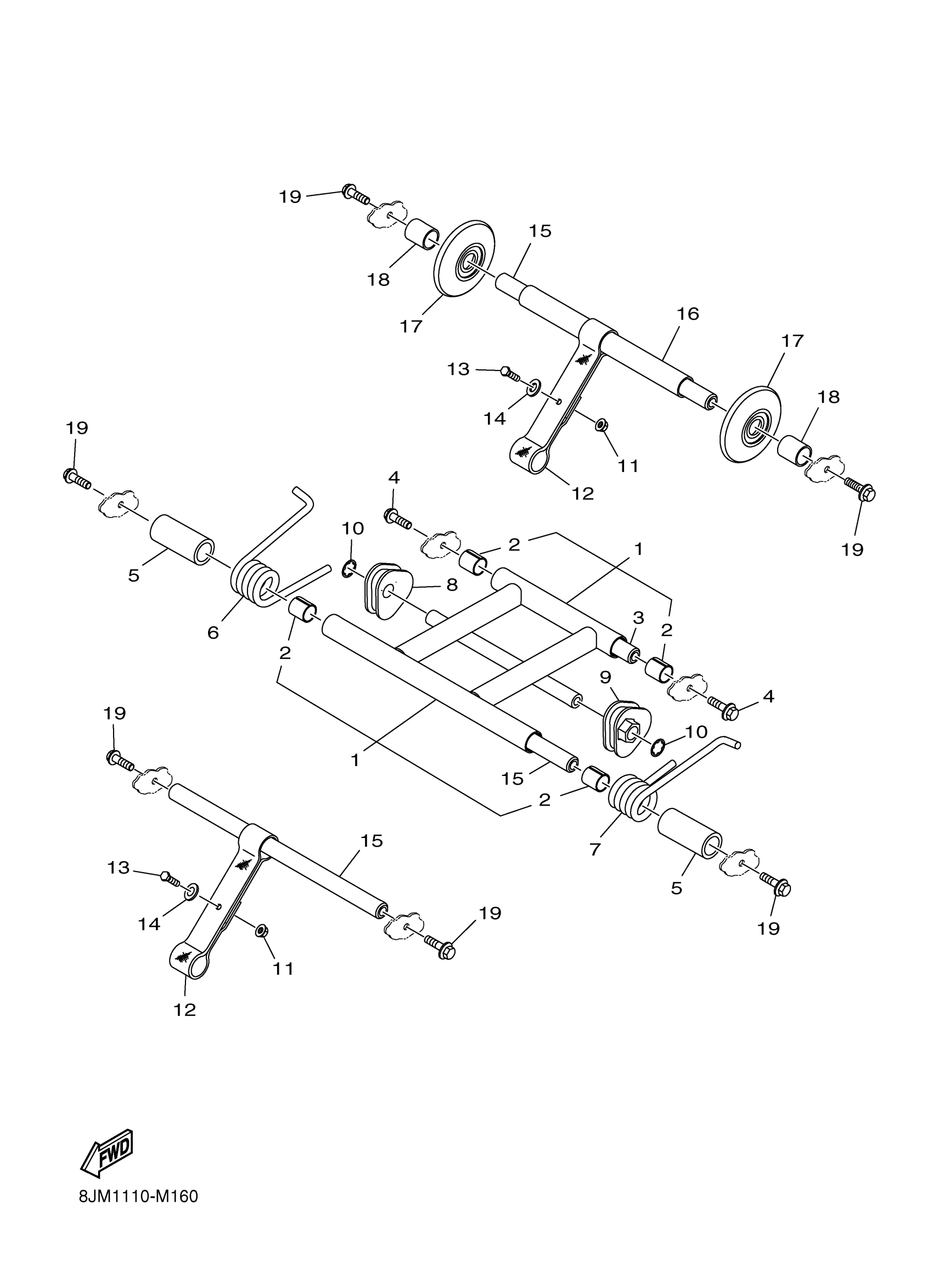

Yamaha SRX120EL (SRX120) 8JM2 2014 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM,FRONT-120-FAB

8JM-G7331-00-00

$147.99

2

BEARING, GARLOCK 10DU12

8JM-RA801-00-00

$12.49

3

AXLE, ARM-LOWER

8JM-G7486-00-00

$40.99

4

SCREW,CAP-HFH 5/16-18X0.875 G5

8JM-RA116-00-00

$3.35

5

COLLAR, 22

8JM-RA707-00-00

Unavailable

6

SPRING,SUSPENSION-RH-PTD BLK

8JM-G7474-00-00

$62.99

7

SPRING, REAR 1

8JM-G7473-00-00

Unavailable

8

BLOCK, SPRING-ADJUSTER-RH

8JM-G7448-00-00

Unavailable

9

BLOCK, SPRING-ADJUSTER-LH

8JM-G7447-00-00

Unavailable

10

RING,RETAINING-ADJ BLOCK 9/16

8JM-RA315-00-00

$0.85

11

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

12

STRAP, LIMITER

8JM-G7495-00-00

Unavailable

13

SCREW,CAP-HH 1/4-20X1.00 G5Z&Y

8JM-RA120-00-00

$0.54

14

WASHER,FLAT-1/4 X .734 X .063

8JM-RA400-00-00

$0.85

15

AXLE, IDLER

8JM-G7465-00-00

Unavailable

16

COLLAR, 17

8JM-RA708-00-00

Unavailable

17

WHEEL, REAR IDLER

8JM-G7310-00-00

Unavailable

18

COLLAR, 17

8JM-RA709-00-00

Unavailable

19

SCREW-CAP-HFH 5/16-18 X0.875 G

8JM-RA117-00-00

Unavailable
