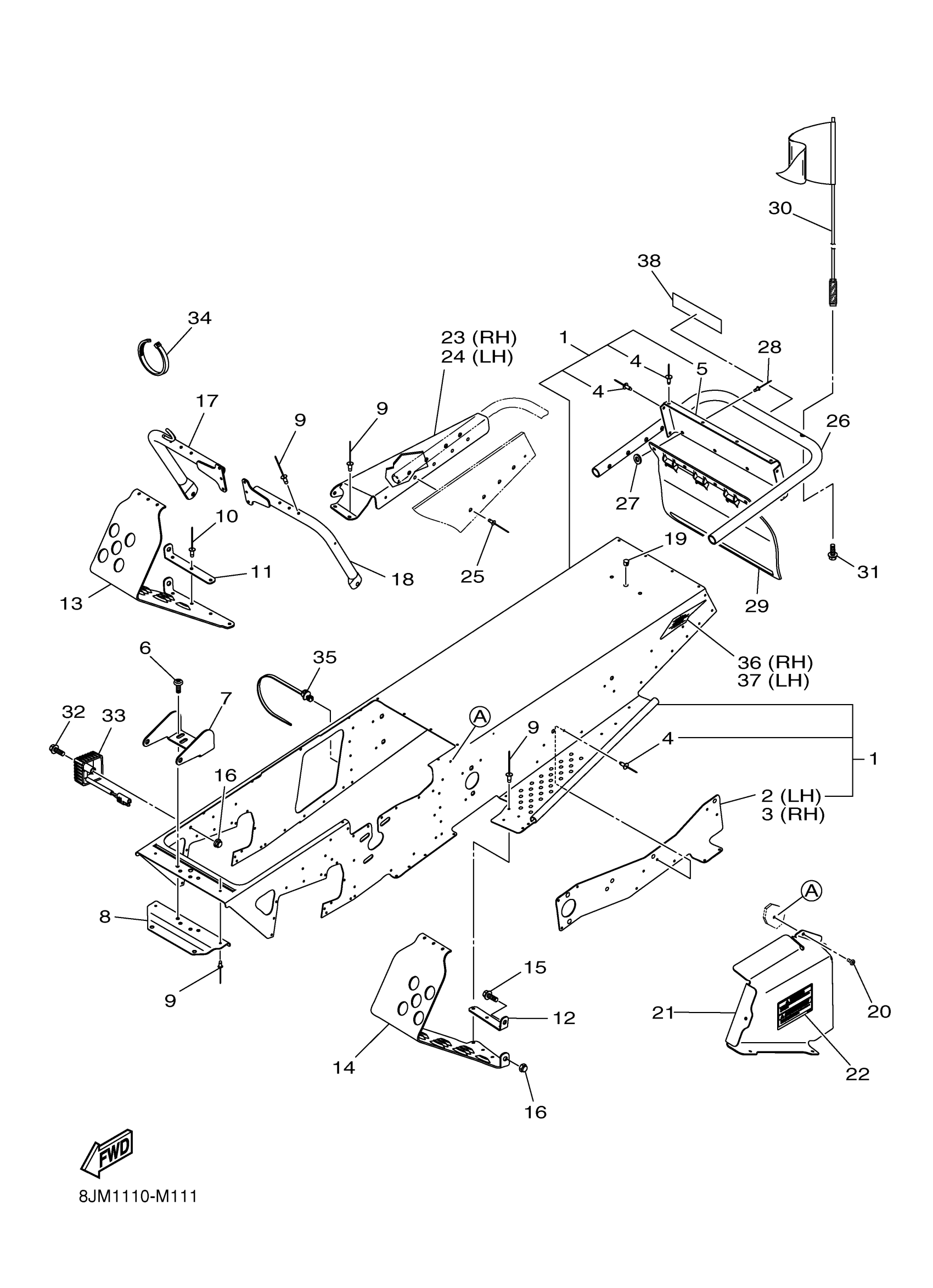

Yamaha SRX120EL (SRX120) 8JM2 2014 FRAME 2 Diagram
#
1
FRAME COMP.
8JM-F1910-00-00
Unavailable
2
. BRACKET, MAIN TRACK 1
8JM-F1943-00-00
Unavailable
3
. BRACKET, MAIN TRACK 2
8JM-F1953-00-00
Unavailable
4
. RIVET, ROUND 1
8JM-RA504-00-00
Unavailable
5
.. REINEFORCEMENT, FRAME REAR 1
8JM-F1923-10-00
Unavailable
6
SCREW, TAPPING 1/4-20X0.5
8JM-RA202-00-00
Unavailable
7
BRACKET, FRONT HOOD
8JM-F1979-00-00
Unavailable
8
FRAME, FRONT END
8JM-F191D-00-00
Unavailable
9
RIVET, 5
8JP-RA514-00-00
Unavailable
10
RIVET, 6
8JP-RA515-00-00
$1.07
11
BRKT,SUPPORT-FOOTREST-R/H-PTD
8JM-F1931-00-00
Unavailable
12
BRKT,SUPPORT-FOOTREST-L/H-PTD
8JM-F1921-00-00
Unavailable
13
FOOTREST - RH
8JM-F7421-00-00
Unavailable
14
FOOTREST 1
8JM-F7411-00-00
Unavailable
15
SCREW,CAP-HFH 1/4-20X0.750 Z&Y
8JM-RA106-00-00
Unavailable
16
NUT, FLG. LOCKING
8JP-RA357-00-00
Unavailable
17
SUPPORT,FOOTREST-PTD BLK-RH
8JM-F192E-00-00
Unavailable
18
SUPPORT, FOOTREST-PTD BLK-LH
8JM-F1929-00-00
Unavailable
19
PLUG, HOLE-3/8 DIA-BLK
8JM-RA601-00-00
Unavailable
20
SCREW,SELF TAP-HWH10X1/2 AB ZY
8JM-RA203-00-00
Unavailable
21
COVER,SPROCKET-DRIVEN-PTD BLK
8JM-E3327-00-00
Unavailable
22
LABEL, WARNING 2
8JM-K7762-00-00
Unavailable
23
BUMPER, REAR 4
8JM-K7544-00-00
Unavailable
24
BUMPER, REAR 3
8JM-K7543-00-00
Unavailable
25
RIVET, 11
8JP-RA520-00-00
Unavailable
26
BUMPER, REAR 1
8JM-K7541-00-00
Unavailable
27
WASHER,FLAT .194X.50X.048
8JM-RA411-00-00
Unavailable
28
RIVET, BLIND-DH AA66 BLK
8JM-RA508-00-00
Unavailable
29
FLAP
8JM-K7595-00-00
Unavailable
30
FLAG, SAFETY-ASSY
8JM-RAY04-01-00
Unavailable
31
SCREW,CAP-HFH 5/16-18X1.25 G5
8JM-RA104-00-00
Unavailable
32
BOLT, FLANGE 1/4-2
8JM-RA138-00-00
Unavailable
33
VOLTAGE REGULATOR ASSY
8JM-H1910-00-00
Unavailable
34
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
35
CABLE TIE,PUSH MOUNT-XMAS CLIP
8JM-RAB02-00-00
Unavailable
36
BASE, REFLECTOR 3
8JM-H511F-00-00
Unavailable
37
BASE, REFLECTOR 2
8JM-H511E-00-00
Unavailable
38
EMBLEM, YAMAHA
8JM-F153A-00-00
Unavailable
