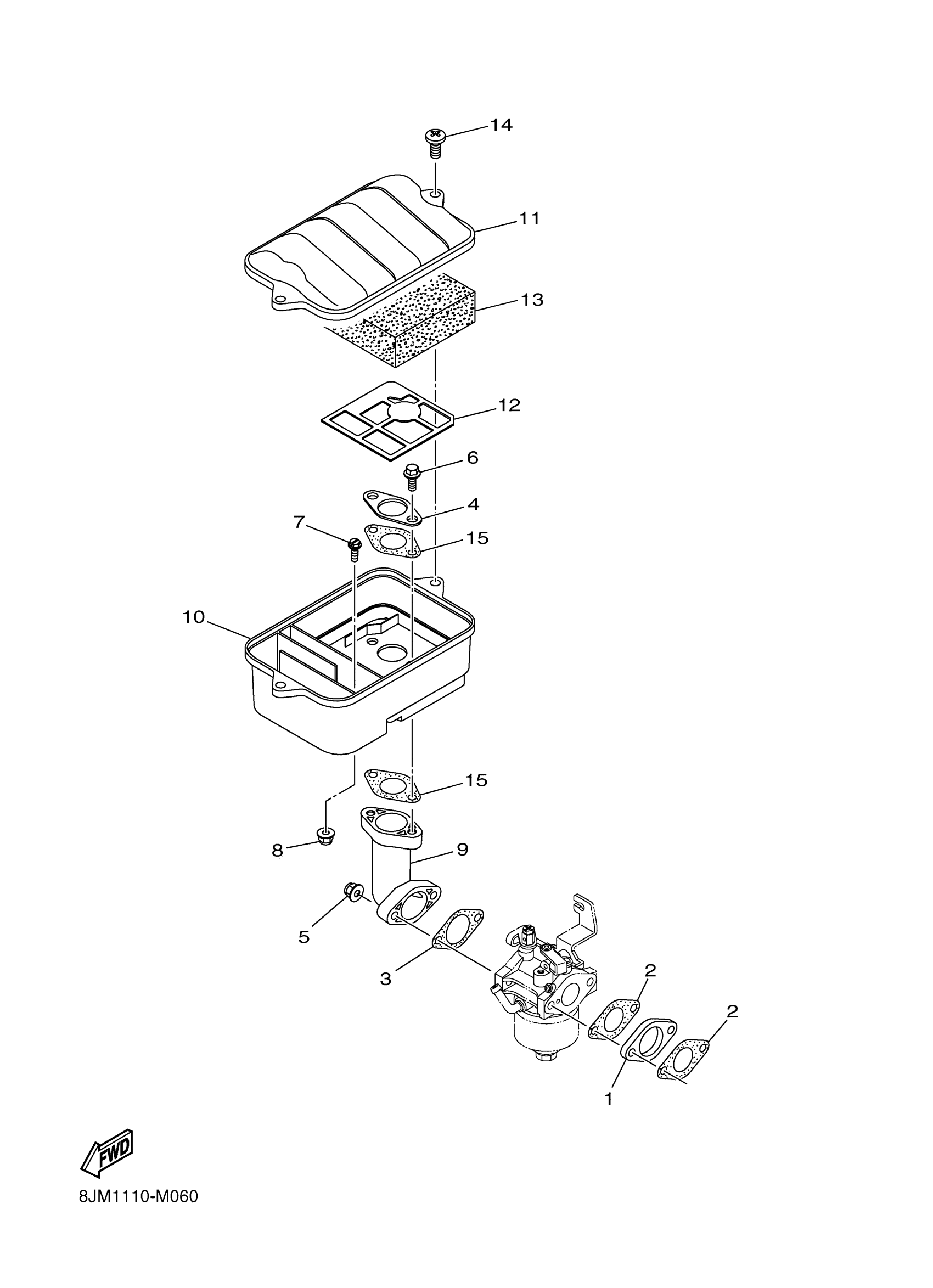

Yamaha SRX120DL (SRX120) 8JM1 2013 INTAKE Diagram

JOINT, CARBURETOR 2

7CL-E3596-00-00

Unavailable

GASKET

7CL-E3557-01-00

$4.47

GASKET

7CN-E3567-01-00

$2.70

PLATE

7CN-E4477-00-00

Unavailable

NUT, FLANGE

95702-06500-00

$2.39

SCREW,PT THD-TSTRH K60-2.69X16

8JM-RA200-00-00

Unavailable

BOLT, FLANGE M8-1.25X25

8JM-RA102-00-00

Unavailable

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

INTAKE, TUBE

8JM-E3536-00-00

Unavailable

CASE, AIR CLEANER 1

7CN-E4411-00-00

$44.99

CAP, CLEANER CASE 1

7CN-E4412-00-00

$15.49

PLATE,ELEMENT FITTING

7CN-E4468-01-00

$2.60

ELEMENT, AIR CLEANE

7CN-E4451-00-00

$7.99

SCREW, BINDING (31K)

90154-06014-00

$8.49

GASKET

7CN-E3567-01-00

$2.70
