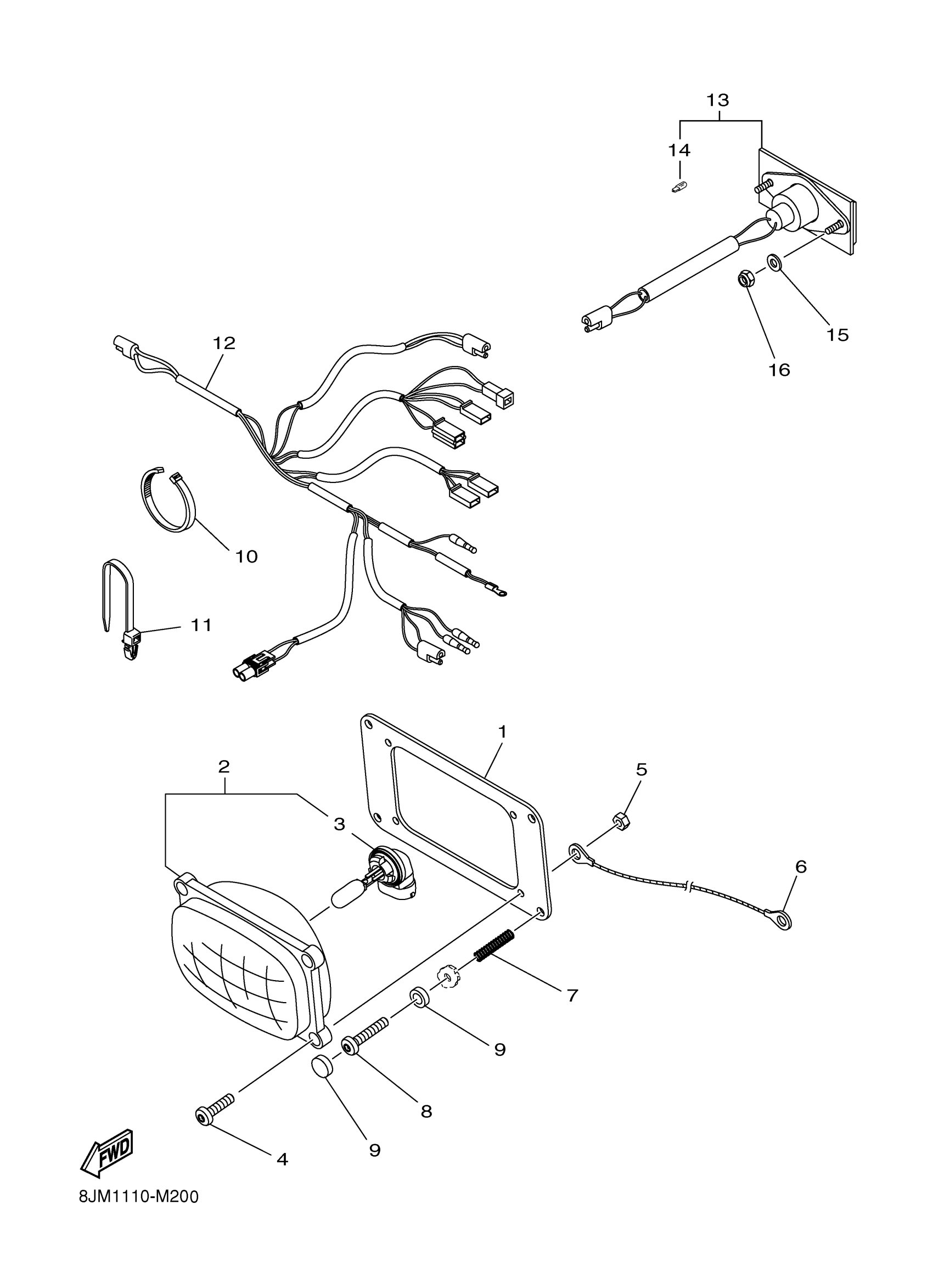

Yamaha SRX120DL (SRX120) 8JM1 2013 HEAD TAIL LIGHT Diagram

#

Description
Price

1

STAY, HEADLIGHT 1

8JM-H4118-00-00

Unavailable

2

HEADLIGHT UNIT ASSY

8JM-H4310-00-00

Unavailable

3

. BULB, HEADLIGHT (12V-375W)

8JM-H4314-00-00

Unavailable

4

SCREW, 10-24X1/2

8JM-RA209-00-00

Unavailable

5

NUT, SELF-LOCKING

8JM-RA319-00-00

Unavailable

6

STOPPER, SHROUD

8JM-K7118-00-00

Unavailable

7

SPRING, COMPRESSION 3

8JM-RAD07-00-00

Unavailable

8

SCREW,10-24X2

8JM-RA210-00-00

Unavailable

9

PLUG, 4

8JM-RA603-00-00

Unavailable

10

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

11

CABLE TIE,PUSH MOUNT-XMAS CLIP

8JM-RAB02-00-00

Unavailable

12

WIRE HARNESS ASSY

8JM-H2590-00-00

Unavailable

13

TAILLIGHT UNIT ASS

8JM-H4710-10-00

$62.99

14

. BULB (12V-34W T10)

8JM-H4714-00-00

Unavailable

15

WASHER, PLAIN 10

8JM-RA412-00-00

Unavailable

16

NUT, HEXAGON 10-32

8JM-RA318-00-00

Unavailable
