Description

Price

1

FLYWEIGHT SHAFT ASSY.

7CN-E1970-10-00

$19.49

2

WEIGHT

7CN-E1913-00-00

$3.17

3

SHAFT, WEIGHT

7CT-E1914-00-00

$2.13

4

WASHER, PLATE(3SX)

90201-062P7-00

$5.60

5

CIRCLIP

93440-06826-00

$1.11

6

WASHER, PLATE(3SX)

90201-062P7-00

$5.60

7

COLLAR

7CN-E1917-00-00

$3.12

8

FORK, GOVERNOR

7CN-E1922-00-00

Unavailable

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

CLIP

90468-18008-00

Unavailable

11

ARM, GOVERNOR

7CN-E1924-01-00

Unavailable

12

BOLT, HEXAGON

97017-06030-00

$3.61

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

NUT,SQUARE

90173-06802-00

$1.22

15

ROD, LINK

7CN-E1928-00-00

Unavailable

16

SPRING,TENSION

90506-04800-00

Unavailable

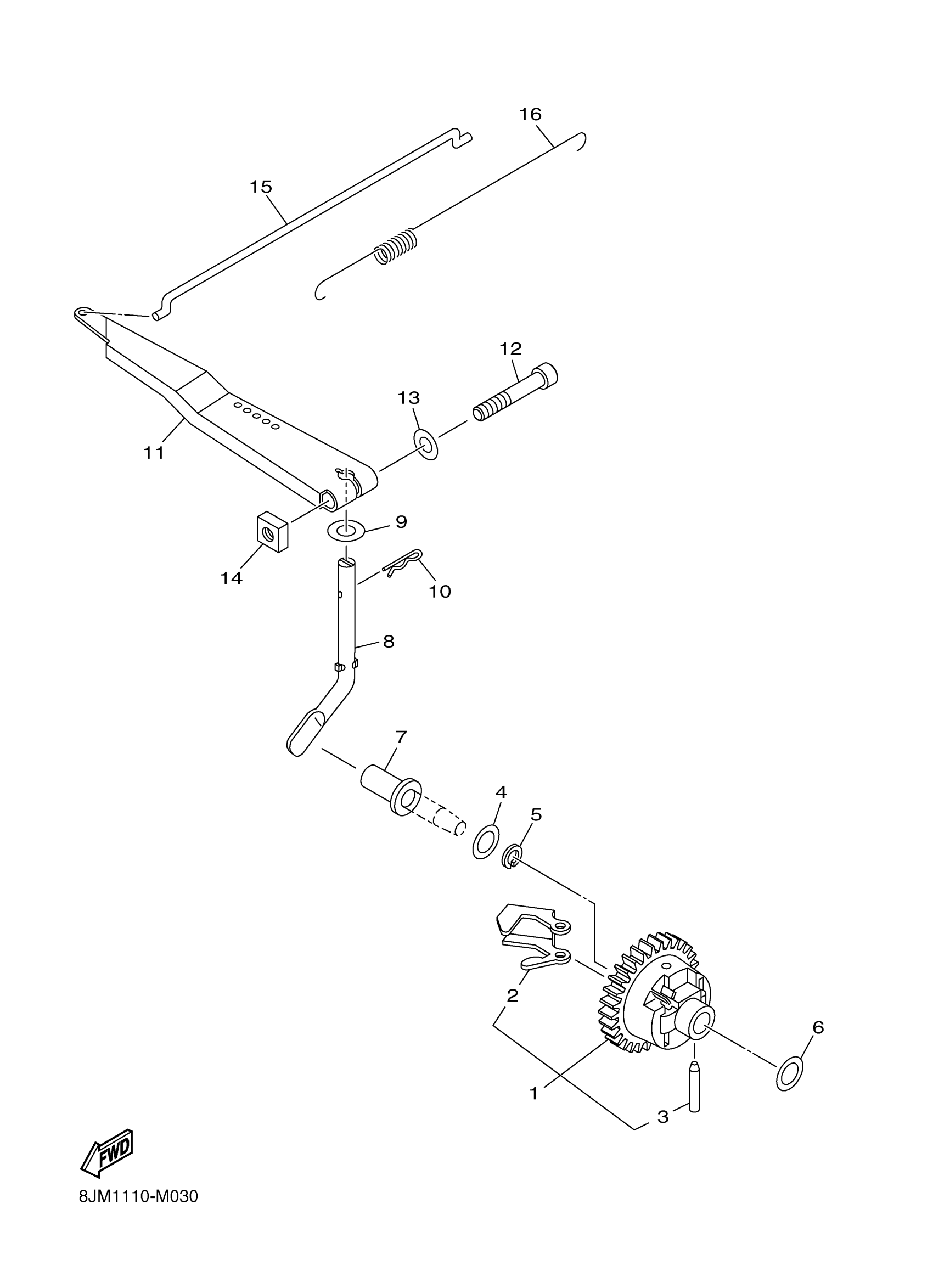

Yamaha SRX120DL (SRX120) 8JM1 2013 GOVERNOR Diagram

FLYWEIGHT SHAFT ASSY.

WEIGHT

SHAFT, WEIGHT

WASHER, PLATE(3SX)

CIRCLIP

WASHER, PLATE(3SX)

COLLAR

FORK, GOVERNOR

YBS66-6 WASHER, PLAIN

CLIP

ARM, GOVERNOR

BOLT, HEXAGON

WASHER, PLAIN (646)

NUT,SQUARE

ROD, LINK

SPRING,TENSION
