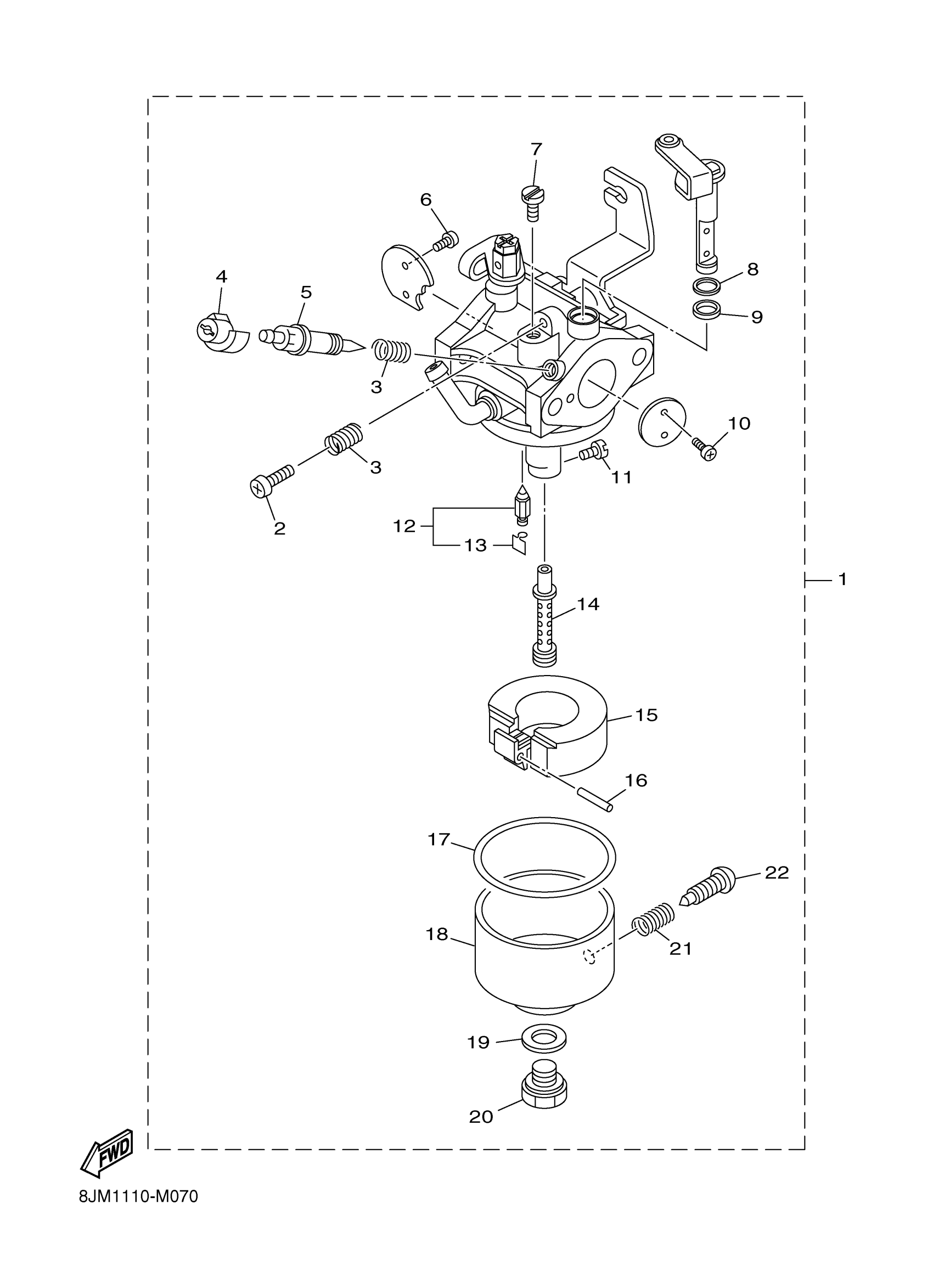

Yamaha SRX120DL (SRX120) 8JM1 2013 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

7CL-E4101-42-00

$222.47

2

SCREW, THROTTLE

1WG-14922-00-00

$3.86

3

SPRING, PILOT ADJUSTING

73A-14212-00-00

$2.12

4

CAP

7LV-14118-00-00

$7.39

5

SCREW, PILOT ADJUSTING

7NJ-14211-00-00

$6.76

6

SCREW, ROD

7RH-14486-00-00

$2.71

7

JET, PILOT (# 37.5)

620-14142-37-A0

$6.52

8

. WASHER

22F-14953-00-00

$0.35

9

WASHER

6K8-14597-10-00

Unavailable

10

SCREW

7RH-14216-00-00

Unavailable

11

. JET, MAIN (#775)

1HX-1423A-66-A0

$10.30

12

NEEDLE ASSY

7LG-14150-11-00

$21.35

13

CLIP

7EG-14159-00-00

$4.27

14

. NOZZLE, MAIN

7NM-1495F-2B-00

$20.61

15

FLOAT

7LG-14185-00-00

$28.97

16

PIN, FLOAT

22F-14186-00-00

Unavailable

17

GASKET, FLOAT CHAMBER

7G0-14184-00-00

Unavailable

18

BODY, FLOAT CHAMBER 1

7EG-14181-00-00

Unavailable

19

GASKET

7G0-14227-00-00

Unavailable

20

BOLT, HOLDING

7NJ-14162-00-00

Unavailable

21

SPRING, PILOT ADJUSTING

73A-14212-00-00

$2.12

22

. PLUG, DRAIN

7E1-14191-00-00

$6.11
