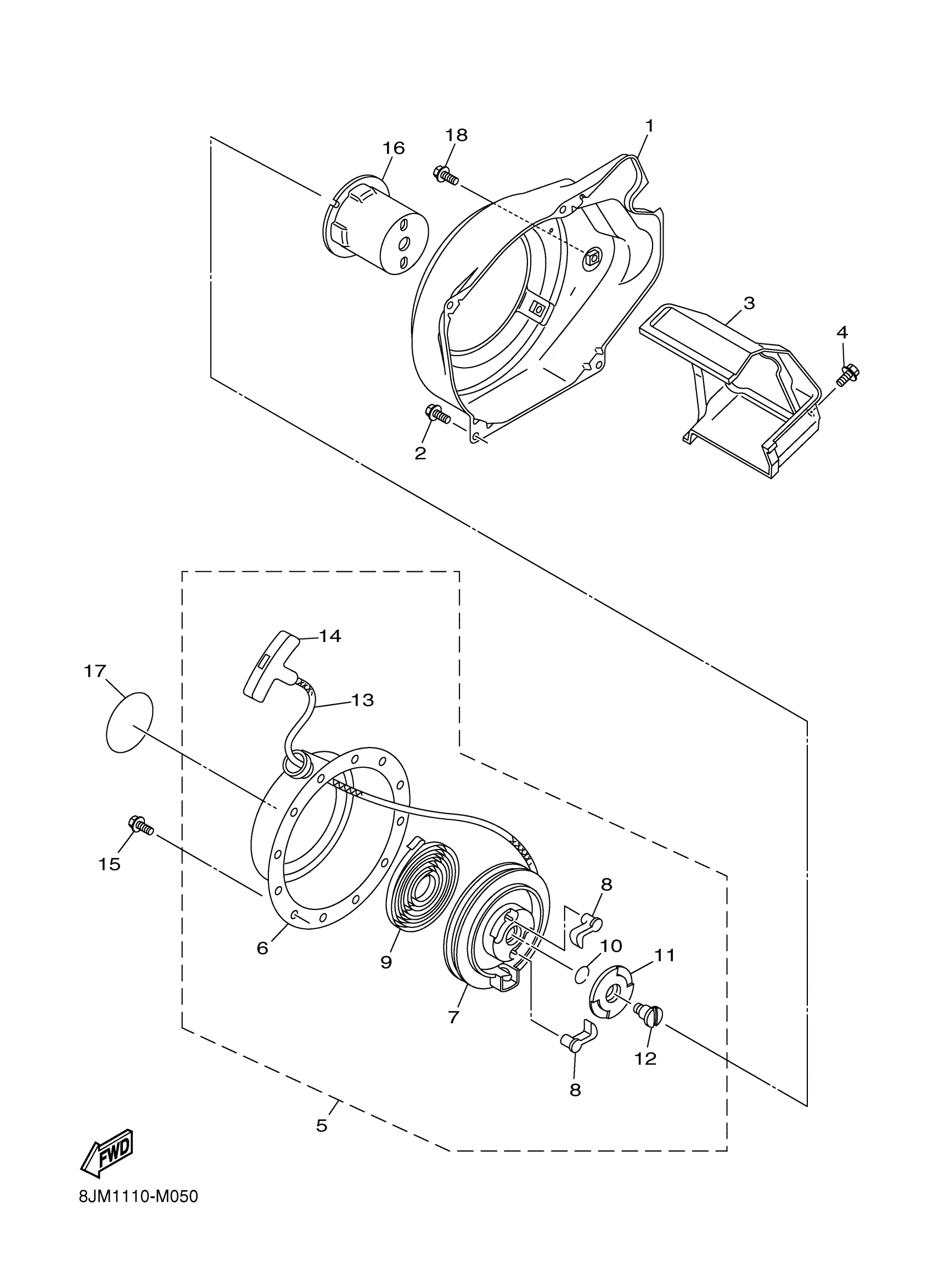

Yamaha SRX120DL (SRX120) 8JM1 2013 AIR SHROUD STARTER Diagram

#

Description
Price

1

CASE, FAN

7CN-E2621-01-00

$43.99

2

BOLT, FLANGE

95817-06012-00

$1.43

3

AIR SHROUD, CYLINDER 1

7CN-E2651-01-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.43

5

STARTER ASSY

7CN-E5710-12-00

Unavailable

6

CASE, STARTER

7CN-E5711-00-00

Unavailable

7

DRUM, SHEAVE

7CN-E5714-03-00

$24.99

8

PAWL, DRIVE

7CN-E5741-01-00

Unavailable

9

SPRING, STARTER

7CN-E5713-00-00

$13.49

10

SPRING, FRICTION

7CN-E5715-00-00

$1.46

11

PLATE, DRIVE

7CN-E5716-01-00

Unavailable

12

SCREW

7CN-E5793-00-00

$5.49

13

WIRE, STARTER

7CN-E5751-00-00

Unavailable

14

HANDLE, STARTER

7CN-E5755-00-00

Unavailable

15

BOLT, FLANGE

95817-06008-00

$8.49

16

PULLEY, STARTER

7CN-E5723-01-00

Unavailable

17

EMBLEM

7CL-E2629-10-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

$1.43
