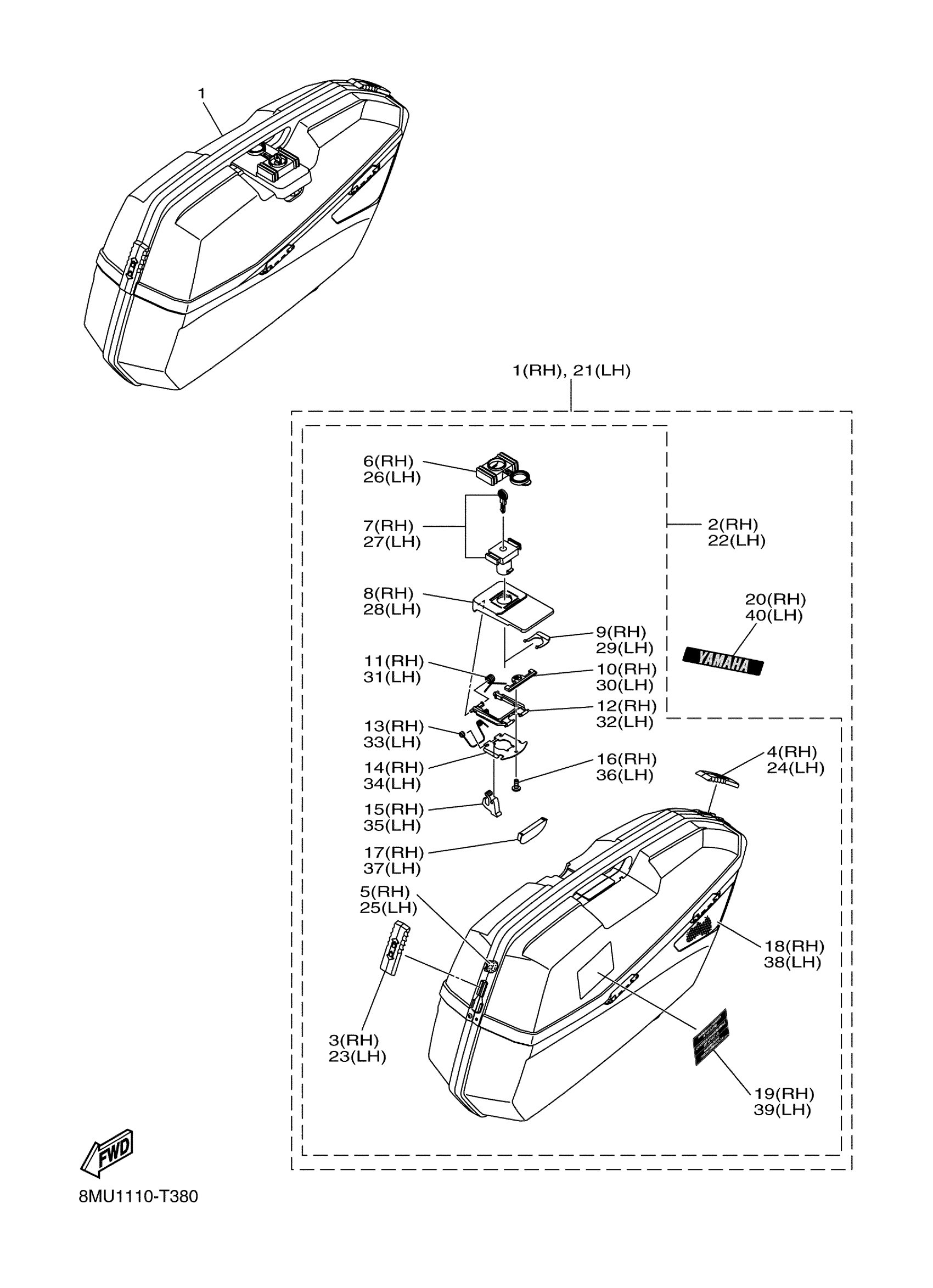

Yamaha SRT1NJL (SR VENTURE DX) 8MU1 2018 STORAGE BOX Diagram
#
1
BOX, SIDE 2
8MU-F846D-00-00
$418.99
2
. SIDE BOX ASSY, 2
8MU-F840W-00-00
Unavailable
3
BODY, LATCH 2
8MU-K7172-00-00
$4.99
4
BODY, LATCH 4
8MU-K7182-00-00
Unavailable
5
SEAL
8MU-F475M-00-00
Unavailable
6
COVER
8MU-F4796-00-00
$10.49
7
KEY SET (FOR SWTCH
8MU-H250A-01-00
Unavailable
8
HANDLE, LATCH
8MU-F389F-00-00
Unavailable
9
CLIP
8MU-F4387-00-00
Unavailable
10
RETAINER
8MU-H5757-00-00
$15.99
11
SPRING
8MU-F479A-00-00
$7.49
12
HINGE
8MU-F4859-00-00
Unavailable
13
SPRG. 2
8MU-F479E-00-00
Unavailable
14
PLATE, LOCK
8MU-F479K-00-00
Unavailable
15
HOOK, SEAT
8MU-F4754-00-00
Unavailable
16
SCREW, TAPPING
8JP-RA291-00-00
Unavailable
17
STOPPER
8MU-F4768-00-00
Unavailable
18
REFLECTOR, 2
8MU-H334B-00-00
Unavailable
19
.. LABEL
8MU-F415C-00-00
Unavailable
20
LABEL 1
8MU-F4875-00-00
Unavailable
21
BOX, SIDE 1
8MU-F846C-00-00
Unavailable
22
. SIDE BOX ASSY, 1
8MU-F840V-00-00
Unavailable
23
BODY, LATCH 1
8MU-K7171-00-00
Unavailable
24
BODY, LATCH 3
8MU-K7181-00-00
Unavailable
25
SEAL
8MU-F475M-00-00
Unavailable
26
COVER
8MU-F4796-00-00
$10.49
27
KEY SET (FOR SWTCH
8MU-H250A-01-00
Unavailable
28
HANDLE, LATCH
8MU-F389F-00-00
Unavailable
29
CLIP
8MU-F4387-00-00
Unavailable
30
RETAINER
8MU-H5757-00-00
$15.99
31
SPRING
8MU-F479A-00-00
$7.49
32
HINGE
8MU-F4859-00-00
Unavailable
33
SPRG. 2
8MU-F479E-00-00
Unavailable
34
PLATE, LOCK
8MU-F479K-00-00
Unavailable
35
HOOK, SEAT
8MU-F4754-00-00
Unavailable
36
SCREW, TAPPING
8JP-RA291-00-00
Unavailable
37
STOPPER
8MU-F4768-00-00
Unavailable
38
REFLECTOR 1
8MU-H333B-00-00
Unavailable
39
.. LABEL
8MU-F415C-00-00
Unavailable
40
LABEL 1
8MU-F4875-00-00
Unavailable
