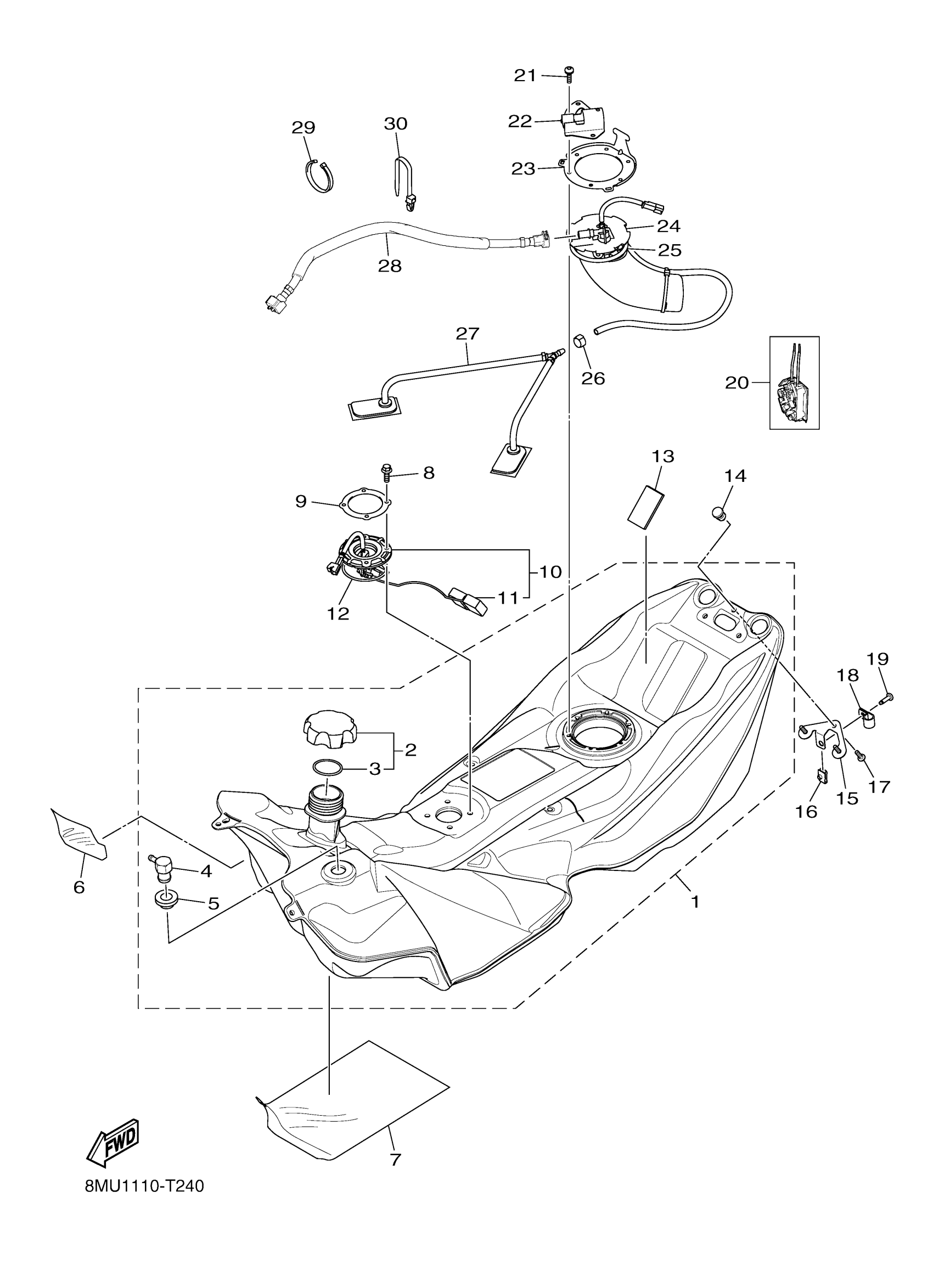

Yamaha SRT1NJL (SR VENTURE DX) 8MU1 2018 FUEL TANK 1 Diagram
#
1
FUEL TANK ASSY
8LN-F4100-00-00
Unavailable
2
CAP ASSY
8JP-F4610-00-00
$15.99
3
SEAL, GAS CAP
8JM-F4641-00-00
Unavailable
4
. VALVE, CHECK 1
8LN-F4362-00-00
Unavailable
5
GROMMET
8JP-E5366-00-00
$2.97
6
INSULATOR,FUEL TAN
8JP-F416F-01-00
$18.99
7
PROTECTOR,1
8JP-F476U-01-00
Unavailable
8
BOLT, FLANGE M5X0.8X16
8JP-RA178-00-00
Unavailable
9
PLATE, RETAINER
8JP-K8166-00-00
Unavailable
10
SENDER UNIT ASSY,
8JP-H5752-00-00
$209.99
11
FLOAT
8JP-H369N-00-00
Unavailable
12
O-RING, 46.9
8JP-RAF10-00-00
$11.49
13
PAD, BATTERY
8JP-H2121-00-00
$4.88
14
NUT, LATCH
8LN-K7193-00-00
$15.99
15
BRACKET, SEAT LOCK
8LN-F478X-00-00
$10.49
16
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
17
SCREW, 1
8JP-RA235-00-00
Unavailable
18
CLAMP, 21
8JP-RAB23-00-00
Unavailable
19
BOLT 1
8LN-K7537-00-00
Unavailable
20
SENDER ASSY
8LN-H5701-00-00
Unavailable
21
SCREW, M5X0.8X20
8JP-RA242-00-00
Unavailable
22
GUIDE, NOZZLE
8JP-F413K-00-00
Unavailable
23
BRACKET, FUEL PUMP
8JP-F4491-00-00
Unavailable
24
FUEL PUMP COMP.
8JP-E3907-00-00
Unavailable
25
O-RING
8JP-F4486-00-00
Unavailable
26
CLAMP, 25
8JP-RAB27-00-00
Unavailable
27
FILTER, FUEL
8JP-F4502-00-00
Unavailable
28
FUEL PIPE ASSY
8NF-F4310-00-00
Unavailable
29
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
29
CLAMP, 8 (11.75 INCH)
8JP-RAB10-00-00
Unavailable
30
CABLE TIE,PUSH MOUNT-XMAS CLIP
8JM-RAB02-00-00
Unavailable
