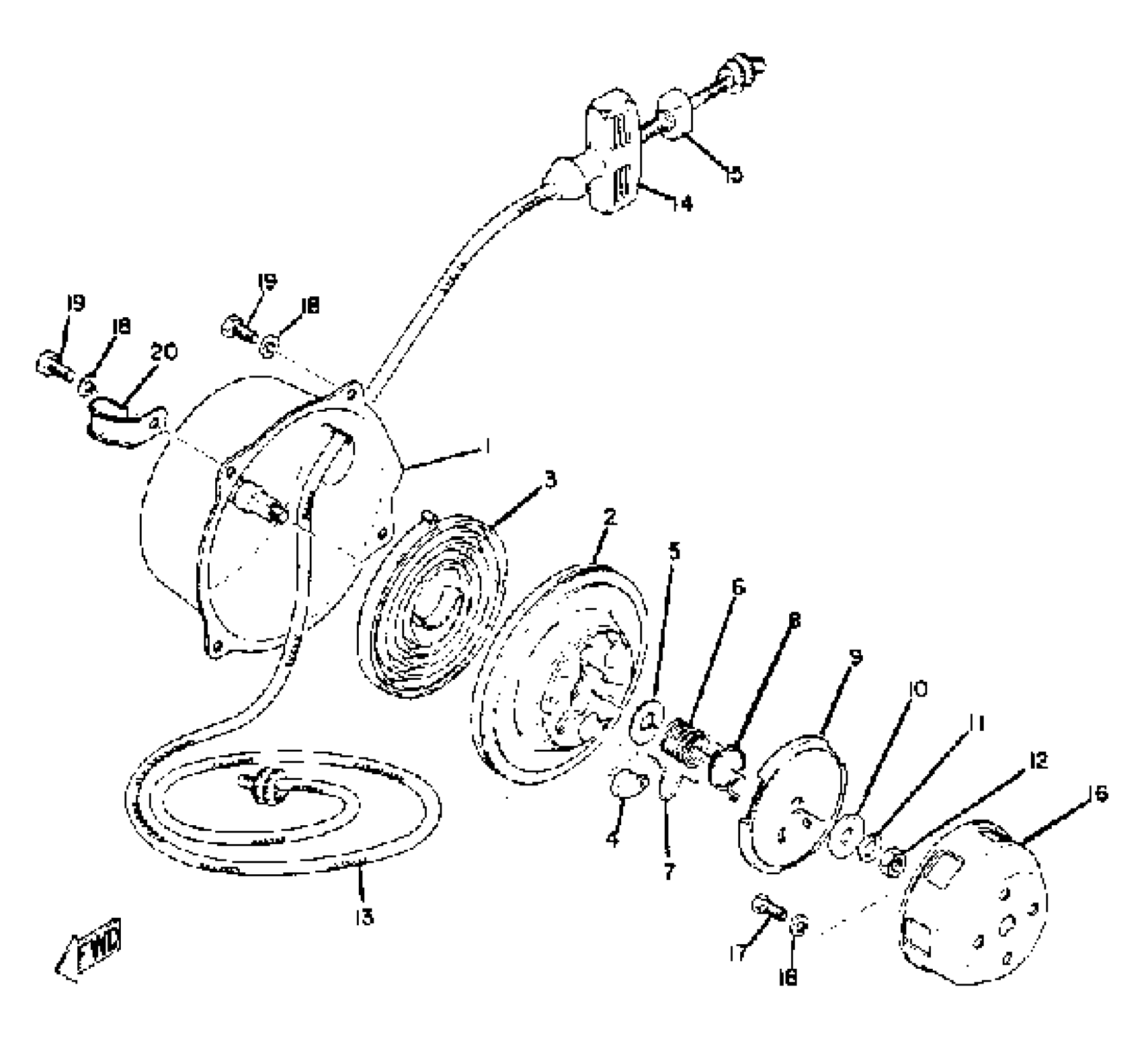

Yamaha SR643B 1973 STARTER Diagram

#

Description
Price

1

. DRUM, SHEAVE

812-15714-00-00

Unavailable

1

STARTER ASSEMBLY

(856-15710-01-00)

Unavailable

1

CASE, STARTER

(856-15711-00-00)

Unavailable

3

. SPRING, STARTER

802-15713-00-00

Unavailable

4

. PAWL, DRIVE

812-15741-00-00

Unavailable

5

WASHER, THRUST

(807-15719-00-00)

Unavailable

6

SPRING,DRIVE PLATE

626-15715-01-00

Unavailable

7

SPRING,RETURN

812-15784-00-00

Unavailable

8

. SPRING, RETURN

811-15734-00-00

Unavailable

9

. PLATE, DRIVE

812-15716-00-00

Unavailable

10

WASHER,FLAT

807-15726-01-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

. NUT

95380-08700-00

Unavailable

13

ROPE, STARTER

(856-15751-00-00)

Unavailable

14

. HANDLE, STARTER

807-15755-00-00

Unavailable

15

. CONNECTOR 1

619-15756-00-00

Unavailable

16

PULLEY, STARTER

(858-15723-00-00)

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

CLAMP

90465-06013-00

Unavailable
