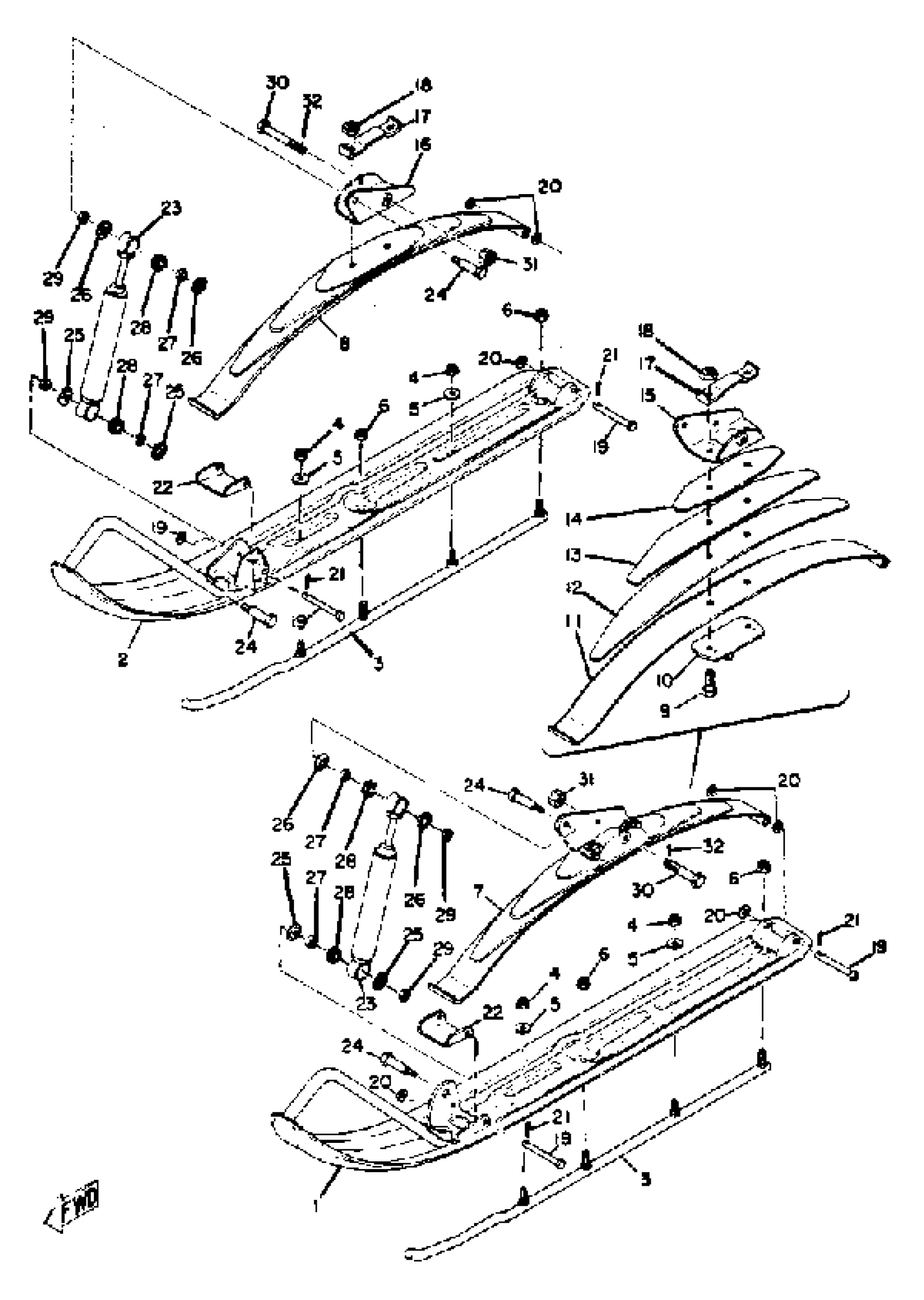

Yamaha SR643B 1973 SKI Diagram
#
1
SKI 1
(856-23710-01-00)
Unavailable
2
SKI 2
(856-23720-01-00)
Unavailable
3
RUNNER 1
(856-23731-01-00)
Unavailable
4
NUT, NYLON
95707-06300-00
$3.50
5
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
6
NUT, U
95617-08100-00
$9.49
7
SPRING ASSEMBLY 1
(836-23760-00-00)
Unavailable
8
SPRING ASSEMBLY 2
(836-23770-00-00)
Unavailable
9
. BOLT
90101-10060-00
Unavailable
10
. SEAT, SPRING 1
802-23768-00-00
Unavailable
11
LEAF 1
(810-23761-00-00)
Unavailable
12
LEAF 2
(810-23762-00-00)
Unavailable
13
LEAF 3
(810-23763-00-00)
Unavailable
14
LEAF 5
(810-23771-00-00)
Unavailable
15
SADDLE 1
(829-23766-00-00)
Unavailable
16
SADDLE 2
(829-23776-00-00)
Unavailable
17
. WASHER, SPEC''L SHAP
90209-10069-00
Unavailable
18
NUT(6TD)
95337-10600-00
Unavailable
19
PIN, CLEVIS
90240-08019-00
Unavailable
20
WASHER, PLATE(49E)
90201-087H6-00
Unavailable
21
PIN COTTER
91490-30025-00
Unavailable
22
PLATE, WEAR 1
802-23735-00-00
Unavailable
23
SHOCK ABSORBER ASSEMBLY
(856-23350-00-00)
Unavailable
24
BOLT
(90109-08014-00)
Unavailable
25
WASHER, CONICAL SPR
(90208-12006-00)
Unavailable
26
WASHER, CONICAL SPR
(90208-09005-00)
Unavailable
27
COLLAR
(90387-12104-00)
Unavailable
28
BUSH, SPEC''L RUBBER
(90385-12013-00)
Unavailable
29
NUT, U
95617-08100-00
$9.49
30
BOLT, WITH HOLE
90102-10023-00
Unavailable
31
NUT, SLOTTED
95306-10900-00
Unavailable
32
PIN, COTTER
91490-20025-00
Unavailable
