FUEL TANK

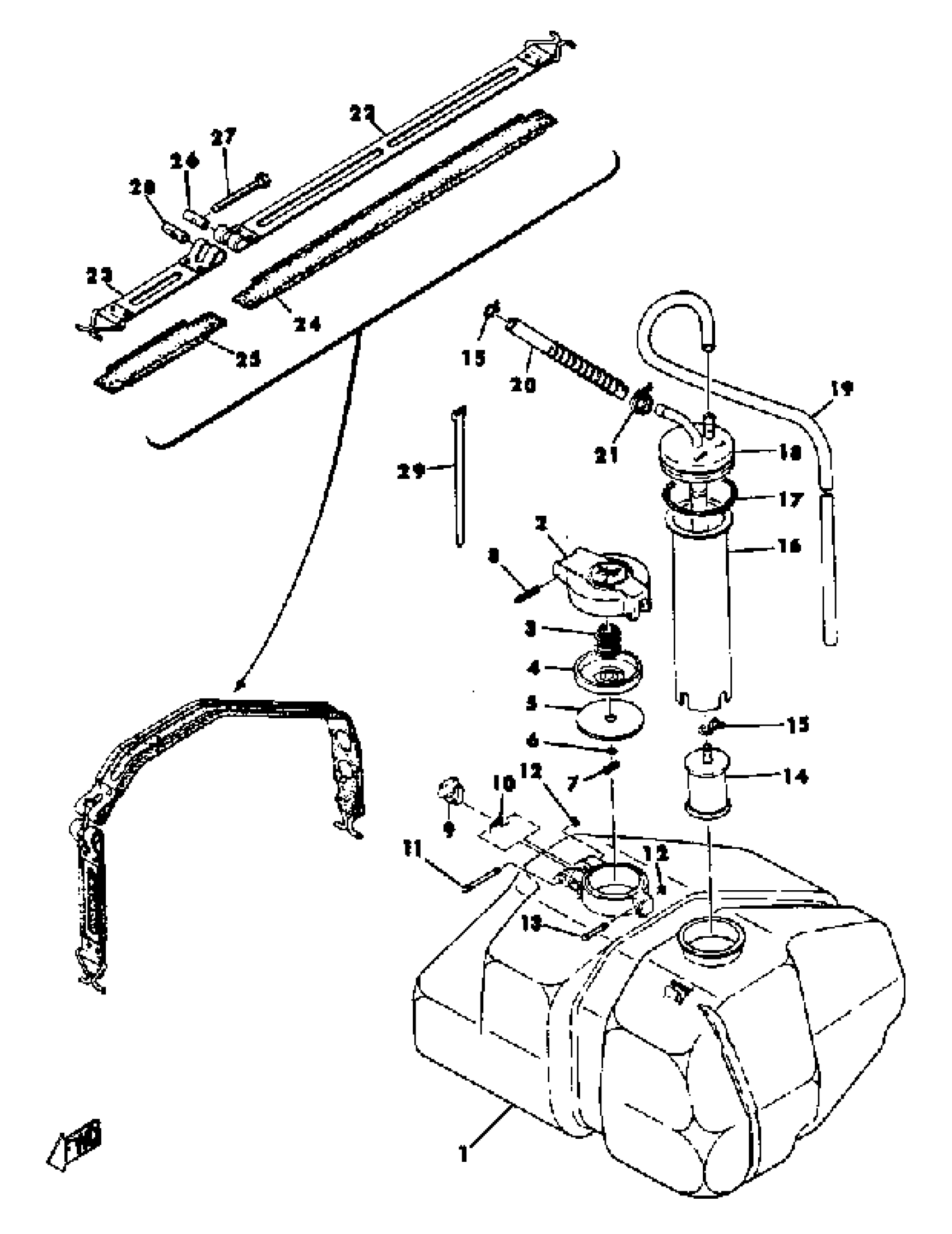

Yamaha SR643B 1973 FUEL TANK Diagram
#
1
FUEL TANK
853-24111-01-00
Unavailable
2
BODY, CAP
(848-24611-00-00)
Unavailable
3
SPRING, CAP
90501-20130-00
$8.49
4
DISK,CAP
813-24613-01-00
$20.99
5
GASKET, CAP
256-24612-00-00
Unavailable
6
O-RING (256)
93210-04122-00
$8.49
7
PIN, SPRING
91690-30016-00
Unavailable
8
PIN, SPRING
91609-25032-00
$2.49
9
HOOK
83M-24628-00-00
$24.99
10
SPRING, TORSION (813-24637-00)
90508-08003-00
Unavailable
11
PIN (813)
90249-03017-00
$7.49
12
CIRCLIP (604)
93430-02001-00
$8.49
13
PIN, SPEC''L SHAPE
90249-03016-00
Unavailable
14
FILTER ASSEMBLY
(856-24560-00-00)
Unavailable
15
CLIP (8J7)
90467-11009-00
$10.49
16
PIPE, SUCTION 2
(829-24336-00-00)
Unavailable
17
SPRING, TENSION (8R4)
90506-06261-00
Unavailable
18
PIPE, SUCTION 1
853-24335-00-00
Unavailable
19
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
20
HOSE
(90446-11027-00)
Unavailable
21
CLIP(3BM)
90467-10135-00
Unavailable
22
BAND, TNK FITTING 1
853-24173-00-00
Unavailable
23
BAND, TNK FITTING 2
(836-24199-00-00)
Unavailable
24
DAMPER, LOCATING 3
(853-24183-00-00)
Unavailable
25
DAMPER, LOCATING 4
(813-24184-00-00)
Unavailable
26
CLAMP
806-24135-00-00
Unavailable
27
SCREW, SPEC''L SHAPE (821-24176-00)
90149-05006-00
Unavailable
28
NUT, SPEC''L SHAPE (806-24146-00)
90179-05030-00
Unavailable
29
BAND, SWITCH CORD
437-83936-11-00
Unavailable
