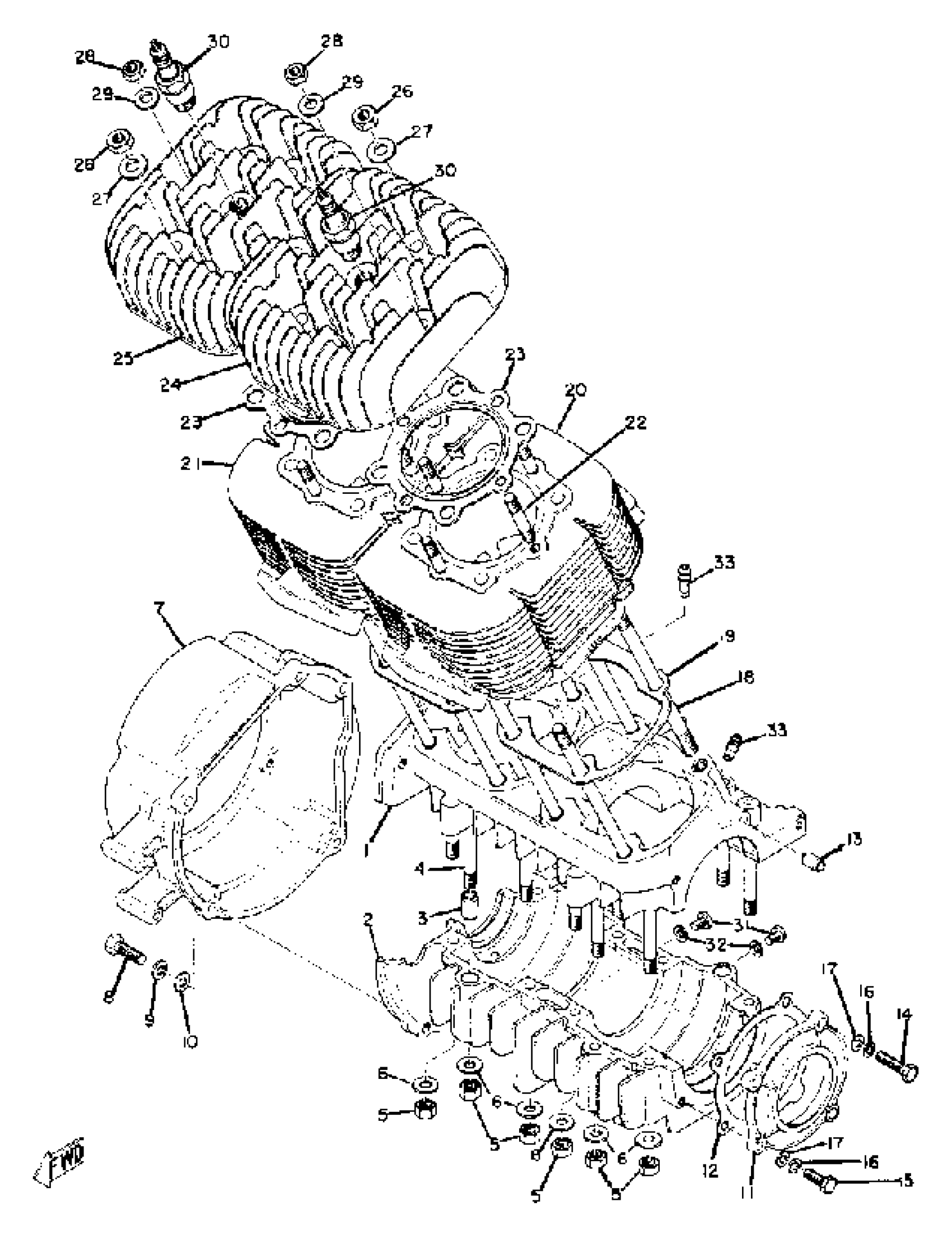

Yamaha SR643B 1973 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(858-15100-00-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, STUD (834-15192-00)

90116-08061-00

Unavailable

5

NUT(6L2)

95333-08600-00

$2.49

6

WASHER, PLAIN

92990-08200-00

Unavailable

7

COVER, CRANKCASE R

(836-15421-00-00)

Unavailable

8

BOLT (682)

97013-08025-00

$8.49

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

WASHER, PLAIN

92990-08200-00

Unavailable

11

HOUSING, OIL SEAL

(858-15396-00-00)

Unavailable

12

GASKET, O/SL HSNG

858-15397-00-00

Unavailable

13

PIN, DOWEL(3XW)

91808-16023-00

$8.49

14

BOLT(JF7)

97080-06030-00

$5.49

15

BOLT(7U8)

97080-06020-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

BOLT, STUD (90116-10093)

90116-10094-00

Unavailable

19

GASKET, CYLINDER

(858-11351-00-00)

Unavailable

20

CYLINDER 1

(858-11311-00-00)

Unavailable

21

CYLINDER 2

(858-11321-00-00)

Unavailable

22

BOLT, STUD

(90116-08049-00)

Unavailable

23

GASKET, CYLINDER HEAD 1

834-11181-00-00

Unavailable

24

HEAD, CYLINDER 1

(858-11111-00-00)

Unavailable

25

HEAD, CYLINDER 2

(858-11121-00-00)

Unavailable

26

NUT(3BM)

95314-10600-00

Unavailable

27

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

28

NUT(6L2)

95333-08600-00

$2.49

29

WASHER, PLAIN

92990-08200-00

Unavailable

30

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

Unavailable

30

CHAMPION N3G 10PK

(CMP-N3G00-00-00)

Unavailable

30

BR10EIX NGK SPLUG 4PK

BR1-0EIX0-00-00

Unavailable

31

SCREW PAN HEAD

98580-06010-00

Unavailable

32

GASKET 838153840000

90430-06016-00

Unavailable

33

JOINT, BREATHER

J38-11116-00-00

Unavailable
