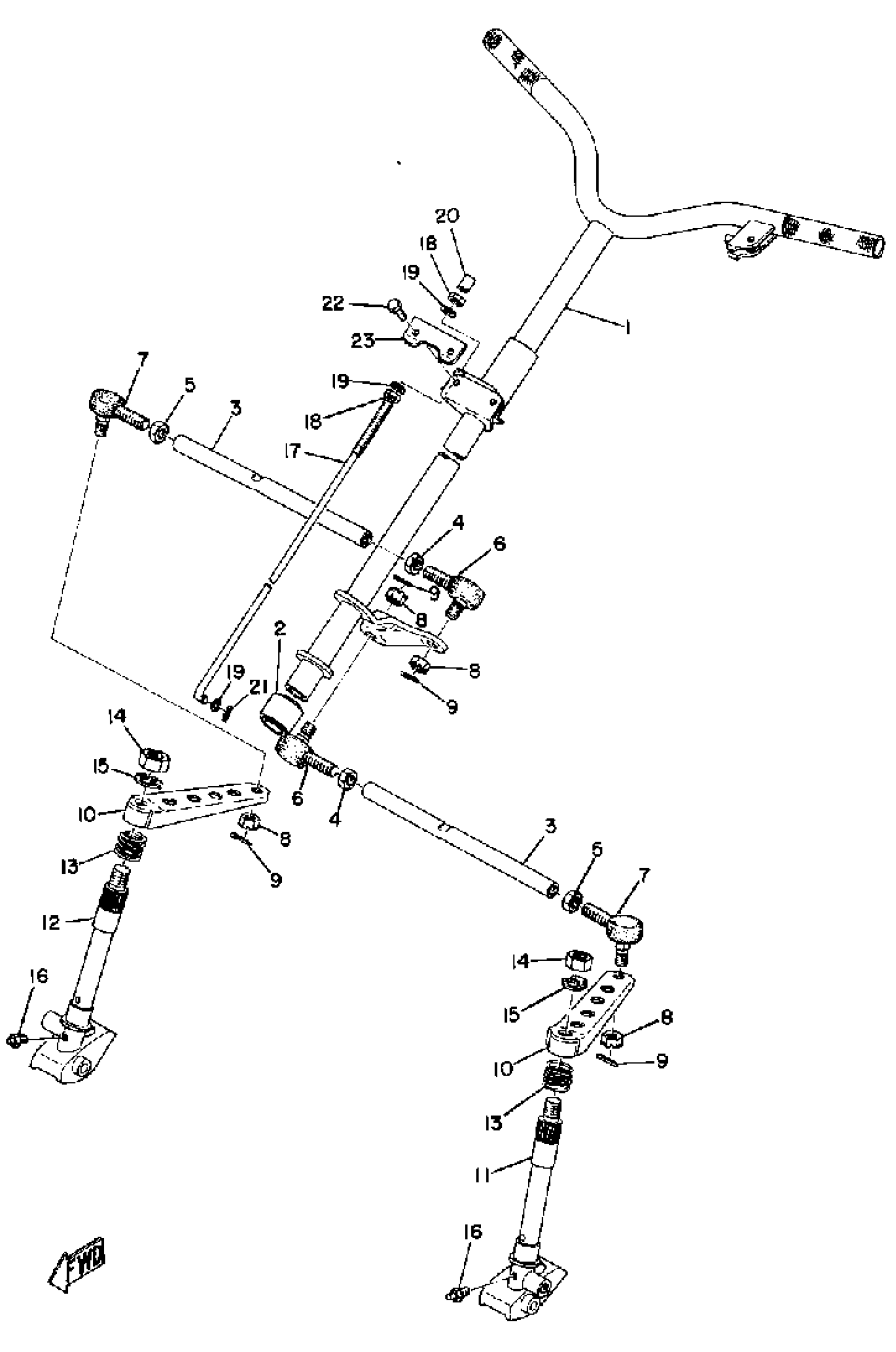

Yamaha SR643 1975 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

(836-23811-01-00)

Unavailable

2

BEARING, STRG LOWER

(806-23875-00-00)

Unavailable

3

ROD, STEERING RELAY

(826-23821-00-00)

Unavailable

4

NUT, HEXAGON SMALL

95317-12700-00

$8.49

5

NUT (821-23834-00)

90170-12054-00

$8.49

6

JOINT, UNIVERSAL 1

(821-23841-90-00)

Unavailable

7

JOINT, UNIVERSAL 2

(821-23845-90-00)

Unavailable

8

NUT, CASTLE

90171-10002-00

Unavailable

9

PIN, COTTER(6L5)

91490-25030-00

$3.77

10

ARM, OUTSIDE 1

(810-23851-00-00)

Unavailable

11

COLUMN, SKI 1

(816-23853-00-00)

Unavailable

12

COLUMN, SKI 2

(816-23854-00-00)

Unavailable

13

SPRING, COMPRESSION

90501-35154-00

Unavailable

14

NUT, HEXAGON

95337-12600-00

$8.49

15

WASHER, LOCK (810-23857-00)

90215-12031-00

Unavailable

16

NIPPLE, GREASE

93700-06M03-00

Unavailable

17

BAR, TENSION

813-23861-00-00

Unavailable

18

NUT(JN5)

95317-06700-00

Unavailable

19

WASHER(6TA)

92907-06200-00

Unavailable

20

CAP, TENSION BAR

(818-23862-00-00)

Unavailable

21

CLIP (156-83525-00)

90468-10050-00

Unavailable

22

BOLT, HEXAGON

97017-06016-00

Unavailable

23

WASHER, LOCK 1

(810-23894-00-00)

Unavailable
