FUEL TANK

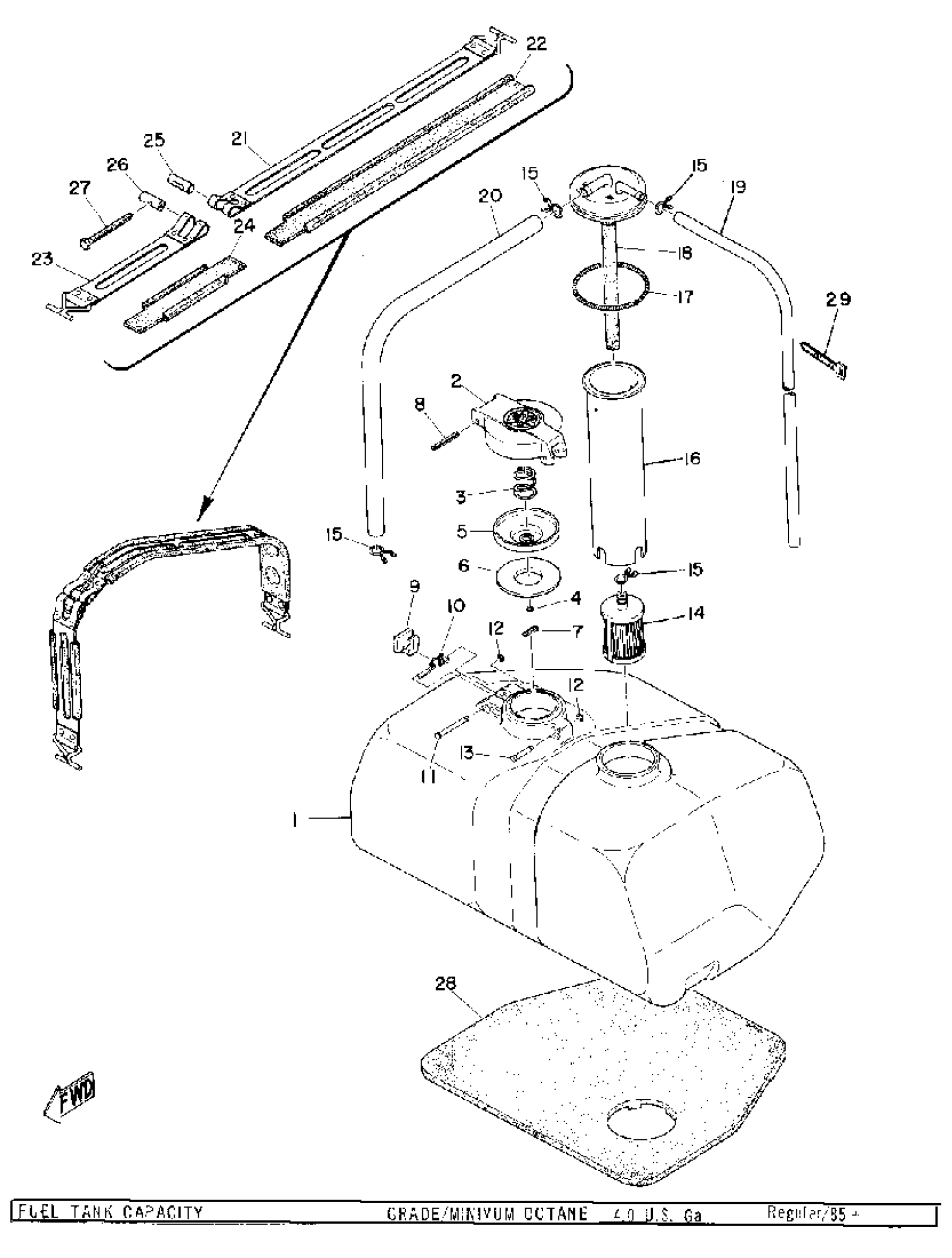

Yamaha SR643 1975 FUEL TANK Diagram
#
1
FUEL TANK
(836-24111-00-00)
Unavailable
2
BODY, CAP
8A5-24611-00-00
Unavailable
3
SPRING, CAP
90501-20130-00
$8.49
4
O-RING (256)
93210-04122-00
$8.49
5
DISK,CAP
813-24613-01-00
$20.99
6
GASKET, CAP
256-24612-00-00
Unavailable
7
PIN, SPRING
91690-30016-00
Unavailable
8
PIN, SPRING
91609-25032-00
$2.49
9
HOOK
83M-24628-00-00
$24.99
10
SPRING, TORSION (813-24637-00)
90508-08003-00
Unavailable
11
CIRCLIP (604)
93430-02001-00
$8.49
12
CIRCLIP (604)
93430-02001-00
$8.49
13
PIN, SPEC''L SHAPE
90249-03016-00
Unavailable
14
FILTER ASSY
8H5-24560-00-00
Unavailable
15
CLIP (8J7)
90467-11009-00
$10.49
16
PIPE, SUCTION 2
(829-24336-00-00)
Unavailable
17
SPRING, TENSION (8R4)
90506-06261-00
Unavailable
18
PIPE, SUCTION 1
(829-24335-00-00)
Unavailable
19
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
20
PIPE, FUEL 1
(806-24311-00-00)
Unavailable
21
BAND, TNK FITTING 1
(836-24173-00-00)
Unavailable
22
DAMPER, LOCATING 3
(829-24183-00-00)
Unavailable
23
BAND, TNK FITTING 2
(836-24199-00-00)
Unavailable
24
DAMPER, LOCATING 4
(813-24184-00-00)
Unavailable
25
NUT, SPEC''L SHAPE (806-24146-00)
90179-05030-00
Unavailable
26
CLAMP
806-24135-00-00
Unavailable
27
SCREW, SPEC''L SHAPE (821-24176-00)
90149-05006-00
Unavailable
28
DAMPER, LOCATING 1
(829-24181-00-00)
Unavailable
29
BAND, SWITCH CORD
437-83936-01-00
Unavailable
