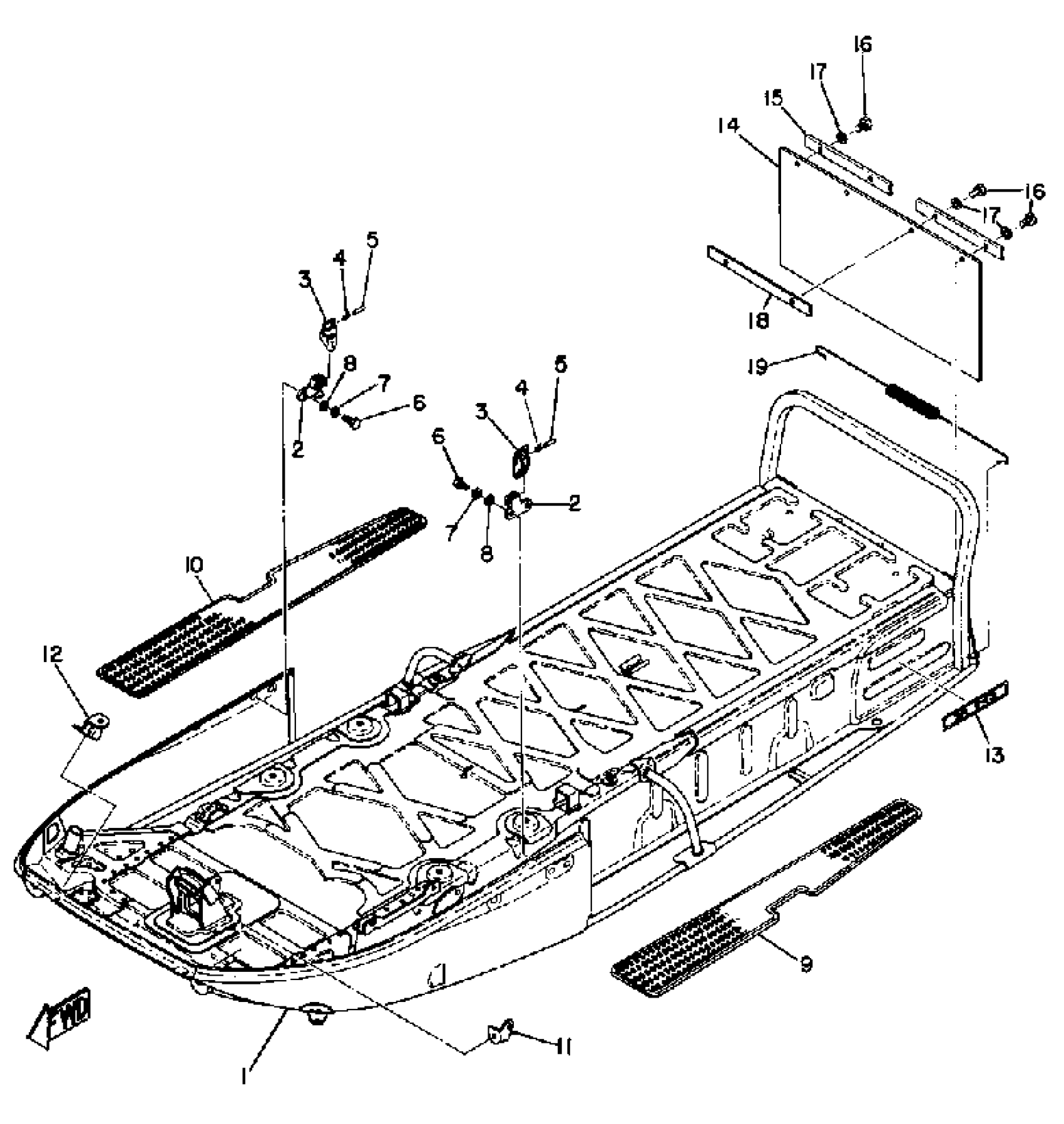

Yamaha SR643 1975 FRAME Diagram

#

Description
Price

1

LATCH ASSEMBLY

807-77170-00-00

Unavailable

1

FRAME

(836-21910-00-00)

Unavailable

3

. LEVER, LATCH 1

806-77173-00-00

Unavailable

4

. SPRING, TORSION

90508-10012-00

Unavailable

5

. PIN, SPECIAL SHAPE

90249-04068-00

Unavailable

6

BOLT, HEXAGON

97313-05016-00

Unavailable

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

WASHER, PLATE 8067717800

90201-05029-00

$8.49

9

COVER, FOOTREST

(806-27413-00-00)

Unavailable

10

COVER, FOOTREST

(806-27423-00-00)

Unavailable

11

BRACKET, CHAIN HSNG

(836-21939-00-00)

Unavailable

12

STAY, MUFFLER 2

(836-21446-00-00)

Unavailable

13

EMBLEM 4

(836-77354-00-00)

Unavailable

14

FLAP

(836-77595-00-00)

Unavailable

15

PLATE, FLAP 1

(807-77593-00-00)

Unavailable

16

BOLT(3DM)

97024-06020-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

PLATE, FLAP 2

(836-77594-00-00)

Unavailable

19

STOPPER, FLAP

(836-77596-00-00)

Unavailable
