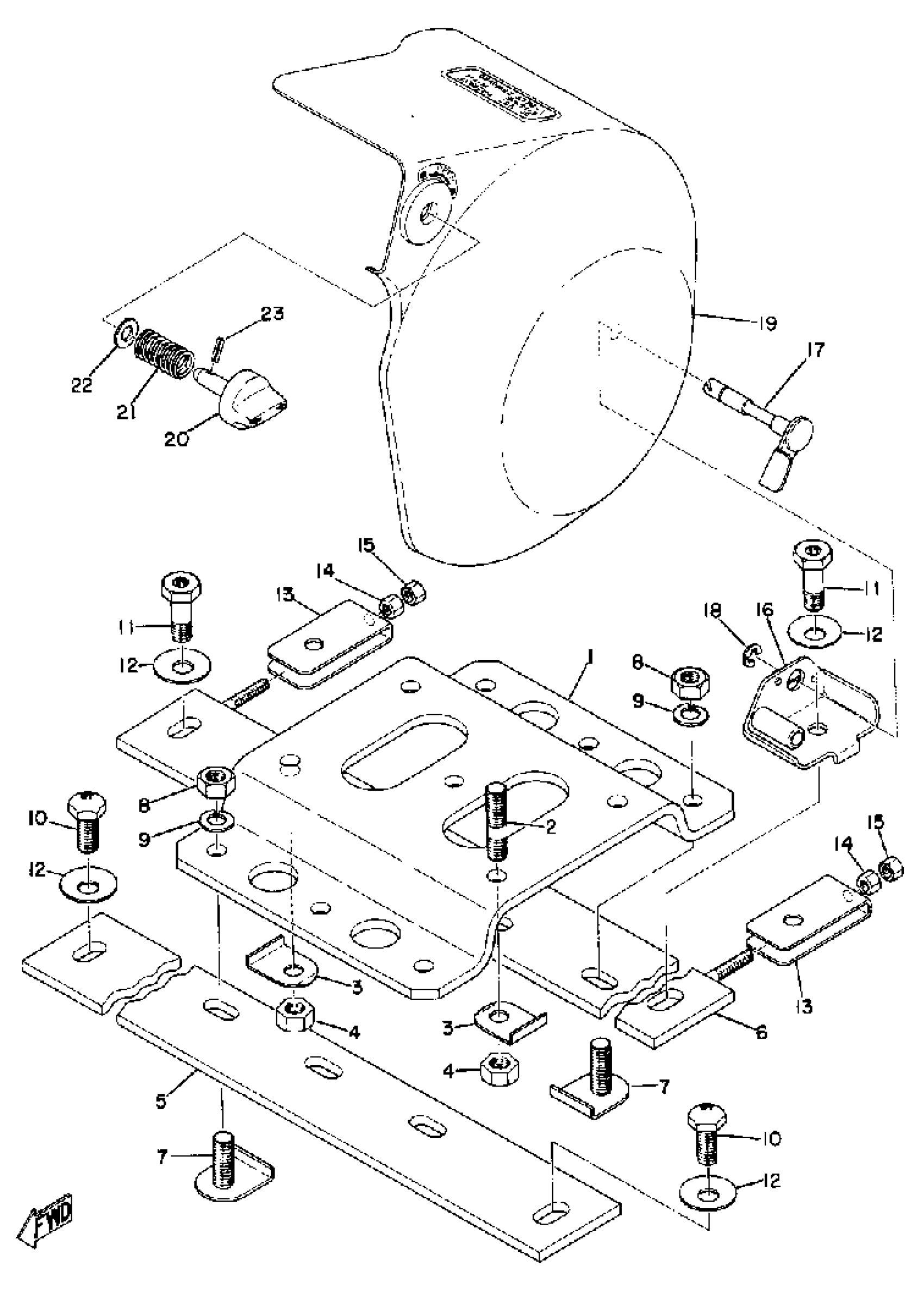

Yamaha SR643 1975 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

(836-21411-00-00)

Unavailable

2

BOLT, STUD

(90116-10084-00)

Unavailable

3

WASHER, LOCK

(90215-10076-00)

Unavailable

4

NUT(3BM)

95314-10600-00

$2.39

5

BRACKET, ENGINE 2

(835-21419-00-00)

Unavailable

6

BRACKET, ENGINE 3

(835-21429-00-00)

Unavailable

7

BOLT, ENG MNTNG 4

(834-21484-00-00)

Unavailable

8

NUT, SELF LOCKING

90185-10031-00

Unavailable

9

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

10

BOLT, DOME HEAD

(90106-10015-00)

Unavailable

11

BOLT

(90101-10057-00)

Unavailable

12

WASHER, CONICAL SPR

90208-10013-00

Unavailable

13

PLATE, ENGINE ADJUSTING

(834-21475-00-00)

Unavailable

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

NUT(650)

95380-06700-00

$8.49

16

BRACKET 1

(829-77315-00-00)

Unavailable

17

ARM, FITTING

(829-77314-00-00)

Unavailable

18

CIRCLIP(53L)

99001-06600-00

Unavailable

19

GUARD, DRIVE

(829-77311-00-00)

Unavailable

20

KNOB

(829-77324-00-00)

Unavailable

21

UNAVAILABLE IN PRICE BOOK (806-88325-00)

90501-10103-00

Unavailable

22

WASHER, PLATE

90201-08104-00

Unavailable

23

PIN SPRING(664)

91690-40018-00

Unavailable
