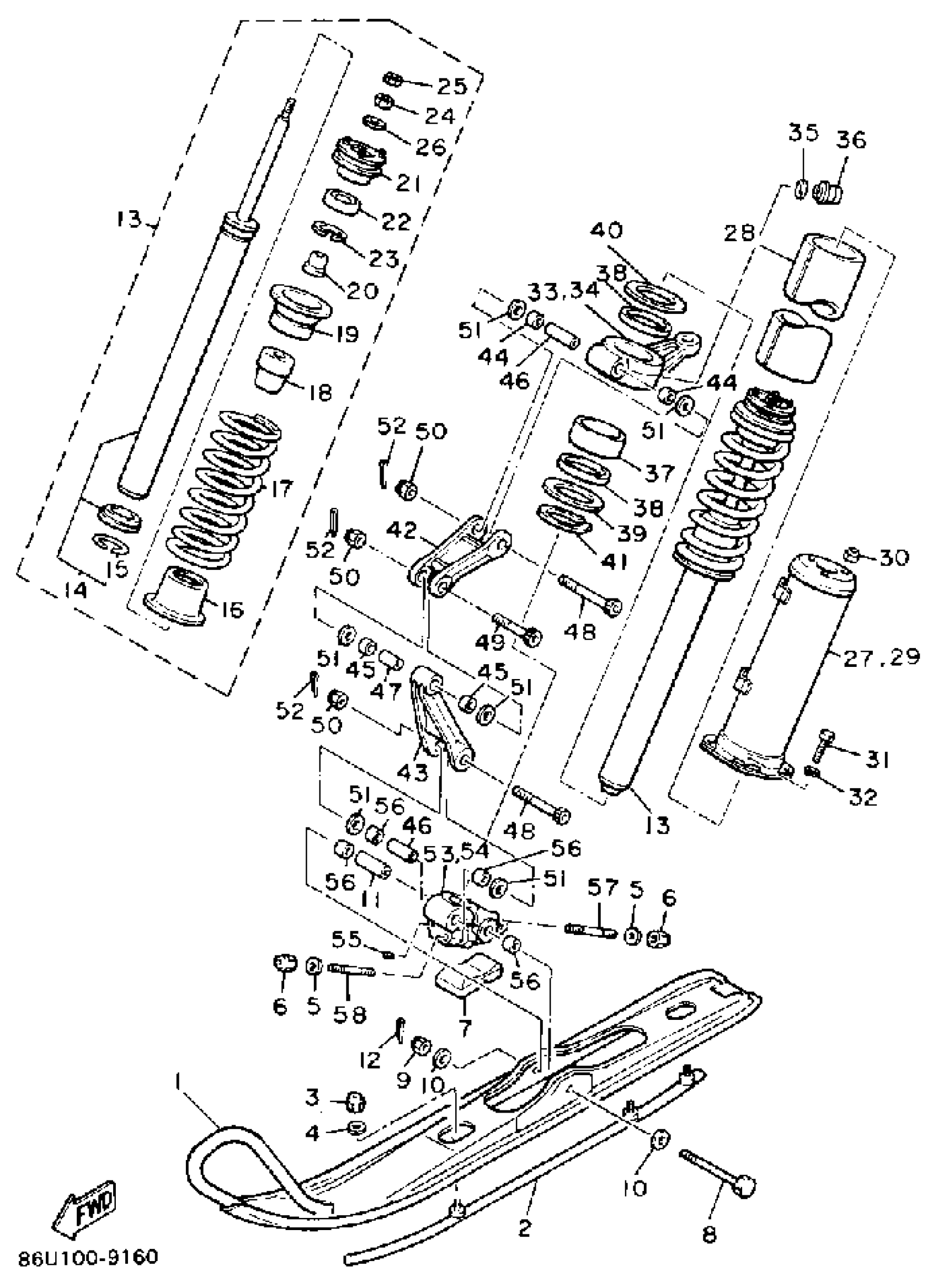

Yamaha SR540RSR 1991 SKI Diagram
#
1
SKI COMP. 1
86M-23710-00-00
Unavailable
2
SKI RUNNER, 1
82W-23731-01-XX
Unavailable
3
NUT, U
95617-08100-00
$9.49
4
WASHER(6TA)
92907-08600-00
$3.03
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
NUT, NYLON
95717-08300-00
$2.70
7
STOPPER 1
82M-23743-00-00
Unavailable
8
BOLT, WITH HAUL (31A)
90102-10050-00
$18.99
9
NUT, NYLON
95707-10300-00
$8.49
10
WASHER(6TA)
92907-10600-00
$8.49
11
COLLAR (8V0)
90387-106J3-00
$17.99
12
PIN, COTTER
91490-20025-00
$1.99
13
ABSORBER ASSEMBLY 1
84L-2376A-00-00
Unavailable
14
. DAMPER SUB-ASSEMBLY
84L-22401-00-00
Unavailable
15
. CIRCLIP, OUTER
93440-36087-00
Unavailable
16
. SEAT, SPRING 2
8L9-23777-00-00
Unavailable
17
SPRING, COMPRESSION (8L9)
90501-75612-00
Unavailable
18
. BUMP, STOP
8L0-22493-00-00
Unavailable
19
PLATE, BACK UP
8AB-23788-00-00
Unavailable
20
. COLLAR
90387-100A5-00
Unavailable
21
. HOLDER, BEARING
8L0-2376H-00-00
Unavailable
22
BEARING(3DL)
93306-20226-00
Unavailable
23
CIRCLIP(47Y)
99009-35500-00
Unavailable
24
. NUT
90170-08220-00
Unavailable
25
NUT(6L2)
95333-08600-00
Unavailable
26
WASHER, PLATE (4W3)
90201-086A3-00
Unavailable
27
HOLDER, ABSORBER
8L9-2376J-00-00
Unavailable
28
PROTECTOR
8L0-2376R-00-00
Unavailable
29
PROTECTOR 3
8M6-77553-00-00
Unavailable
30
NUT, SELF-LOCKING
95617-06100-00
Unavailable
31
BOLT, HEXAGON
97017-06020-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
ARM, OUTSIDE 1
8U7-23851-00-00
Unavailable
34
ARM, OUTSIDE 2
8U7-23852-00-00
Unavailable
35
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
36
NIPPLE, GREASE
93700-06M03-00
Unavailable
37
BUSH, BIMETAL FORMED (8U7)
90384-53175-00
Unavailable
38
OIL SEAL (8U7)
93109-53036-00
Unavailable
39
WASHER, PLATE (8L9)
90201-536A1-00
Unavailable
40
WASHER, PLATE(8W1)
90201-535H6-00
Unavailable
41
CIRCLIP (8L9)
93410-52061-00
Unavailable
42
ARM, FRONT 1
8L0-2382E-01-00
Unavailable
43
ARM, FRONT 2
8L0-2382F-00-00
Unavailable
44
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
45
BUSH, BIMETAL FORMED (8L0)
90384-14096-00
Unavailable
46
COLLAR(89A)
90387-101Y9-00
Unavailable
47
COLLAR (8L0)
90387-100A4-00
Unavailable
48
BOLT, WITH HOLE (8L0)
90102-10039-00
Unavailable
49
BOLT, WITH HOLE
90102-10038-00
Unavailable
50
NUT, NYLON
95707-10300-00
$8.49
51
WASHER PLATE 626441260000
90202-14037-00
Unavailable
52
PIN, COTTER
91490-20025-00
$1.99
53
BRACKET 1
84M-2376E-00-00
Unavailable
54
BRACKET 2
84M-2377E-00-00
Unavailable
55
BOLT, SET (8K2)
90113-06039-00
Unavailable
56
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
