1991 Yamaha SR540RSR Handle Switch - Lever Diagram

← All diagrams

Find the part on the Handle Switch - Lever diagram for your 1991 Yamaha SR540RSR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

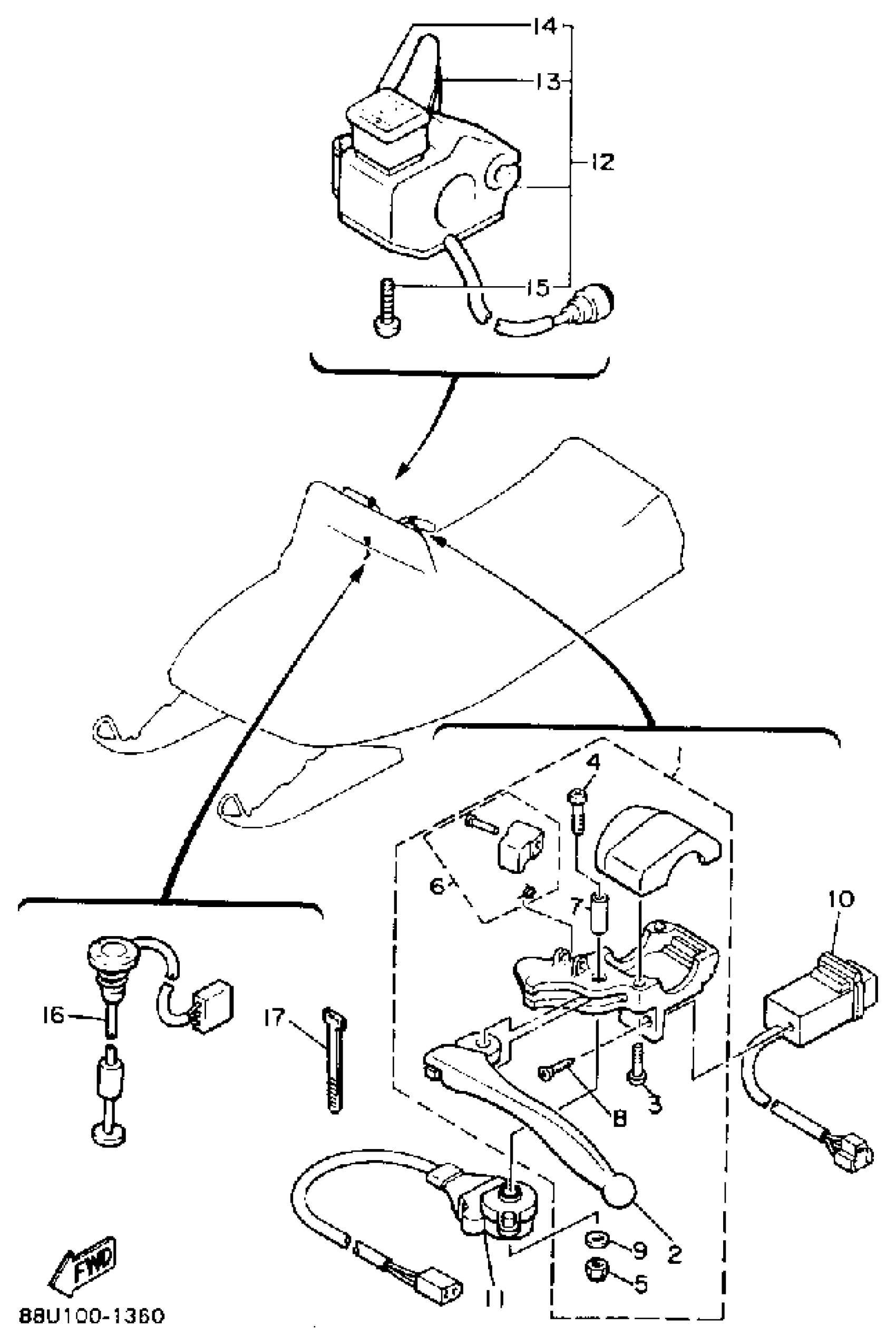

1991 Yamaha SR540RSR Handle Switch - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

1
Out of stock

2

LEVER 1

8H8-83912-00-00

1
Out of stock

3

SCREW, PAN HEAD(41N)

90157-05057-00

—
Out of stock

4

SCREW

8R4-82113-00-00

—
Out of stock

5

NUT, NYLON

95707-05300-00

1
Out of stock

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

1
Out of stock

7

COLLAR, LEVER

802-83913-00-00

—
Out of stock

8

. SCREW, TAPPING

97780-30312-00

1
Out of stock

9

. WASHER, PLAIN

92990-05200-00

1
Out of stock

10

BEAM SWITCH ASSY

8H8-83950-01-00

1
Out of stock

11

STOP SWITCH ASSY

88R-82530-00-00

1
Out of stock

12

LEVER HOLDER ASSEMBLY (RIGHT)

84R-82720-00-00

1
Out of stock

13

LEVER, THROTTLE

8V0-42138-00-00

1
Out of stock

14

. ENGINE STOP SWITCH ASSEMBLY

84R-82575-09-00

1
Out of stock

15

SCREW, ADJUSTING

8R6-83928-00-00

1
Out of stock

16

OIL LEVEL GAUGE ASSY

4HV-85720-03-00

—
Out of stock

17

BAND

341-26397-01-00

1
Out of stock
