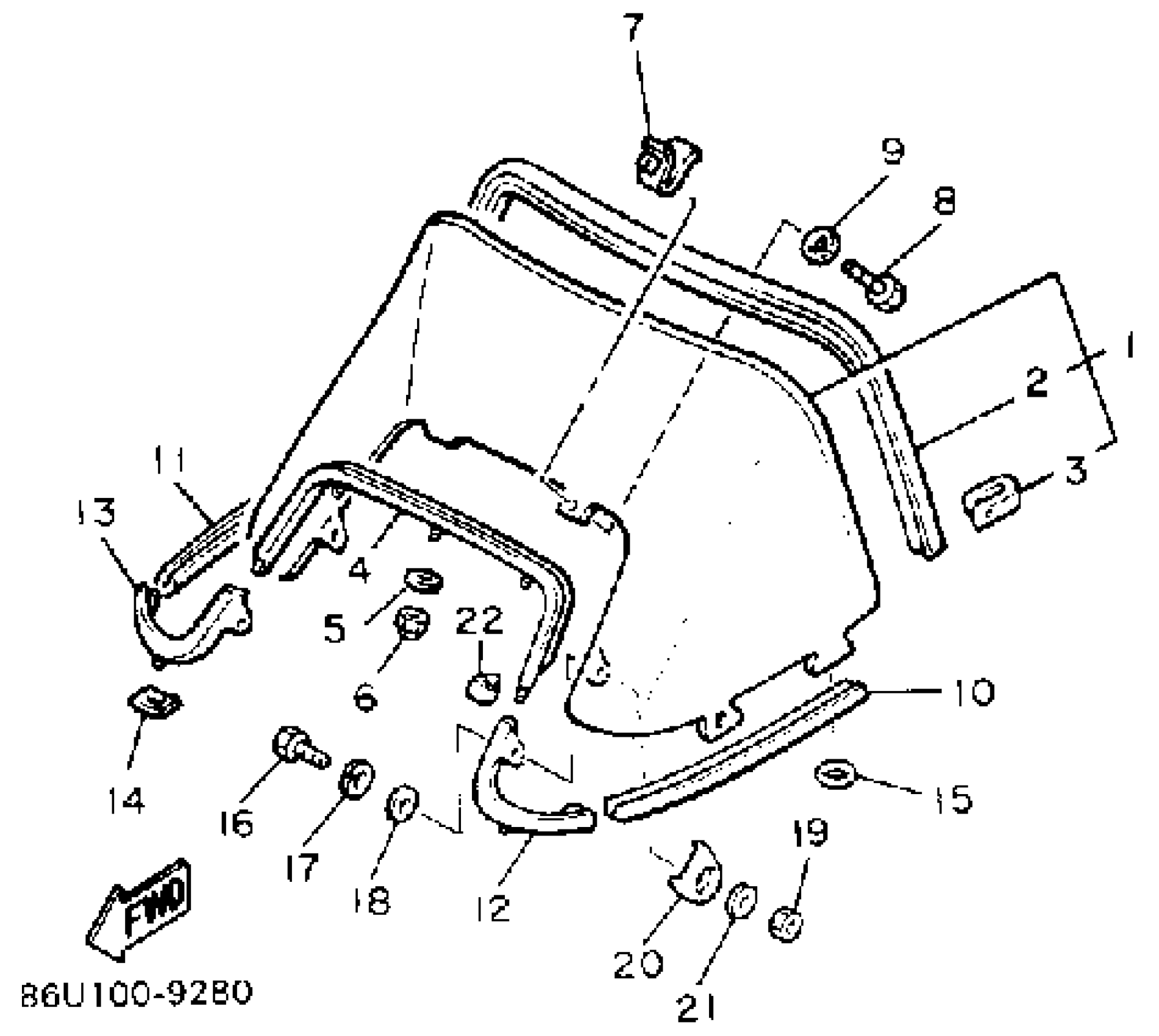

Yamaha SR540P (SRV) 1990 WINDSHIELD Diagram

#

Description
Price

1

WINDSHIELD (8L0-77210-00)

8L0-77210-00-XX

Unavailable

2

TRIM,UPPER

87K-77213-00-00

Unavailable

3

. FASTENER

80V-77223-00-00

Unavailable

4

TRIM, LOWER

8L0-77214-00-00

Unavailable

5

WASHER, PLAIN (646)

92990-05600-00

$0.80

6

NUT, NYLON

95707-05300-00

$4.24

7

BRACKET, WNDSHLD R

8K4-77222-00-00

Unavailable

8

BOLT(3JP)

97017-06010-00

$3.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

TRIM 3

8L0-77215-00-00

Unavailable

11

TRIM 4

8L0-77216-00-00

Unavailable

12

TRIM 5

8L0-77225-00-00

Unavailable

13

TRIM 6

8L0-77226-00-00

Unavailable

14

NUT, SPRING(8AJ)

90183-05068-00

$10.49

15

FASTNER

82H-77223-00-00

$9.99

16

BOLT(6A1)

97095-05016-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

WASHER PLATE 829771780000

90201-05033-00

Unavailable

19

NUT, CAP

95307-05800-00

Unavailable

20

WASHER, SPECIAL

8L9-77116-00-00

Unavailable

21

WASHER, PLATE

90201-06045-00

Unavailable

22

CLAMP 2

8L0-77136-00-00

Unavailable
