Yamaha SR540P (SRV) 1990 SHROUD Diagram
#
1

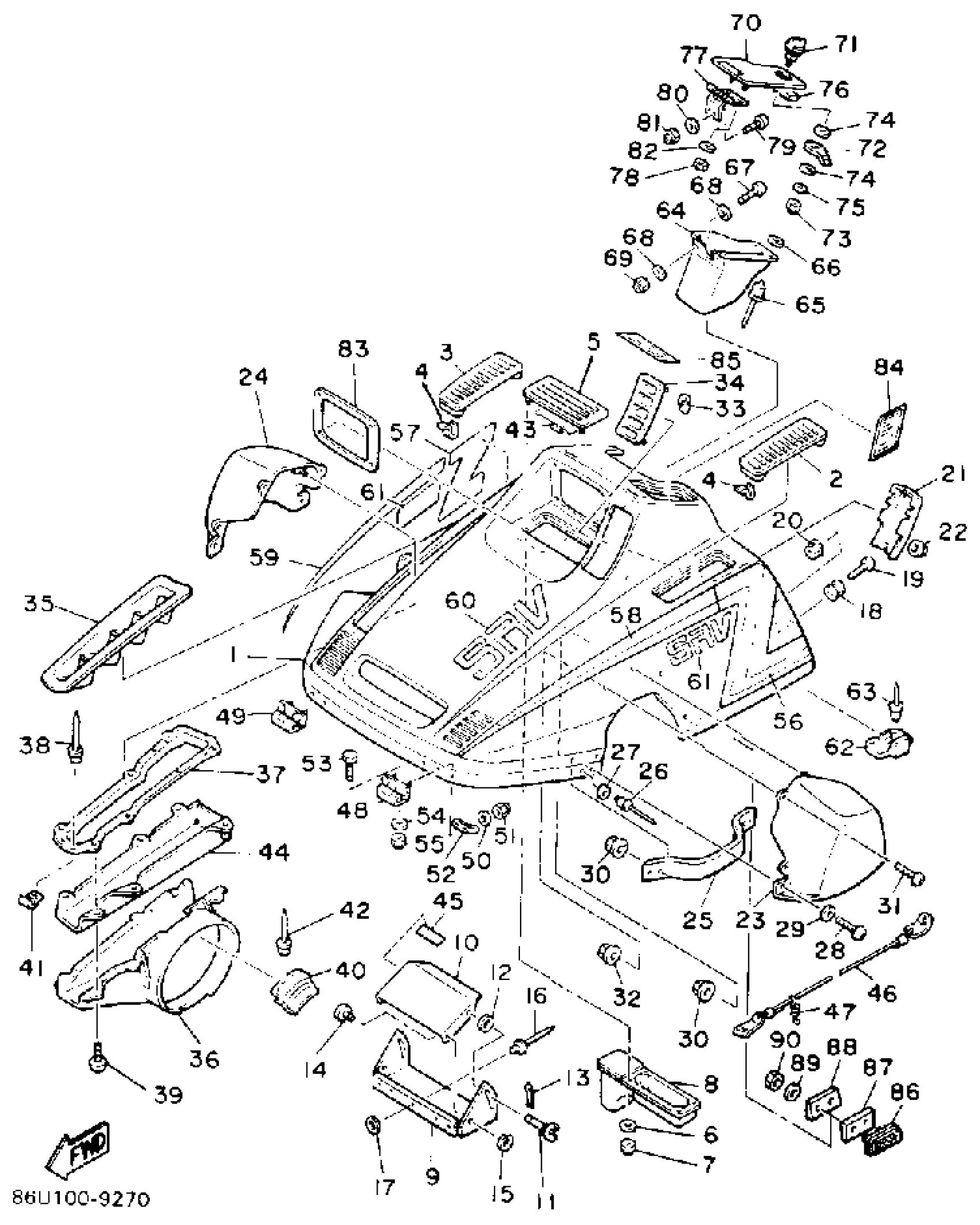

SHROUD ASSEMBLY
87U-W7711-00-00
Unavailable
2
LOUVER 3
8L9-77133-00-00
Unavailable
3
LOUVER 4
8L9-77134-00-00
Unavailable
4
CLIP
90468-05094-00
Unavailable
5
LOUVER 5 (83W-77109-00)
8L9-77109-00-00
Unavailable
6
WASHER, PLATE 8067717800
90201-05029-00
$8.49
7
NUT, NYLON
95707-05300-00
$4.24
8
INSULATOR
8K4-7712E-00-00
Unavailable
9
STAY 1
8Y0-77125-00-00
Unavailable
10
STAY 2
8Y0-77126-00-00
Unavailable
11
BOLT, WING(8W1)
90122-05022-00
$7.49
12
. WASHER, PLATE
90202-05088-00
Unavailable
13
CLIP 626412360000
90468-10004-00
Unavailable
14
PIN
90249-05187-00
Unavailable
15
CIRCLIP (EU0)
99080-04600-00
Unavailable
16
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
17
WASHER, PLATE
90201-04027-00
Unavailable
18
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
19
SCREW, BINDING
98907-06030-00
Unavailable
20
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
21
PLATE 1
8V8-77185-00-00
Unavailable
22
NUT, FLANGE
95707-04500-00
Unavailable
23
HOOD 1
8L0-77121-00-00
Unavailable
24
HOOD 2
8L0-77122-00-00
Unavailable
25
STAY 1
8L0-77125-00-00
Unavailable
26
RIVET (856)
90267-48014-00
Unavailable
27
WASHER, PLATE 8067717800
90201-05029-00
$8.49
28
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
29
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
30
NUT, W/ WASHER
95707-05600-00
Unavailable
31
SCREW, BINDING
98907-06016-00
Unavailable
32
NUT, W/ WASHER
95707-06600-00
Unavailable
33
CLIP
90468-05094-00
Unavailable
34
LOUVER 6
8V8-77108-00-00
Unavailable
35
LOUVER 1
80R-77131-00-00
Unavailable
36
DUCT
8V9-77194-00-00
Unavailable
37
PLATE, BACK UP 1
8V9-77153-00-00
Unavailable
38
RIVET, BLIND(8R6)
90267-40105-00
Unavailable
39
SCREW, BINDING
98907-06010-00
Unavailable
40
BUSH, RUBBER 1
8Y0-77515-00-00
Unavailable
41
CLIP
90468-05138-00
Unavailable
42
RIVET(81E)
90269-05055-00
Unavailable
43
PLATE 1
8Y0-77185-00-00
Unavailable
44
PLATE 2
8Y0-77186-00-00
Unavailable
45
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
46
STOPPER, SHROUD
8K4-77118-00-00
Unavailable
47
CLAMP,ROD
838-77159-00-00
Unavailable
48
HINGE ASSEMBLY
8L8-77140-00-00
Unavailable
49
HINGE ASSEMBLY 2
8L8-7714A-00-00
Unavailable
50
WASHER, PLATE
90201-067A6-00
Unavailable
51
NUT, NYLON
95707-06300-00
Unavailable
52
WASHER 1
8Y0-77525-00-00
Unavailable
53
BOLT(8CP)
97017-06014-00
Unavailable
54
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
55
NUT, NYLON
95707-06300-00
Unavailable
56
ORNAMENT 1
86P-77163-00-00
Unavailable
57
ORNAMENT 2
86P-77164-00-00
Unavailable
58
ORNAMENT 4
86P-77113-00-00
Unavailable
59
ORNAMENT 5
86P-77114-00-00
Unavailable
60
EMBLEM 5
86U-77355-00-00
Unavailable
61
EMBLEM 6
86U-77356-00-00
Unavailable
62
STOPPER
8K4-77188-00-00
Unavailable
63
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
64
LUGGAGE BOX
8K4-77391-00-00
Unavailable
65
RIVET, BLIND
90267-489UJ-00
Unavailable
66
WASHER, PLATE
90201-04027-00
Unavailable
67
SCREW, PAN
98517-06020-00
Unavailable
68
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
69
NUT, NYLON
95707-06300-00
Unavailable
70
COVER, LUGGAGE BOX
8L9-77392-00-00
Unavailable
71
KNOB
8L9-77324-00-00
Unavailable
72
LEVER, ARM FITTING
8K4-77328-00-00
Unavailable
73
NUT, NYLON
95707-05300-00
$4.24
74
WASHER, PLAIN(735)
90201-10119-00
Unavailable
75
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
76
DAMPER 2
8K4-77374-00-00
Unavailable
77
HINGE ASSEMBLY
8K4-77470-00-00
Unavailable
78
NUT, CAP
95307-05800-00
Unavailable
79
SCREW, PAN HEAD
90157-05M19-00
Unavailable
80
WASHER, PLATE 8067717800
90201-05029-00
$8.49
81
NUT, NYLON
95707-05300-00
$4.24
82
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
83
TRIM 1
8K4-77165-00-00
Unavailable
84
INDICATOR 3
8U7-77743-00-00
Unavailable
85
LABEL, WARNING 1
87U-77761-00-00
Unavailable
86
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
87
BASE, REFLECTOR 2
87K-8511E-00-00
Unavailable
88
BASE, REFLECTOR 3
87K-8511F-00-00
Unavailable
89
WASHER, PLAIN (646)
92990-05600-00
Unavailable
90
NUT, NYLON
95707-05300-00
$4.24
