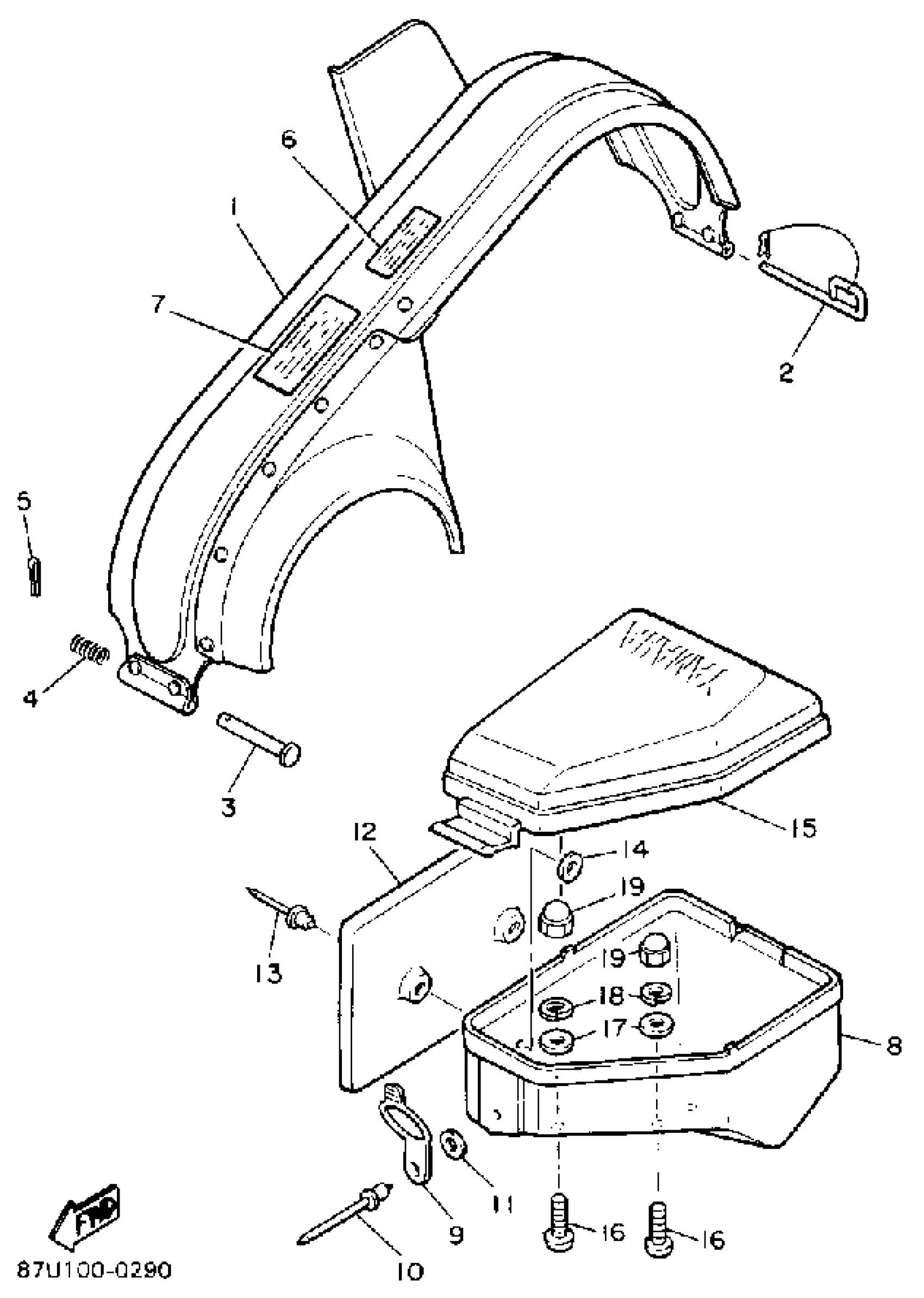

Yamaha SR540P (SRV) 1990 GUARD - LUGGAGE BOX Diagram

#

Description
Price

1

GUARD, DRIVE

8R6-77311-02-00

Unavailable

2

SHAFT

8F3-77327-00-00

Unavailable

3

PIN(8E7)

91701-06082-00

$5.60

4

SPRING, COMPRESSION

90501-08661-00

Unavailable

5

CLIP

90468-18008-00

Unavailable

6

LABEL, WARNING 2

8R6-77762-00-00

Unavailable

7

LABEL, WARNING 1

8R6-77761-00-00

Unavailable

8

BOX, TOOL

8N8-77381-00-00

Unavailable

9

HOOK 1

8K4-77386-00-00

Unavailable

10

RIVET, BLIND (8R6)

90267-48086-00

$4.14

11

WASHER, PLATE

90201-04027-00

$3.02

12

PROTECTOR

8N8-77373-00-00

Unavailable

13

RIVET, BLIND (8K2)

90267-48079-00

$3.50

14

WASHER, PLATE

90201-04027-00

$3.02

15

LID, TOOL BOX

8N8-77382-00-00

Unavailable

16

SCREW, BINDING

98907-06014-00

Unavailable

17

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

NUT(4MY)

95307-06800-00

Unavailable
