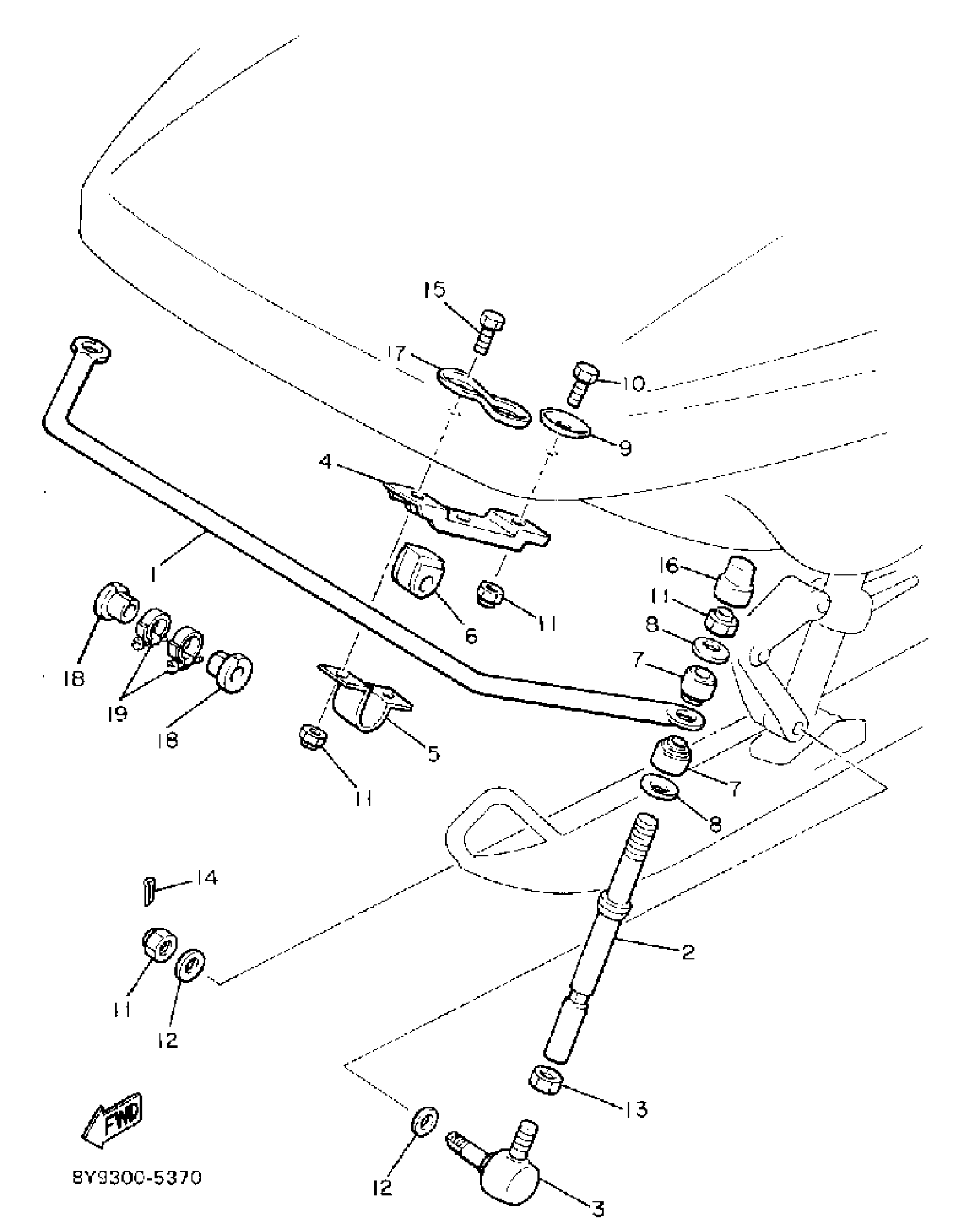

Yamaha SR540M (SRV) 1988 STABILIZER KIT (OPTIONAL) Diagram

#

Description

Price

1

STABILIZER KIT-SRV (8L9-W0051-00)

8U7-W0051-00-00

Unavailable

2

LINK, STABLZR FRONT

8L9-2386F-10-00

Unavailable

3

JOINT, UNIVERSAL 1

8L9-23841-10-00

Unavailable

4

BRACKET 15

8L9-23896-10-00

Unavailable

5

COVER, STABLZR FRT

8M6-2386H-10-00

Unavailable

6

BUSH, STABLZR FRONT

8L9-2386G-10-00

Unavailable

7

CUSHION

8L9-2386J-10-00

Unavailable

8

RETAINER

8L9-2386K-10-00

Unavailable

9

WASHER

8L9-23779-10-00

Unavailable

10

BOLT, HEXAGON

(97306-10020-00)

Unavailable

11

NUT, NYLON

95707-10300-00

$8.49

12

WASHER, PLATE (8M6)

90201-115A7-00

$4.56

13

NUT (3WP1)

95317-10700-00

$8.49

14

PIN, COTTER

91490-20025-00

$1.99

15

BOLT, HEXAGON

(97306-10025-00)

Unavailable

16

CAP 2

8L9-23742-10-00

Unavailable

17

PLATE

8L9-23774-10-00

Unavailable

18

BUSH, STABILIZER

8U7-2386N-10-00

Unavailable

19

HOSE CLAMP ASSY(4JT)

90450-28073-00

Unavailable
