SECONDARY SHEAVE

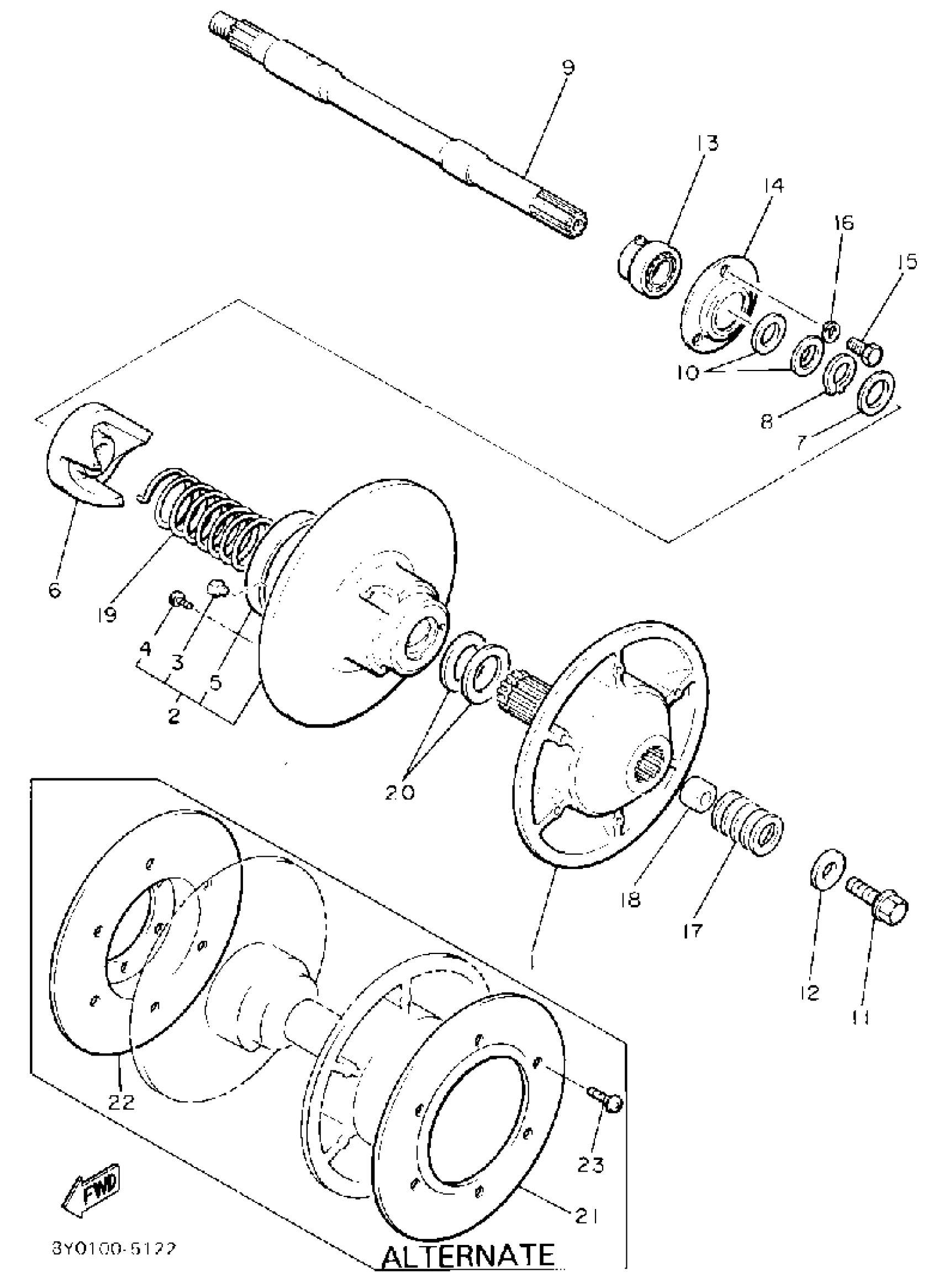

Yamaha SR540M (SRV) 1988 SECONDARY SHEAVE Diagram
#
1
SECONDARY FIXED SHEAVE COMP.
89N-17660-00-00
Unavailable
2
SEC.SLIDING SHEAVE
80R-17670-01-00
Unavailable
2
SEC SLIDING SHEAVE
81G-17670-10-00
Unavailable
3
SHOE RAMP
8X6-17688-00-00
$8.49
4
SCREW, BINDING
98907-06012-00
$9.49
5
BUSH, BIMETAL FORMED (90384-90081-00)
90380-90117-00
Unavailable
5
BUSH, BIMETAL FORMED (90384-90081-00)
90380-90117-00
Unavailable
6
SEAT, SEC SPRING
8U7-17684-01-00
Unavailable
6
SEAT, SECONDARY SPRING
8V0-17684-00-00
Unavailable
7
WASHER, PLATE
90201-34684-00
Unavailable
8
CIRCLIP(86F)
93440-34170-00
$8.49
9
SHAFT, SECONDARY
82M-17681-00-00
Unavailable
10
WASHER, PLATE (8R6)
90201-252F1-00
$8.49
10
WASHER, PLATE (888)
90201-25526-00
$9.49
10
WASHER, PLATE (888)
90201-25527-00
$10.49
11
BOLT, WASHER BASED
90105-14175-00
Unavailable
12
WASHER, PLATE
90201-140A6-00
Unavailable
13
BEARING
888-17678-00-00
Unavailable
14
HOUSING, BEARING
8K4-47631-01-00
Unavailable
15
BOLT, HEXAGON
97017-08016-00
Unavailable
16
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
17
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
17
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
18
COLLAR
90387-147A8-00
Unavailable
19
SPRING, TORSION (8U7)
90508-50571-00
Unavailable
20
WASHER, PLATE (8U9)
90201-345G2-00
Unavailable
21
PLATE 1
81H-17665-01-00
Unavailable
22
PLATE 2
81H-17675-01-00
Unavailable
23
GASKET, EXHAUST
98507-05008-00
Unavailable
