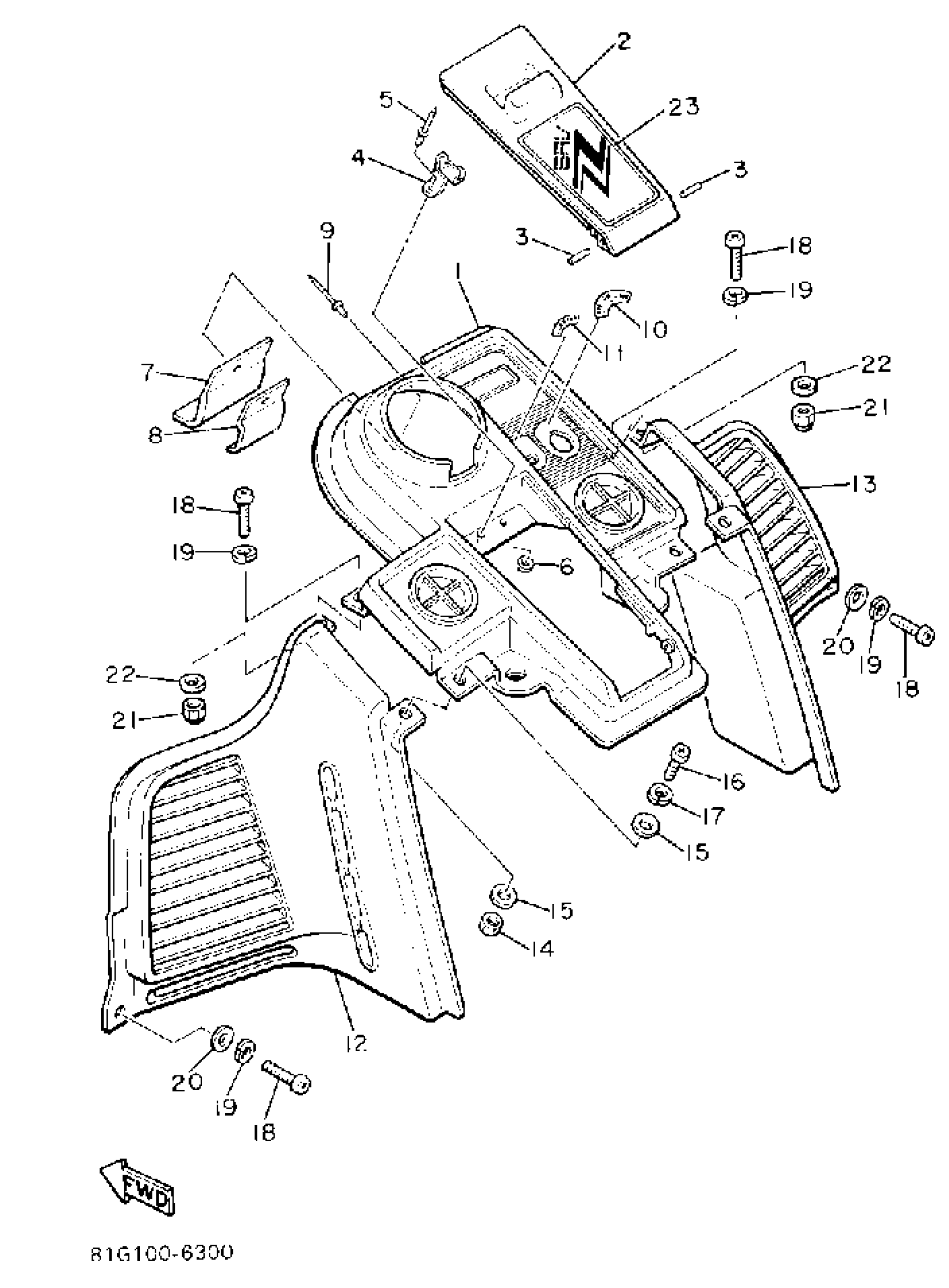

Yamaha SR540M (SRV) 1988 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL,INSTRUMENT

8Y0-77711-00-00

Unavailable

2

PANEL, INSTRUMENT

8K4-77712-00-00

Unavailable

3

PIN, HINGE

8K4-77477-00-00

Unavailable

4

SPRING, SEAT BACK

821-24794-01-00

Unavailable

5

RIVET, BLIND (2YK)

90267-32146-00

$7.49

6

WASHER, PLATE 8077743700

90201-03313-00

$9.49

7

STRIP, WEATHER 1

8K4-77161-00-00

Unavailable

8

PLATE 1

8K4-77185-00-00

Unavailable

9

RIVET (856)

90267-48014-00

$4.88

10

INDICATOR 1

8K2-77741-01-00

Unavailable

11

INDICATOR 2

8K4-77742-00-00

Unavailable

12

LOUVER 1

8K4-77131-00-00

Unavailable

13

LOUVER 2

8K4-77132-00-00

Unavailable

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

WASHER, PLATE 8221447500

90201-06057-00

$5.60

16

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

17

WASHER, SPRING

92907-06100-00

Unavailable

18

SCREW, PAN

98517-06020-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

WASHER, PLATE

90201-06086-00

Unavailable

21

NUT, SELF-LOCKING

95617-06100-00

Unavailable

22

WASHER, PLATE

90201-06045-00

Unavailable

23

ORMNT, INSTR PNL 1PANEL 1

81G-77715-00-00

Unavailable

24

DUCT

8V9-14437-00-00

Unavailable

25

LOUVER

8V9-14478-00-00

Unavailable

26

DAMPER

8V9-14409-00-00

Unavailable

27

NUT(1UX)

90179-05525-00

Unavailable

28

SCREW, BINDING (8J0)

90154-05005-00

Unavailable
