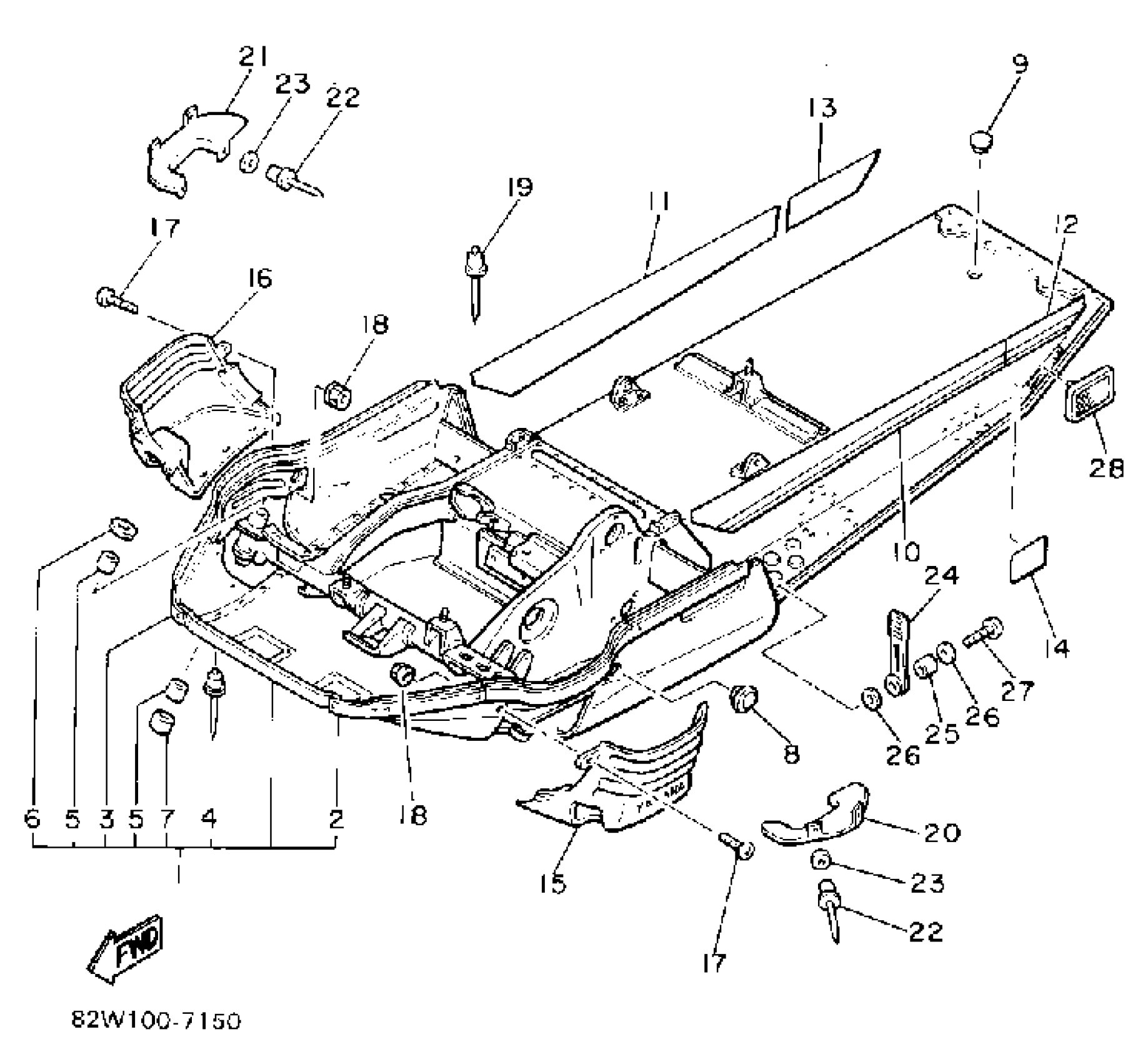

Yamaha SR540M (SRV) 1988 FRAME Diagram
#
1
FRAME
8Y0-21910-00-00
Unavailable
2
. HOOD 1
8U7-21982-00-00
Unavailable
2
. HOOD 1
8U7-21982-10-00
Unavailable
3
. HOOD 2
8U7-21983-00-00
Unavailable
3
. HOOD 2
8U7-21983-10-00
Unavailable
4
RIVET, BLIND
90267-48060-00
$8.49
5
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
6
OIL SEAL (8M6)
93102-36232-00
$11.49
7
OIL SEAL (8M6)
93103-36117-00
$21.99
8
PLUG (8K4)
90338-40099-00
$13.99
9
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
10
EMBLEM 1
81G-77351-00-00
Unavailable
11
EMBLEM 2
81G-77352-00-00
Unavailable
12
EMBLEM 3
81G-77353-00-00
Unavailable
13
EMBLEM 4
81G-77354-00-00
Unavailable
14
INDICATOR 2
8K2-77742-00-00
Unavailable
15
COVER 1
8L0-2198F-00-00
Unavailable
16
COVER 2
8L0-2198G-00-00
Unavailable
17
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
18
NUT, W/ WASHER
95707-05600-00
Unavailable
19
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
20
SHIELD, NOISE
8L9-2199F-00-00
Unavailable
21
SHIELD, NOISE 2
8L9-2199J-00-00
Unavailable
22
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
23
WASHER, PLATE
90201-04027-00
Unavailable
24
BODY, LATCH 1
8M6-77171-00-00
Unavailable
25
COLLAR (420)
90387-06241-00
Unavailable
26
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
27
SCREW, BINDING
98907-06030-00
Unavailable
28
REAR REFLECTOR ASSY
81G-85130-00-00
Unavailable
