Description

Price

1

BRACKET, ENGINE 1

8K4-21411-00-00

Unavailable

2

BRACKET,ENGINE 2

99999-02583-00

Unavailable

3

BRACKET, ENGINE 3

8K4-21429-00-00

Unavailable

4

DAMPER 2

8N8-21486-00-00

Unavailable

5

DAMPER 2

8V9-21486-00-00

Unavailable

6

DAMPER, RUBBER 1

8V9-21485-00-00

$24.99

7

BOLT, FLANGE(4GB)

95817-10045-00

$6.99

8

BUSH, SOLID (8V9)

90380-10129-00

Unavailable

9

WASHER, PLATE (8V9)

90201-257G7-00

Unavailable

10

WASHER (888)

90201-10151-00

Unavailable

11

WASHER, PLATE (856)

90201-10321-00

$8.49

12

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

13

NUT, FLANGE(3BM)

95704-10500-00

$4.29

14

BRACKET, FRONT LOWER 1

8AT-21417-00-00

$35.99

15

BRACKET, FRONT UNDER 2

8H8-21418-01-00

Unavailable

16

BRACKET, REAR LWR 1

8K4-21427-00-00

Unavailable

17

CLAMP (3Y2)

90464-16039-00

Unavailable

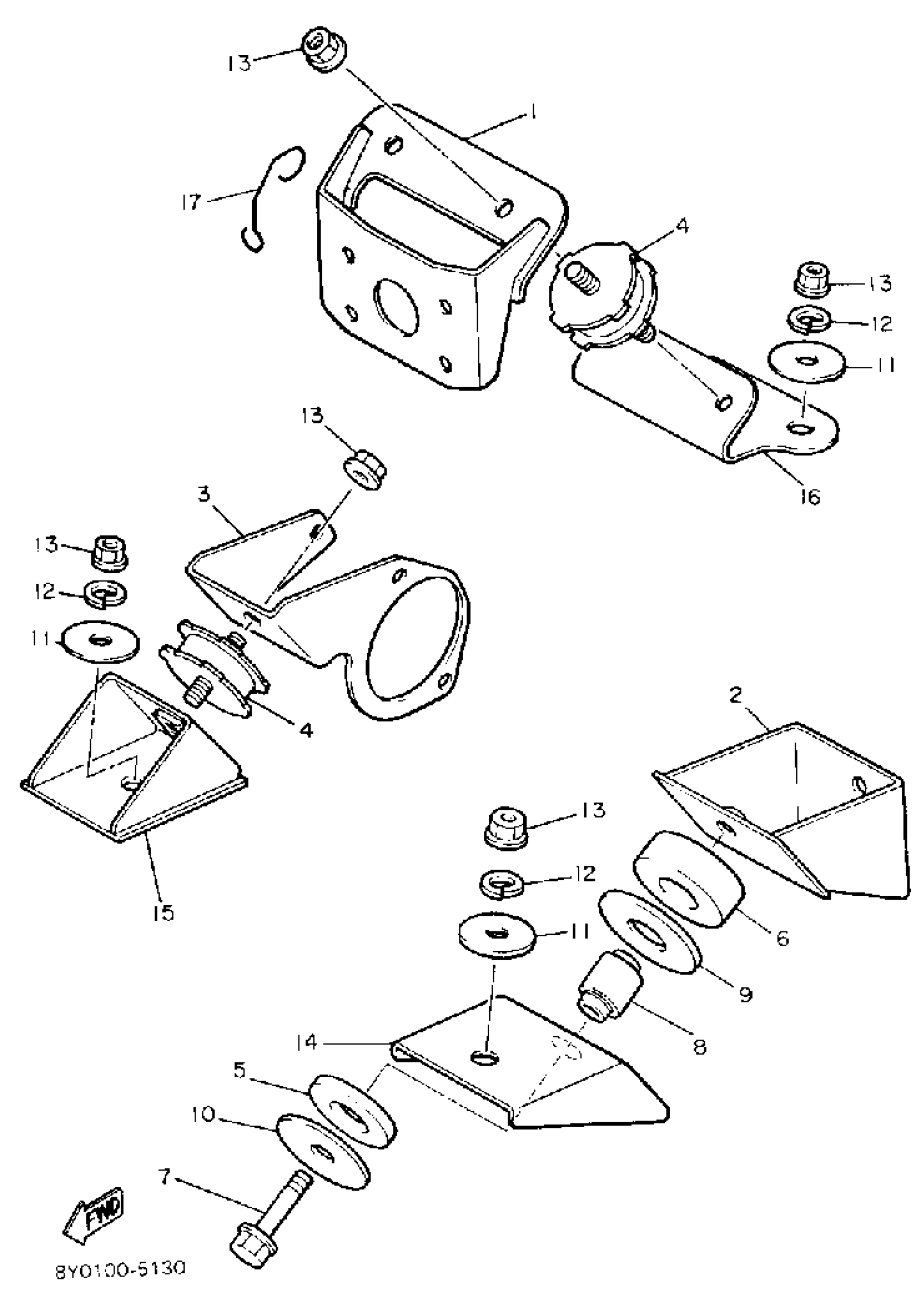

Yamaha SR540M (SRV) 1988 ENGINE BRACKET Diagram

BRACKET, ENGINE 1

BRACKET,ENGINE 2

BRACKET, ENGINE 3

DAMPER 2

DAMPER 2

DAMPER, RUBBER 1

BOLT, FLANGE(4GB)

BUSH, SOLID (8V9)

WASHER, PLATE (8V9)

WASHER (888)

WASHER, PLATE (856)

YBS67-10 WASHER, SPRING

NUT, FLANGE(3BM)

BRACKET, FRONT LOWER 1

BRACKET, FRONT UNDER 2

BRACKET, REAR LWR 1

CLAMP (3Y2)
