TRACK DRIVE 2

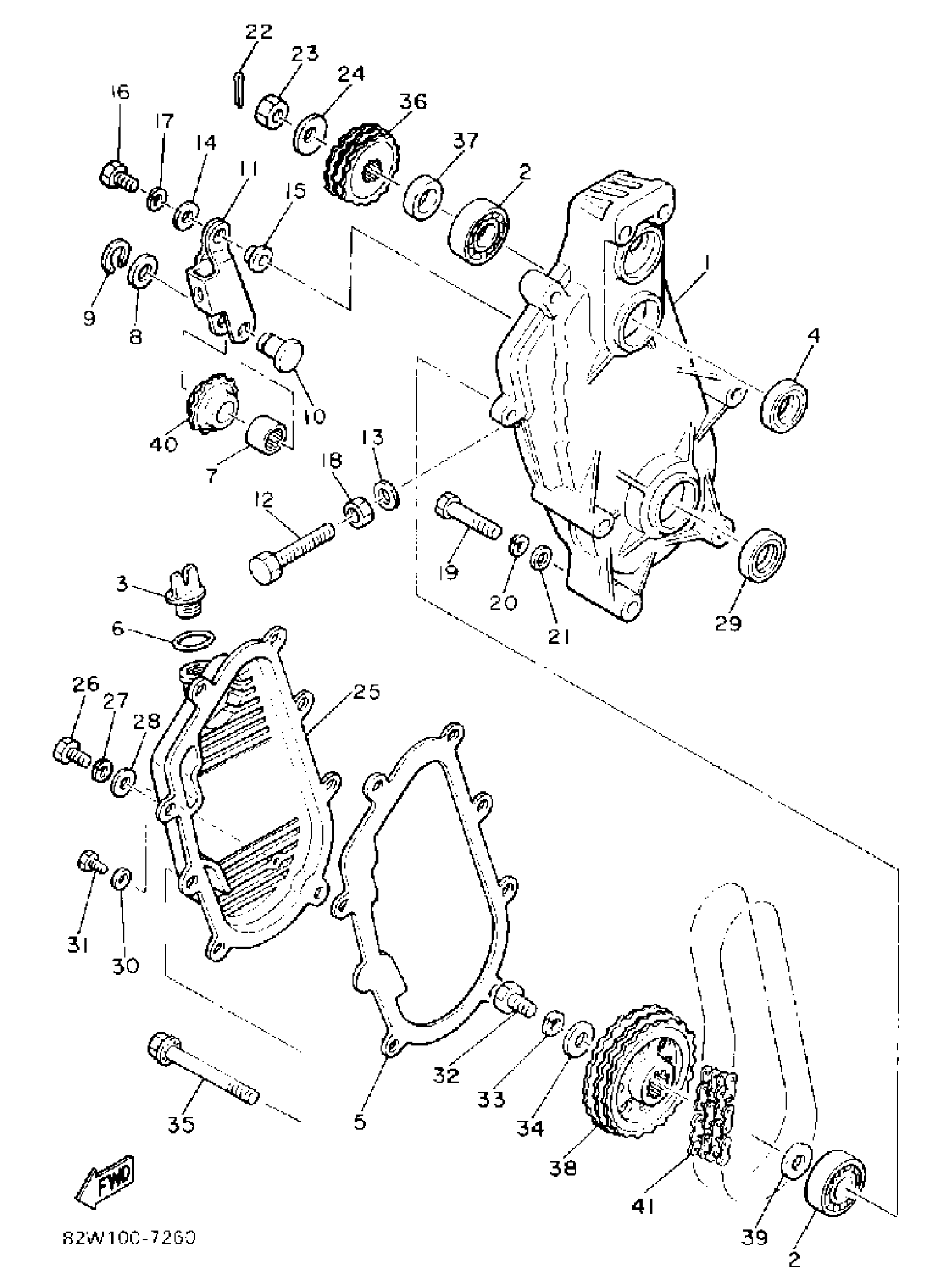

Yamaha SR540L (SRV) 1987 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN (8L9-47541-00-00)
99999-02203-00
Unavailable
2
BEARING (80N)
93306-20570-00
Unavailable
3
PLUG, OIL
3Y1-15363-10-00
$18.49
4
OIL SEAL (8K4)
93102-27204-00
$16.99
5
GASKET
86M-47592-01-00
Unavailable
6
O-RING (646)
93210-19123-00
Unavailable
7
BRG,CYL-CAL ROLLER 11G KY
93315-21227-00
$45.99
8
WASHER, PLATE (583)
90201-12631-00
$9.49
9
CIRCLIP(10Y)
99009-12400-00
$3.59
10
PIN, SPECL SHAPE
90249-12135-00
Unavailable
11
HOLDER
8K4-47613-00-00
Unavailable
12
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
13
WASHER SEAL 256111730200
90210-10004-00
$4.77
14
WASHER, PLAIN
92990-08200-00
Unavailable
15
COLLAR (8K4)
90387-08301-00
Unavailable
16
BOLT, HEXAGON
97017-08025-00
Unavailable
17
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
18
NUT (682)
95380-10700-00
Unavailable
19
BOLT
97021-08065-00
Unavailable
20
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
21
.. WASHER, PLATE
92990-08600-00
Unavailable
22
PIN, COTTER
91490-30030-00
Unavailable
23
NUT, HEXAGON (8F3)
90170-20211-00
Unavailable
24
WASHER (853)
90208-20008-00
Unavailable
25
CAP, HOUSING
82M-47543-00-00
Unavailable
26
BOLT, HEXAGON
97017-06030-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
WASHER, PLAIN (646)
92990-06600-00
Unavailable
29
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
30
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
31
BOLT(3JP)
97017-06010-00
Unavailable
32
BOLT(6TD)
97017-10025-00
Unavailable
33
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
34
WASHER PLATE (3L6)
90201-10742-00
Unavailable
35
BOLT, FLANGE
95817-08090-00
Unavailable
36
SPRKT, CHAIN DR 20T (20T)
829-17682-00-00
Unavailable
36
SPRKT, CHAIN DR 15T (878-17682-50) (15T)
829-17682-50-00
Unavailable
36
SPRKT, CHAIN DR 16T (16T)
829-17682-60-00
Unavailable
36
SPRKT, CHAIN DR 17T (17T)
829-17682-70-00
Unavailable
36
SPRKT, CHAIN DR 18T (18T)
829-17682-80-00
Unavailable
36
SPRKT, CHAIN DR 19T (878-17682-90) (19T)
829-17682-90-00
Unavailable
36
SPROCKET, CHAIN DR (878-17693-10) (21T)
8U9-17693-10-00
Unavailable
36
SPROCKET, CHAIN DR (878-17693-20) (22T)
8U9-17693-20-00
Unavailable
37
COLLAR
90387-25798-00
Unavailable
38
SPROCKET,CHN DRVN
8U9-47548-90-00
Unavailable
38
SPROCKET, CHN DRVN (31T)
8U9-47587-00-00
Unavailable
38
SPROCKET, CHN DRVN (31T)
8U9-47587-00-00
Unavailable
38
SPROCKET, CHN DRVN (888-47587-00) (33T)
8U9-47587-10-00
Unavailable
39
WASHER, PLATE (888)
90201-25526-00
Unavailable
40
WHEEL
8L0-47612-00-00
Unavailable
41
CHAIN
94890-05064-00
Unavailable
41
CHAIN
94890-05066-00
Unavailable
41
CHAIN
94890-05068-00
Unavailable
41
CHAIN
94890-05070-00
Unavailable
