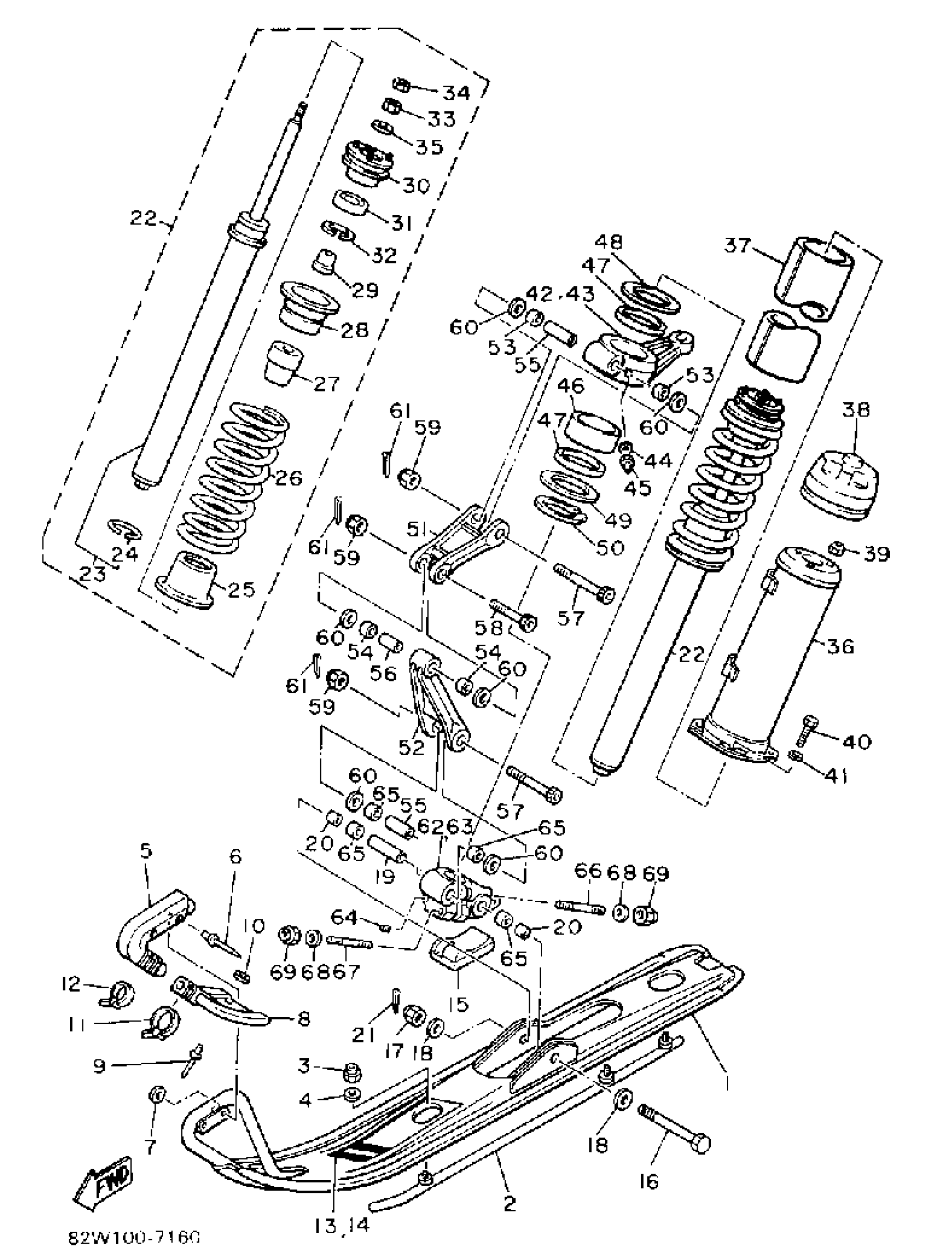

Yamaha SR540L (SRV) 1987 SKI Diagram
#
1
SKI COMP. 1
86M-23710-00-00
Unavailable
2
SKI RUNNER, 1
82W-23731-01-XX
Unavailable
3
NUT, U
95617-08100-00
$9.49
4
.. WASHER, PLATE
92990-08600-00
Unavailable
5
PROTECTOR, SKI
8M6-23747-00-00
Unavailable
6
RIVET, BLIND
90267-40029-00
$8.49
7
WASHER, PLATE
90201-042E0-00
$7.49
8
PROTECTOR, SKI 2
8V0-23748-00-00
Unavailable
9
RIVET, BLIND (8V0)
90267-40110-00
$12.49
10
WASHER, PLATE
90201-042E0-00
$7.49
11
BAND
1UA-82591-00-00
$4.78
12
BAND
1UA-82591-00-00
$4.78
13
EMBLEM 10
81H-77365-00-00
Unavailable
14
EMBLEM 11
81H-77366-00-00
Unavailable
15
STOPPER 1
82M-23743-00-00
Unavailable
16
BOLT, WITH HOLE
90102-10040-00
Unavailable
17
NUT, NYLON
95707-10300-00
Unavailable
18
WASHER(6TA)
92907-10600-00
Unavailable
19
COLLAR 802473690000
90387-10090-00
Unavailable
20
UNAVAILABLE IN PRICE BOOK
90387-109R6-00
Unavailable
21
PIN, COTTER
91490-20025-00
Unavailable
22
ABSORBER ASSEMBLY 1
8L9-2376A-00-00
Unavailable
23
. DAMPER SUB-ASSEMBLY
8L9-22401-00-00
Unavailable
24
. CIRCLIP, OUTER
93440-36087-00
Unavailable
25
. SEAT, SPRING 2
8L9-23777-00-00
Unavailable
26
SPRING, COMPRESSION (8L9)
90501-75612-00
Unavailable
27
. BUMP, STOP
8L0-22493-00-00
Unavailable
28
PLATE, BACK UP
8AB-23788-00-00
Unavailable
29
. COLLAR
90387-100A5-00
Unavailable
30
. HOLDER, BEARING
8L0-2376H-00-00
Unavailable
31
BEARING(3DL)
93306-20226-00
Unavailable
32
CIRCLIP(47Y)
99009-35500-00
Unavailable
33
. NUT
90170-08220-00
Unavailable
34
NUT(6L2)
95333-08600-00
Unavailable
35
WASHER, PLATE (4W3)
90201-086A3-00
Unavailable
36
HOLDER, ABSORBER
8L9-2376J-00-00
Unavailable
37
PROTECTOR
8L0-2376R-00-00
Unavailable
38
PROTECTOR 3
8M6-77553-00-00
Unavailable
39
NUT, SELF-LOCKING
95617-06100-00
Unavailable
40
BOLT, HEXAGON
97017-06020-00
Unavailable
41
WASHER, SPRING
92995-06100-00
Unavailable
42
ARM, OUTSIDE 1
8U7-23851-00-00
Unavailable
43
ARM, OUTSIDE 2
8U7-23852-00-00
Unavailable
44
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
45
NIPPLE, GREASE
93700-06M03-00
Unavailable
46
BUSH, BIMETAL FORMED (8U7)
90384-53175-00
Unavailable
47
OIL SEAL (8U7)
93109-53036-00
Unavailable
48
WASHER, PLATE (8L9)
90201-536A1-00
Unavailable
49
WASHER, PLATE(8W1)
90201-535H6-00
Unavailable
50
CIRCLIP (8L9)
93410-52061-00
Unavailable
51
ARM, FRONT 1
8L0-2382E-01-00
Unavailable
52
ARM, FRONT 2
8L0-2382F-00-00
Unavailable
53
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
54
BUSH, BIMETAL FORMED (8L0)
90384-14096-00
Unavailable
55
COLLAR(89A)
90387-101Y9-00
Unavailable
56
COLLAR (8L0)
90387-100A4-00
Unavailable
57
BOLT, WITH HOLE (8L0)
90102-10039-00
Unavailable
58
BOLT, WITH HOLE
90102-10038-00
Unavailable
59
NUT, NYLON
95707-10300-00
Unavailable
60
WASHER PLATE 626441260000
90202-14037-00
Unavailable
61
PIN, COTTER
91490-20025-00
Unavailable
62
BRACKET, 1 (L.H)
8L9-2376E-00-00
Unavailable
63
BRACKET 2 (R.H)
8L9-2377E-00-00
Unavailable
64
BOLT, SET (8K2)
90113-06039-00
Unavailable
65
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
66
BOLT, STUD
90116-08323-00
Unavailable
67
BOLT, STUD 3
95617-08640-00
Unavailable
68
.. WASHER, PLATE
92990-08600-00
Unavailable
69
NUT, NYLON
95717-08300-00
Unavailable
